A basic wiring plan for a bathroom includes a 20-amp, GFCI-protected circuit for the receptacles and a 15-amp general lighting circuit for the switches, light fixtures, and vent fan.

Can you have a 15 amp GFCI in bathroom?

Kitchens and bathrooms should always have 20 amp gfci outlets. However, you must be using number 12 wire for 20 amp gfci or regular outlets If your wiring is number 14 guage then use a 15 amp. So, the wire size and breaker size together should be rated for 20 amps!

How do I know if I need 15 or 20 amp GFCI?

Tip: The easiest way to determine whether a circuit is 15 or 20 amps is to look at the corresponding breaker or fuse in the breaker panel. Dedicated circuits are electrical lines that carry an electrical current to one single outlet.

Do I need 15 or 20 amp outlets in bathroom?

The minimum requirement for outlet receptacles in a bathroom is one GFCI-protected receptacle served by a 20-amp circuit. This is a bare minimum, however, and most bathrooms will have at least two receptacles, and often as many of four or five.

Can a bathroom have a 15 amp circuit?

Important NEC Bathroom Regulations General lighting/fan circuit required: Each bathroom should have a circuit for lighting and an exhaust fan. According to the Code, this circuit may be a 15-amp circuit if it serves just lighting, but it should be a 20-amp circuit if it is also serving a vent fan.

Can I replace a 15 amp GFCI with a 20 amp GFCI?

Yes, it’s safe to replace a 15-amp GFCI outlet with a 20-amp GFCI outlet. In the US most outlet circuits are 20 amps, and a 20-amp GFCI will allow the full rated current of the circuit at the outlet.

What kind of GFCI do I need for a bathroom?

The National Electric Code states that, at a minimum, a bathroom needs one GFCI-protected outlet. It’s recommended that each bathroom has two or three GFCI protected outlets. The number of outlets you choose to protect is up to you, as long as you have at least one GFCI protected outlet in a bathroom.

What is the difference between a 15 amp GFCI and a 20 amp GFCI?

There are different pin configurations for 15a and 20a receptacles. A 20a receptacle has one slot that is turned sideways or T shaped to allow a 20amp plug to be used. A 15amp receptacle won’t overload the circuit.

Can GFCI be 15 amp?

According to National Electrical Code, only a 15-amp or 20-amp electrical receptacle can be installed to a 20-amp circuit. … However, a 20-amp GFCI outlet may not be installed to a 15-amp circuit. If you are looking to install a 15-amp outlet, make sure: The electrical receptacle is UL Listed.

Is 15 amp GFCI enough?

The amp rating of the receptacle and circuit do not depend on whether the receptacle is a GFCI or not: If you have a 15 amp circuit, you must have 15 amp receptacles. If you have a 20 amp circuit, you can either have 20 amp receptacles, or 15 amp receptacles if there is more than one (e.g. a duplex receptacle).

Article first time published on

What happens if you put a 15 amp GFCI outlet on a 20 amp circuit?

No – it does not. Per the UL Safety Standards for 15 amp receptacles and 15 amp GFCI receptacles, 15 amp receptacles must be designed to allow for the pass-through of 20 amp circuits, so wiring a 15 amp receptacle on a 20 amp circuit has no impact here.

What happens when you put a 20 amp receptacle on a 15 amp circuit?

There are no physical complications preventing you from installing a 20 amp outlet on a 15 amp circuit. You might argue that a 20 amp outlet will cause an overload. But receptacles don’t draw power. Unless you plug an appliance into its slots, a 20 Amp receptacle on a 15 amp circuit is completely harmless.

Can 15 amp outlets be used on 20 amp circuit?

15 Amp Circuits The wire has a rating that allows it to carry up to 20 amps. In most home installations, several 15-amp receptacles connect to a 20-amp circuit breaker. This allows multiple devices to connect to a single 20-amp circuit as long as the total circuit load does not exceed 20 amps.

Do bathroom switches need to be GFCI protected?

Do All Outlets in a Bathroom Need to Be GFCI? As mentioned above, GFCI protection is required for any electrical outlets or switches that are in the area where you could get wet while using your bathroom. This includes the bathtub area, sink area, and shower stall.

Does a bathroom exhaust fan need to be on a GFCI?

Although the National Electrical Code (NEC) does not have a requirement for a bathroom exhaust fan to be GFCI protected, it is often specified by the manufacturer in the installation instructions when the fan is over a tub or shower. … The GFCI protection is usually provided by a GFCI breaker in the panel.

Do all outlets in a bathroom need to be GFCI?

Bathrooms – All bathroom receptacles should have GFCI outlets installed. … Any outlets within six feet of this sink (and the dedicated washing machine outlet) should be equipped with GFCI outlets. Outside – All outlets installed outside of your home should be GFCI outlets.

How many GFCI do I need in my bathroom?

According to the National Electric Code (NEC), it requires a minimum of one GFCI-protected outlet per bathroom. The national recommendation is more than one, like two or three. You get to decide how many outlets you want to protect but have to have a minimum of one in your bathroom.

Do bathroom outlets need to be arc fault protected?

AFCI protection is not required for outlets located outside or in garages or bathroom areas. … 210.12(A), (B), or (C), it must be AFCI protected. Exception: AFCI protection is not required for extension wiring that is less than 6 ft long (raceway or cable) if no outlets or devices are added (other than splicing devices).

What is a 15 amp GFCI used for?

They are commonly used for lighting purposes. Places that require 15A outlets should be used to accommodate 15A GFCIs. You shouldn’t install a 15A GFCI in the kitchen when kitchens clearly require 20A receptacles. On the other hand, you are free to add 20A receptacles to places that require 15A outlets.

At what amperage should a GFCI trip?

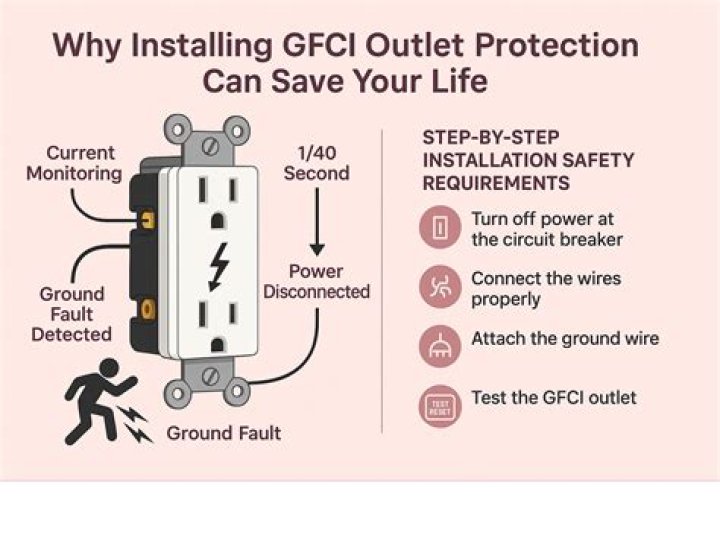

If current from the line does not return to the neutral (i.e. goes to ground instead), the GFCI will trip (power will be turned off coming out of the GFCI). It takes a mismatch of about 5 mA of current (5 milliamps or . 005 A) to trip a GFCI.

How many amps does a garbage disposal use?

One Horsepower garbage disposals draw 16 Amps You’re probably wondering what size breaker you will need or what the different horsepowers mean for performance. Keep reading to learn about the electrical requirements needed to install a garbage disposal in your home.

How many amps does a microwave use?

The microwave ovens consume power at a rate of 650– 1200 watt, which equates to a current of around 10 Amps.

Can the outlets in a bathroom be on the same circuit as the lights?

No lighting outlets or other equipment can be fed from the same circuit feeding the bathroom receptacles. For example, a one-family dwelling has two bathrooms and a duplex receptacle has been installed in each. One 20-ampere branch circuit can supply power to both bathroom receptacles but cannot feed anything else.

Does a light above a shower need to be GFCI protected?

A. Master electrician Sean Kenney responds: The short answer is yes. Although the NEC does not require either the switch or the light fixture to be GFCI-protected, most lighting fixtures designed for use in a shower stall require GFCI protection to meet UL requirements.

Do bathrooms need special light switches?

The NEC requires that switches not be installed within the confines of shower and tub areas, unless as part of a shower assembly.
