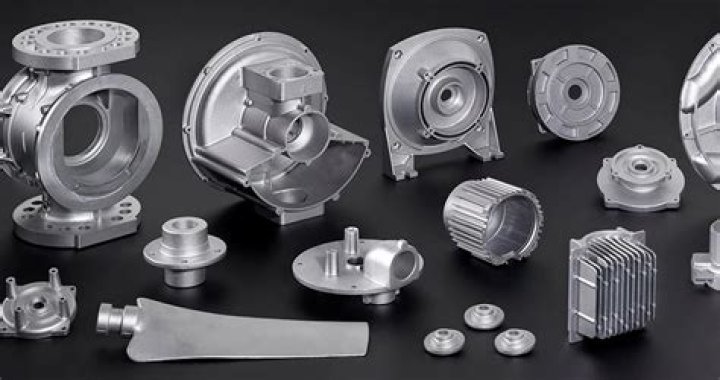

Aluminum withstands good corrosion resistance and mechanical properties as well as high thermal and electrical conductivity, making it a good alloy for die casting. … The Aluminum Die Casting process retains a durable strength at very high temperatures, requiring the use of cold chamber machines.

How much does it cost to die cast aluminum?

VS. Kinetic Die Casting Tooling Cost. Aluminum sand cast tooling costs from $500 to $7,500 depending on size and complexity of the aluminum casting part life is 5,000 parts. Aluminum die casting tooling costs from $5,000 to $75,000 depending on size and complexity of the aluminum die cast part.

What is gravity die casting?

Gravity Die Casting is a permanent mould casting process, where the molten metal is poured from a vessel or ladle into the mould. The mould cavity fills with no force other than gravity, filling can be controlled by tilting the die.

What is the process of die casting?

Die casting is a metal casting process in which molten metal is forced into a steel mold under high pressure into a mold cavity. The steel molds, known as dies, are fabricated to produce castings with intricate shapes in a manner that insures both accuracy and repeatability.

Why is it called die casting?

Dies. The “die” is the term given to the actual tool steel mold that the liquid metal is poured into. … The fixed die half is attached to the stationary platen of the casting machine, whereas the ejector half is attached to the movable platen.

What is die casting equipment?

Die casting machine is used for the metal casting process, through which the molten metal is injected into the mold cavity, the shape of the die casting parts will be formed when the metal is cool and solidified, this is a manufacturing method to get metal castings like aluminum or zinc die castings.

What is the difference between die cast aluminum and cast aluminum?

Many everyday objects are made from cast aluminum. To cast a metal means to shape it by melting it then pouring it into a mold. As the metal cools and solidifies, it adopts the shape of the mold that surrounds it, and once it is completely cool it can be withdrawn. … One of these is called die casting.

What is the difference between sand casting and die casting?

The biggest and most obvious difference between the die and sand casting process is the materials used to form the molds. As we reviewed above, die casting uses a metal mold, while sand casting uses a mold made out of sand.

What are the types of die casting?

• Low-pressure die casting.
• Vacuum die casting.
• Squeeze die casting.
• Semi-solid die casting.

Is Aluminium casting expensive?

It’s relatively inexpensive in terms of materials and process. It’s suited to small and large components. It can be used for ferrous and non-ferrous metals. It reduces the amount of expensive, labour-intensive tooling required.

Article first time published on

Which is more expensive bronze or aluminum?

If it were just a matter of materials, the answer is easy – bronze is clearly more expensive and costs anywhere from 5x to 10x more than aluminum.

Is die casting fast?

Die casting is one of the most economical and quickest forming processes. The advantages of this production process are that hundreds of thousands of castings can be produced relatively quickly by using just one mold.

What is a die cast made of?

Most die castings are made from non-ferrous metals, specifically zinc, copper, aluminium, magnesium, lead, pewter, and tin-based alloys. Depending on the type of metal being cast, a hot- or cold-chamber machine is used.

What is GDC die?

Sometimes referred to as permanent mould, Gravity Die Casting (GDC) is a repeatable casting process used for non-ferrous alloy parts, typically aluminium, zinc and copper base alloys.

What is vacuum die casting?

Vacuum-assisted die casting is an important process capability at Kennedy Die Casting. The vacuum evacuation of the die cavity reduces gas entrapment during metal injection and decreases porosity in the casting. The result is a die casting with a higher level of quality. Vacuum systems are only a supplement.

What is pressure die casting used for?

Application. Cold chamber high pressure die casting technology is ideal for production of a diverse range of aluminium and magnesium automotive castings such as engine blocks, gearbox casings, oil sumps, engine mounts and structural parts like cross-car beams.

How is die cast metal made?

Die casting is a metal casting process that involves feeding molten nonferrous alloys into dies under high pressure and at high speed to rapidly create molded products. The main materials used in die casting are alloys of aluminum, magnesium and zinc.

Can stainless steel be die cast?

Die casting is suited to materials such as tin, lead, zinc, aluminium, magnesium to copper alloys and even iron alloys such as stainless steel.

What is flash in die casting?

Flash can be described as any unwanted, excess metal which comes out of the die attached to the cavity or runner. Typically it forms a thin sheet of metal at the parting faces.

How can you tell if a cast is die?

Because tolerances can be much tighter on a die casting, the wall thicknesses can be thinner; if the part looks ‘spindly’ it’s probably a die casting. Carburetors are a very common example of die castings. A.

Is cast Aluminium good for cooking?

Cooking Surfaces It is also more suited for cooking in the oven, as the cast aluminum model is oven safe only up to 335°F (170°C).

What metals are used in die casting?

Zinc, aluminum, and magnesium are the three main die casting alloys. They are normally non-ferrous and their mechanical properties vary greatly to fit almost every type of application a manufacturer may need. Not only can die cast alloys withstand high operating temperatures, but they are also fully recyclable.

Which of the following are the most suitable material for die casting?

• A. Iron.
• Copper.
• Steel.
• Nickel.

What is the difference between die casting and injection molding?

Although there are some variations in technique, the major difference between die casting and injection molding is that die casting uses some kind of metal, often an aluminum alloy, as the raw material, while injection molding uses plastic or polymers.

What steps would you take in a die casting die design?

• Clamping. – The first step is the preparation and clamping of the two halves of the die. …
• Injection. – The molten metal, which is maintained at a set temperature in the furnace, is next transferred into a chamber where it can be injected into the die. …
• Cooling. …
• Ejection. …
• Trimming.

Which of the following is made from die casting method?

Die Casting (Permanent Mold) These are: (1) permanent mold casting, also called gravity die casting, (2) low-pressure die casting, and (3) high-pressure die casting. The three processes differ mainly in the amount of pressure that is used to force the molten metal into the die.

Does diecast metal rust?

Aluminum, zinc, and magnesium are common metal materials used for die cast metal parts. While each metal type offers corrosion resistance, the levels of rust protection vary. Less common die cast metal includes brass, copper, or other specialty alloy materials.

Is die casting reusable?

Reuse. When a die casting die has finally reached the end of its useful lifespan, it doesn’t need to be discarded or even recycled. Instead, dies can be shipped to specialty mills for retooling to accommodate different, slightly larger products.

Why die casting is preferred?

Compared to sand casting, die casting produces parts that have thinner walls and smoother surfaces. They also have closer dimensional limits. Overall, the die casting process is much more economical than sand casting. The production is faster, finishing costs are lower, and significant overall savings are seen.

What are the disadvantages of casting?

• Dimensional accuracy: Because of shrinkage in the casting, the dimensional accuracy might be at risk. …
• Low strength: Due to high porosity compared to a machined part.
• Post-processing: It requires Secondary machining operations in order to improve the surface finish.

How much does it cost to diecast?

You as the customer must put up a large initial investment to purchase the tooling. Tooling prices can run anywhere from $15,000 to $150,000 (for Lakeshore Die Cast’s size range) depending on the size and complexity of the part.
