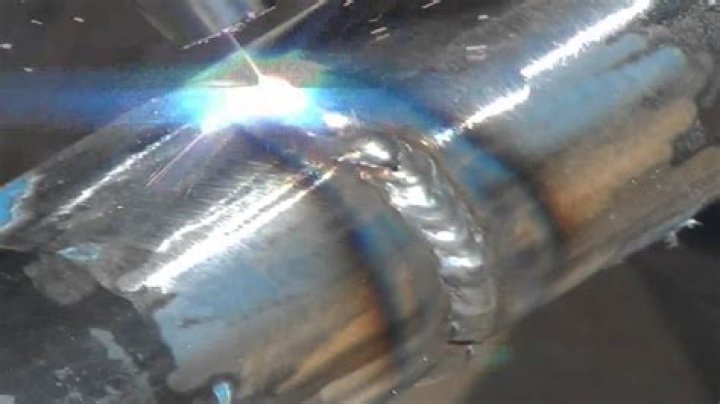

DOM will “mig” just fine. “tig” will make a stronger weld, but may not be necessary for your application. If a “roll cage” is what you have in mind be sure to “gusset” it generously….and you’ll be O.K.

Is DOM tubing weldable?

In comparison to other steel tubing, DOM tubing is transformed during the drawn over mandrel process with an end result that yields the highest weld strength possible.

Is DOM tubing stronger?

HREW vs DOM Steel Tubing The difference between the HREW (hot rolled electric welded) and DOM (drawn over mandrel) is strength. … This process creates a tube that has a yield strength of around 70ksi. The DOM is simply stronger, can take more punishment and is best suited for use against rocks.

Does DOM tubing have a weld seam?

In these cases, the tube will be cold drawn over a mandrel, bringing excellent dimensional tolerance and surface finish. Another major benefit of DOM materials is that they boast the strongest weld strength you can find. DOM products do have a seam, despite them sometimes mistakenly being labeled as seamless tube.

What does DOM stand for in DOM tubing?

Drawn Over Mandrel Mechanical Tubing (DOM) is a cold drawn 1020/1026 electric resistance welded tube with all of the flash removed prior to cold drawing. In comparison to traditional electric welded tubing, DOM tubing is produced to extremely tight OD and ID tolerances.

Can you stick weld DOM tubing?

DOM will “mig” just fine. “tig” will make a stronger weld, but may not be necessary for your application. If a “roll cage” is what you have in mind be sure to “gusset” it generously….and you’ll be O.K.

Can you arc weld 2mm steel?

When trying to weld the two pieces together, on the outside and inside angles (see red circle) I keep burning through and bigger and bigger gaps keep opening because of this. On the inner corners I have not had this issue and I have successfully welded thicker metals with 2mm and 2.5mm electrodes without issues.

Do roll cages have to be TIG welded?

All roll bars/cages constructed of 4130 chromoly tubing must be welded using an approve TIG heliarc process, while mild steel must be done with an approved MIG wire feed or TIG heliarc process. Grinding and plating of the welds is prohibited, so keep these points in mind if you’re a do-it-yourselfer.

What type of tubing is used for roll cage?

Roll cages are made with either 1.50″ x . 120″ or 1.75″ x . 120″ DOM tubing (depending on the weight of the car).

What is stronger chromoly or Dom?

From the research I have done, chromoly is generally 20-25% lighter than DOM. The reason for this is only because chromoly is stronger so you can use a thinner wall tubing and have the same strength. It would be interesting to see the difference.

Article first time published on

Is Dom stronger than HREW?

The main difference is strength. HREW (hot rolled electric welded) metal is milder steel, which is still plenty strong, with a yield strength of 40ksi. DOM (drawn over mandrel) steel is the same material which does not have a welded seam, with a yield strength of roughly 70ksi.

Is DOM tubing expensive?

DOM is typically more expensive and is considered a premium product compared to ERW by some fabricators.

What grade is DOM tubing?

DOM Tubing (Drawn over Mandrel) is a cold drawn 1020 to 1026 or ST52. 3 grade electric resistance welded tube with all the flash removed prior to drawing to size. Cold drawing DOM to size allows for higher yield and tensile strengths. In comparison to other tubing, DOM is produced to more exact OD and ID tolerances.

Is Dom stronger than mild steel?

Well-Known Member. Yes there is a big difference. 1020 or1026 DOM is superior.

What is seamless pipe called?

Welded pipe is also called ERW (Electric Resistance Welded) pipe. Most common specification for welded carbon steel pipe is A53. Seamless pipe is made by a process that requires no welding. Most common specification for seamless carbon steel pipe is A106B.

Is tubing stronger than pipe?

Tubes are stronger than pipe. Tubes perform better in applications that require durability and strength.

Is square tubing stronger than round tubing?

The answer is round tube has a higher resistance to both flex and torsional twisting than a square for a given weight. … If you have a. Thanks to the even weight distribution, circles are much stronger than squares. Each corner of a square has a weak point in the middle.

What is seamless tubing?

Seamless tubes are as defined – they do not have a welded seam. The tubing is manufactured through an extrusion process where the tube is drawn from a solid stainless steel billet and extruded into a hollow form. … Tubing is further shaped through pilgering, a cold rolling process, or cold drawing.

Can you mig weld 4130?

4130 chrome-moly can be welded with the TIG or MIG process. … ER70S-2 is also an acceptable alternative to ER80S-D2, as well as 70S-6, although weld strength will be slightly lower. 4130 filler metal is typically used for applications where the weld will be heat treated.

What is a flare bevel Weld?

Flare bevel Groove Weld is type of a weld where a groove is formed between a joint member with a curved surface and another with a planar surface. … Flare Bevel and flare Groove welds are predominantly used in structural, bridge and shipyard.

What is the thinnest steel you can arc weld?

With some experience, you can stick weld 3/32″ (2.4mm) mild steel with acceptable results. A welder with a lot of knowledge about heat control can stick weld down to 1/16″ (1.6mm) thin metal or even less.

How thick can a 200 amp MIG welder weld?

A 200-amp unit can weld between 5/16” steel.

How do you weld without burning holes?

If you keep getting holes in your weld, try angling the electrode so the heat is more diffused. It will prevent burn through most of the time. With this being said, you don’t want too shallow of an electrode angle. This will cause inadequate penetration.

Can you stick weld 4130 chromoly?

The ER80S-D2 has a tensile strength of 80,000, which is quite close to that of chromoly itself. This makes it a great option for use as a filler material for chromoly welding. … 4130 chromoly matches the material to be welded, which makes it an option for chromoly welding. However, it cannot be used with Thin Wall Tube.

How thick is tubing for a roll cage?

The roll cage must be constructed of magnetic steel tubing that is a minimum of 1 ½” in diameter, with a minimum tubing thickness of . 095 (wall thickness).

What kind of steel do you use for a roll cage?

There are two grades of steel that are accepted by the authorities as ‘roll cage standard’ materials. These are CDS or Cold Drawn Steel and T45. Which type of material you choose depends on several options. The first is strength, the second is weight, and the third is cost or budget.

What kind of steel is used for roll cages?

Cage materials typically include hot rolled electrically welded (HREW) steel, drawn over mandrel (DOM) steel, and chromoly DOM steel. In respective order, they increase in strength but also increase in price.

Is TIG weld stronger than MIG?

Bottom Line. TIG welding produces cleaner and more precise welds than MIG welding or other Arc welding methods, making it the strongest. That said, different welding jobs may require different methods, while TIG is generally stronger and higher in quality, you should use MIG or another method if the job calls for it.

Why must you never pull a roll cage?

Safe and Sensible Movement Although roll cages can be pulled to their destination, this creates high levels of impact stress, which can cause strains and injuries in the operator.

Is Tig easier than MIG?

TIG welding requires the use of both hands because the torch and filler material are separate. … As a result, the inert gas acts as a shield so you can weld the metals. The MIG process is more common today than TIG welding. MIG welding is easier to learn and much faster.

What alloy is DOM tubing?

Drawn-over-mandrel (DOM) tubing is not made from any specific alloy – it can be used with mild steel, chromoly or another alloy, such as SAE 1020 or 1026 steel. DOM tubing is often incorrectly referred to as “seamless tubing” because the seam is almost invisible.
