Section 334.10 NEC 2002 allows Type NM cable in any building that can be built of combustible construction as defined by the building code. … Buildings built of noncombustible construction (Types I and II) may use Type NM cable if the building code will allow the building to be built of combustible construction.

What type of cable is used in commercial buildings?

Metal-clad cable (type MC) per NEC 330 is one of the more commonly used cable types in commercial construction. MC cable is a set of conductors assembled within a metallic sheath of either steel or aluminum interlocking armor where the sheath is not used as a ground path.

Is Romex allowed in commercial construction?

Type NM, Type NMC, and Type NMS cables shall be permitted to be used in the following: … No type NM, NMC, or NMS, or non-metallic sheathed cable (Romex) usage in commercial applications regardless of mixed-use occupancy.

Where can NM cable not be used?

A:NM cable is NOT permitted in a two-family dwelling.C:NM cable is permitted to be run exposed in dropped or suspended ceilings in multifamily dwellings.D:Lighting above a suspended ceiling in a business office of type II construction can be wired with NM cable.

Where can NM cable be used?

The standard NM cable used for interior residential wiring inside walls and floor and ceiling cavities is known as NM-B. This cable is approved for use in dry locations only; you will never see it used in outdoor locations or buried beneath the ground.

Does commercial wiring have to be in conduit?

If it is concrete masonry, then most electrical codes will require conduits. In most cases yes, but it depends on your code jurisdiction. In general, for commercial applications conduit is a must.

Which type of cable does not required building?

PVC cable does not require bedding. Q.

Can NM cable be embedded in poured concrete?

More specifically, as noted in Sec. 334.12(A)(9), “Types NM, NMC, and NMS cables shall not be embedded in poured cement, concrete, or aggregate.”

Is NM cable allowed in high rise buildings?

The 2002 National Electrical Code (NEC) is permitting the use of Nonmetallic Sheathed (NM) cables to be installed in buildings (structures) with heights higher than three stories. … The majority of jurisdictions in the United States use a version of the National Electrical Code (NEC).

At what intervals does nm need to be secured?

NM cable must be supported and secured every 4 ½ ft. and within 12 inches of every outlet box, junction box, cabinet, or fitting.

Article first time published on

Why is Romex illegal?

Staffers there said house wiring known by the brand name Romex can be dangerous if the insulation is gnawed by rodents or punctured by nails. They said the flexible insulation on the cable lacks the protection of conduit, the rigid metal tubes that encase wires.

Can you use Romex in a steel building?

Romex can be used in a metal building as long as the cable is protected through the holes in the studs with bushings. You should be careful to meet the support requirements in vertical strokes and boxes.

Can PVC conduit be used in commercial buildings?

Conduit. A common method of electrical wiring in a commercial setting is by use of conduit. … For underground conduit runs or conduit embedded in concrete slabs, PVC conduit is used, as it will not rust or corrode. PVC conduit can also be found in areas where moisture, water, or chemicals may be present.

Is Romex considered conduit?

Yes, NM cable can be in conduit. In fact. NEC calls for it to be in conduit, when protection from physical damage is required.

Can NM cable be exposed?

Section 336-6 permits NM cable to be installed in exposed locations and has permitted this installation technique since the introduction of NM cable into the Code in the 1930s. If installed exposed, the cable must closely follow the building surface or be installed on running boards.

Why is Romex wire so expensive?

The coverings are made from Petroleum products and as the price fluctuates with that the price varies as well not just the price of good copper. Because of supply and demand in the copper market. In the last 5 years copper prices have quadrupled.

Which type of wiring is used in commercial building Mcq?

Wiring systemApplicationsCTS / TRS wiringResidential offices and commercialLead sheathed wiringSuitable for places exposed to sun and rain and damp placesConduit wiring (PVC cables)Industries, workshops, public buildings, residential, commercial and office buildings

What cable type is ideal for connecting between two buildings?

The best way to connect your two buildings is with fiber-optic cable and a transceiver at each end. If that brings costs over budget, a good second choice is Category 5 cable with a Category 5 protector at each end.

Which wiring is used in residential building?

Conduit wiring is used in residential, commercial and public buildings to improve appearance.

What is the difference between residential and commercial wiring?

Residential wiring refers to any electrical work or wiring that’s meant for residential buildings and houses. This type of wiring is confined to homeowners. On the other hand, commercial wiring is incredibly complicated and is designed for commercial buildings such as warehouses, hospitals, and malls.

What is commercial electrical work?

A commercial electrician is a trained and licensed electrician who focuses on wiring and electrical systems in commercial buildings rather than residential buildings. These electricians work with bigger systems, in large buildings like shopping malls, office buildings, restaurants, government buildings and high rises.

Can I run electrical wire through PVC?

Regular PVC pipe shouldn’t be used in electrical applications, and PVC conduit won’t work well in plumbing situations. But when you use them correctly, they are both effective and reliable.

What is Romex called in the code book?

Romex Cables Romex™ is a common type of residential wiring that is categorized by the National Electrical Code (NEC) as underground feeder (UF) or non-metallic sheathed cable (NM and NMC). NM and NMC conductors are composed of two or more insulated conductors contained in a non-metallic sheath.

Can type NM B Romex be exposed to corrosive vapors?

Section 334.12(B) does not allow type NM cable to be installed in wet locations or where exposed to corrosives such as chlorine but without the revised code language, sections 334.10 and 334.12(B) were in conflict with one another.

What is non metallic sheathed cable used for?

The standard non-metallic-sheathed cable used for internal work in dry locations is Type Non-metallic-sheathed (NM) – B cable. These cables are commonly used for residential switches, lighting fixtures and loads rated for 90°C.

Can you pour concrete over Romex?

Yes, Romex can pass through concrete without any additional protection, but it should not be exposed to a situation where it may suffer physical damage.

What is the difference between NM and NMC cable?

Type NM cable is defined as insulated conductors enclosed within an overall nonmetallic jacket, while Type NMC is insulated conductors enclosed within an overall corrosion-resistant nonmetallic jacket. The only difference between the two definitions is that NMC is corrosion-resistant and NM cable is not.

What is Romex cable used for?

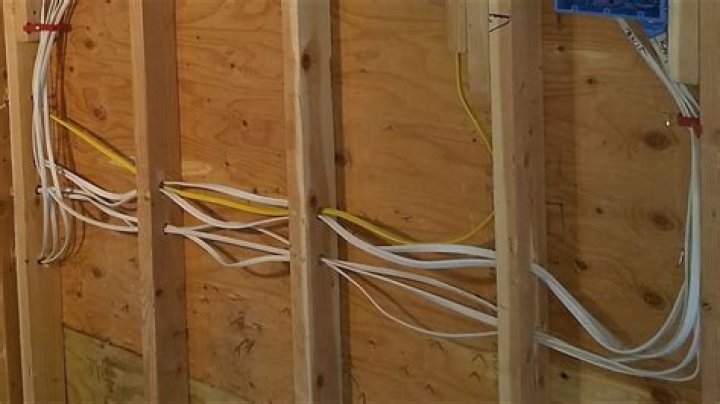

Romex (shown in yellow above) is the trade name for a type of electrical conductor with non-metallic sheathing that is commonly used as residential branch wiring. In fact, Romex will be the most common cable you’ll use in wiring a house.

How often does Romex need to be stapled?

General Cable Support Runs of NM cable must be supported at least every 54 inches. 1 They also must be secured within 12 inches of an electrical box that includes a cable clamp or within eight inches of a box or enclosure without a cable clamp.

How far apart should Romex be stapled?

334.30 Securing and Supporting Nonmetallic-sheathed cable shall be supported and secured by staples, cable ties, straps, hangers, or similar fittings designed and installed so as not to damage the cable, at intervals not exceeding 1.4 m (4 1⁄2 ft) and within 300 mm (12 in.) of every outlet box.

Why is MC cheaper than Romex?

When it comes to pure MC cable versus Romex cost, Romex is about 25% cheaper than MC cable due to the fewer source materials and lower shipping costs. In terms of installation, Romex can cost more than MC cable if a protective conduit is required.
