The key ingredient is a special type of switch called a “three-way” switch. You’ll need two of them, one to replace the existing switch and another for the new switch location. With these, you’ll have the convenience of turning a light on and off from two spots.

Can any switch be a 3-way?

Three-way switches can be wired in a number of different ways, depending on where they are located relative to the light fixture in the circuit cable runs. For example, they can be arranged so that the feed cable runs to the first three-way switch, then to the light fixture box, then to the second three-way switch.

What is the difference between a 3-way switch and a regular switch?

The most common household switch, a single-pole, has two terminals and simply turns power on or off. A three-way switch has three terminals; a four-way has four. … You can usually replace any single-pole switch with a dimmer.

What kind of switch do I need for a 3-way switch?

Single point switching of a 120VAC supply needs only a single pole switch. For switching from either of two locations, use a pair of 3-way switches. For turning on or off a more powerful electrical device on a 240VAC supply, you’ll want to use a double pole switch.

Do I need special wire for a 3-way switch?

You will need two different types of 14 AWG wire, to wire your three way switch. You will need 14/2 Romex, and 14/3 Romex. 14/2 wire has two power carrying conductors, a black, and a white, plus a bare ground wire.

Can you wire a 3-way switch as a single pole?

In order for a 3-way switch to function as a single pole, the wires need to be connected to the common and one of the traveler terminals. It will not work if the wires are connected to the two traveler terminals. … 3-way switches can be converted to single pole in several configurations.

What happens if you wire a 3-way switch wrong?

Finding the common wire: When wiring a 3-way light switch, you’ll need to find the common wire and connect it to the common screw. If you don’t correctly connect this wire, then your lights won’t work from more than one switch. … Since improper wiring is one of the main causes of home fires, this is a serious problem.

Is there a difference between a 2 way and 3-way light switch?

Much like the two-way switch, a three-way switch turns a light on or off. However, there is a crucial difference. … Three-way switches are connected to a hot wire from the electric panel and a wire that connects to the light. However, they have two special wires that connect to each other, called travellers.

Can you use a single pole switch as a 3-way switch?

Yes it can work. 3-way switches are spdt (single pole double throw) with 3 screw terminals, and regular switches are spst (single pole single throw) with 2 screw terminals. Just pick the correct two contacts and you are good to go. .

Is a double pole switch the same as a 3-way switch?

A double-pole switch allows you to control two separate circuits using the same switch, while a three-way switch allows you to control a single circuit from two different locations. A double-pole three-way switch is able to integrate both of these functions into one.

Article first time published on

Can you use a 4 way switch as a 3-way?

A 4way switch will not work in place of a 3way. The common toggle (in), whether up or down on a 3way switch, comes in contact with both switch leg (out) terminals. A 4way switch will not accomplish this. The 4way is more like two “separate” single gang switches, they will not work in unison as one.

How do you tell if it's a 3-way switch?

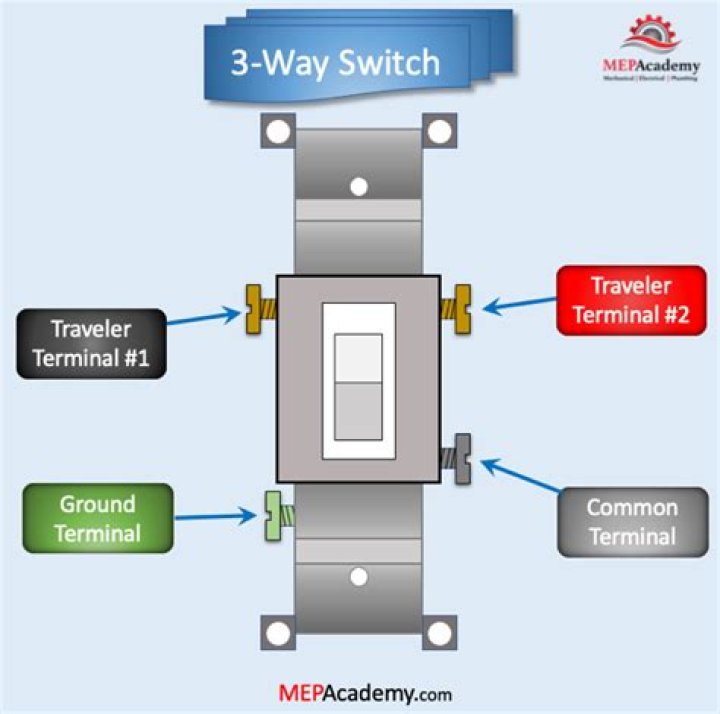

A more positive way to identify a 3-way switch is to look at the body of the switch and count the number of screw terminals: a 3-way switch has three terminal screws plus a ground screw. Two of the terminals are a light color—bronze- or copper-colored—and are called travelers.

What wire do you use for a 3-way switch?

Two different types of wire cables are used in wiring a standard 3-way switch, most often 14/2 cable and 14/3 cable. The 14 stands for the gauge of wire (rated for 15-amp circuits) and the following number, 2 or 3, represents the number of conductor wires in the cable.

How many wires do I need for a 3-way switch?

Feed a length of 14-3 type NM cable (or 12-3, if you’re connecting to 12-gauge wire) between the two boxes. The 14-3 cable has three insulated conductors: white, black and red (plus a bare ground wire). Connect the wires to the new 3-way switches with ground screws using one of the two wiring diagrams (Fig.

Can you use 2 wire for a 3-way switch?

Two three-way switches (s.p.d.t.), four diodes, and two wires also enable three-way switching action. … If you only have a two-wire cable to work with, you can still hook up a three-way switching circuit for your garage, or hallway, to enable you to turn a light on and off from either of two different locations.

Why do 3-way switches go bad?

A bad switch may not fail completely, burned contacts may cause intermittent failure. … If one 3-way switch needs to be replaced, the other one should be replaced too. Neutral. Black common wire is usually wrapped around the two traveler wires on a 3-way switch.

What is the black screw on a three way switch?

The black screw has the black (common) wire that runs up to the light through the yellow cable. The two grounds are connected together and then to the green ground screw on the switch. To summarize, the black screw gets either the wire from the electrical panel or the wire going to the light.

Can you eliminate a 3 way switch?

Remove the Three-Way Switch From the Circuit Start with the three-way switch that will be removed. Remove the switch cover plate screws with the slot screw driver, and then remove the two switch screws. Carefully pull out the switch, making sure not to touch or short any of the three wires.

Why is it called a 3 way switch?

Circuits controlled by two (single pole, double throw) switches are called three-way by convention to distinguish them from circuits controlled by one (single pole, single throw) switch, which may be considered two-way (on, off). Clearly, three-way switches also arguably have only two functional states (on, off).

At what terminal of 3 way switch we connect wire going to wire going to the load?

The common terminal is the “bridge” between the power supply and the load (typically a light fixture). With this in mind, the wire that attaches to the common terminal is either (1) a hot wire from the main board or (2) leads to the load (fixture).

Is 3 way the same as 3 pole?

Three pole or three-way switches are used to control lights and fixture from multiple locations, such as the top and bottom of a flight of stairs A closer look shows that a three pole switch has three terminals, while a single pole switch has two.

What is the purpose of 3 Way switches?

A 3-way switch is one that allows you to control a ceiling light (or other electrical fixture) from two separate locations. Common scenarios would be 3-way switches located at both the top and bottom of a stairway, or having 3-way switches next to doors in a room with two entry points.

Do I need single or double pole switch?

The difference is simply the amount of poles being switched. Are single pole sockets safe? Single pole sockets are perfectly legal and are safe for many appliances, but it is safer to use double pole sockets. Therefore is always better to use double pole sockets in all situations.

Do they make 4 way dimmer switches?

Lutron CA-4PS-WH Diva 15 A 4-Way Switch, White.

Can you wire a 4 way switch like a single pole?

Double pole light switches, also known as a four-way switch, are two single pole switches put together. … It is easy to wire a double pole switch to work as a single pole switch because only one side is used instead of both. Single pole switch is referred as a single pole, single throw switch.

Do you need 2/3-way switches?

A 3-way wall switch controls a common light or set of lights from two separate switch locations. Two, 3-way switches are required in any 3-way application.
