Sediment traps are required at all automatically controlled gas appliances. … In other words, sediments traps are required at furnaces, boilers, water heaters, clothes dryers, ovens, space heaters, unit heaters, gas fireplaces, and more.

Does every appliance need a sediment trap?

According to the 2016 California Plumbing Code (CPC), sediment traps are required for all gas appliances except: illuminating appliances, ranges, clothes dryers, decorative appliances for installation in vented fireplaces, gas fireplaces, and outdoor grills. Those are quite a few exceptions.

Does a gas dryer require a drip leg?

Good question – Because they are not required for gas clothes dryers and stoves. not be so equipped. cevans: Good question – Because they are not required for gas clothes dryers and stoves.

Where do you put a sediment trap on a gas line?

Location of sediment trap: Sediment trap is required to be installed downstream of the appliance shut off valve and as close to the appliance inlet as possible.

How important is a sediment trap?

Sediment traps installed at gas appliances are used to help catch any sediment or debris that may be present in the gas line and prevent it from entering the appliance and possibly damaging it. … The orientation of the sediment trap is also important. It must be vertical to function properly.

How much does it cost to have a sediment trap installed?

Sediment traps cost about $10, but you can do it yourself for less without the kit by shopping for 1/2 inch gas line at Home Depot. If you have a professional install one, it can cost up to $100.

What's the difference between a drip leg and a sediment trap?

A sediment trap will catch moisture as well as a drip leg does but a drip leg may not catch small pieces of sediment. … The difference is that the gas is forced to change direction at a sediment trap before it goes into the control unit. Any moisture or sediment in the gas is forced to drop out.

Why do you need a drip leg on a gas line?

A drip leg, or also commonly called a sediment trap, is used on fuel piping to prevent sediment, debris, and moisture from entering a gas appliance or fuel regulator. … The drip leg serves as an area within the fuel piping system to protect your appliances and regulators from damage.

How long should a gas trap be?

Made of a tee fitting with a capped nipple, a minimum of 3 inches in length, in the bottom opening of the run of the tee.

What is gas sediment trap?

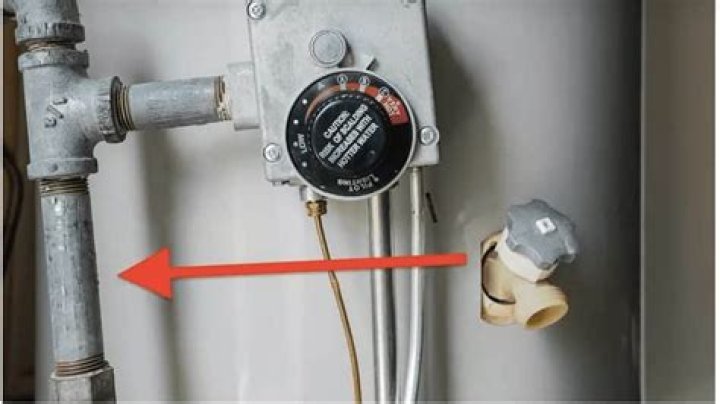

A sediment trap is a short piece of gas pipe installed near an appliance that helps to collect debris in the gas line. The idea is that any debris in the gas line will collect in the sediment trap before that debris can foul up the appliance’s gas valve and cause trouble.

Article first time published on

Where do you put drip legs?

A drip leg can be installed anywhere at the low point in the piping system, if there is moisture in the gas to allow for the removal of the condensation. The outlet of the meter is one such location. What is this? Sediment traps are usually installed very close to the water heater or furnace valve.

What is a gas stub out?

Basically, a stub out is the part of a pipe that extends out from the wall that allows you to connect a device to it. It is safe to leave it capped until you need it, and some of them are never used. Once your gas is turned off, you will uncap the stub out and safely attach your gas grill line to it.

What is the purpose of the vent on a gas furnace?

Vent systems are an important component of the combustion process of a gas furnace. A venting system ensures that the hazardous gasses are removed from the heat exchangers and burners at the end of a heating cycle. If your furnace is not turning on, the source of the problem may be a damaged vent.

What is the typical line voltage for gas furnaces?

24 Volts is fairly common in systems powered by line voltage.

Are sediment traps required in Nevada?

A sediment trap, is sometimes referred to as a “drip leg.” It is an extension on the metal gas line typically running to a gas burning appliance. … These sediment traps are required by the State of Nevada on gas burning appliances such as water heaters, furnaces, gas fire places, boilers, etc.

How does a sediment pond work?

Sediment ponds are temporarily designed structure that prevent sediments from eroding into waterbodies from construction sites or exposed soil during rainfall events. … Once properly designed, sediment ponds captures stormwater runoff and sediments, manage soil erosion, and protect water quality.

What is a drip trap?

Regularly performing the chore prevents corrosion and “water hammer” damage in the pipes. … Excess condensate will restrict the gas flow and increase the pressure drop in the system. If gas is reclaimed for energy it also is important to keep the gas as dry as possible.

What is a dirt leg on a hot water heater?

Drip legs and sediment traps are a capped off section of gas line that is designed and installed to catch debris or moisture in the gas line to keep the system clean. … Moisture and debris will simply pass by the assembly and into the appliance.

Can you use flex gas line furnace?

Flex connectors: Flexible connectors are permitted to connect appliances to the gas piping. There has to be a shut-off valve at the connection to the rigid piping. … Flexible connectors may not be permitted on gas furnaces, water heaters, space heaters, etc.

What is the purpose of a stub out?

A stub-out is the exposed portion of a pipe installed during a plumbing, electrical or gas rough-in that is ready for connection to a fixture or device.

When should you use a stub?

Stub out elbows are primarily used when installing PEX pipe to stub out of the wall and allow for further connection of outlet stop valves and plumbing fixtures. Stub out elbows with ears can be nailed to a wooden surface, such as a stud.

How long should a stub out be?

The drain stub-out extends from a fitting — usually a sanitary tee — to a point 3 or 4 inches beyond the wall. If you mean for rough-in construction, we always went 4–6” past the finished wall.

Do gas furnaces need to be vented?

Yes, a furnace needs to be vented. A furnace vent allows for any gases and exhaust created by combustion to be removed from the home. If your furnace is not vented, it can lead to dangerous conditions, like carbon monoxide building up within your home.

Do gas furnaces have exhaust?

One of the most important parts of a gas-powered furnace is the exhaust flue. Although this component plays a largely passive role in furnace operation, your system simply couldn’t work without it. If you would like to improve your knowledge of residential HVAC systems, keep reading.

Can I vent my gas furnace horizontally?

Direct Vents These furnace vents can be installed horizontally through an exterior wall, or vertically so exhaust fumes go out through the roof. Although more costly than a natural vent, a direct vent is also a more efficient and safer option.
