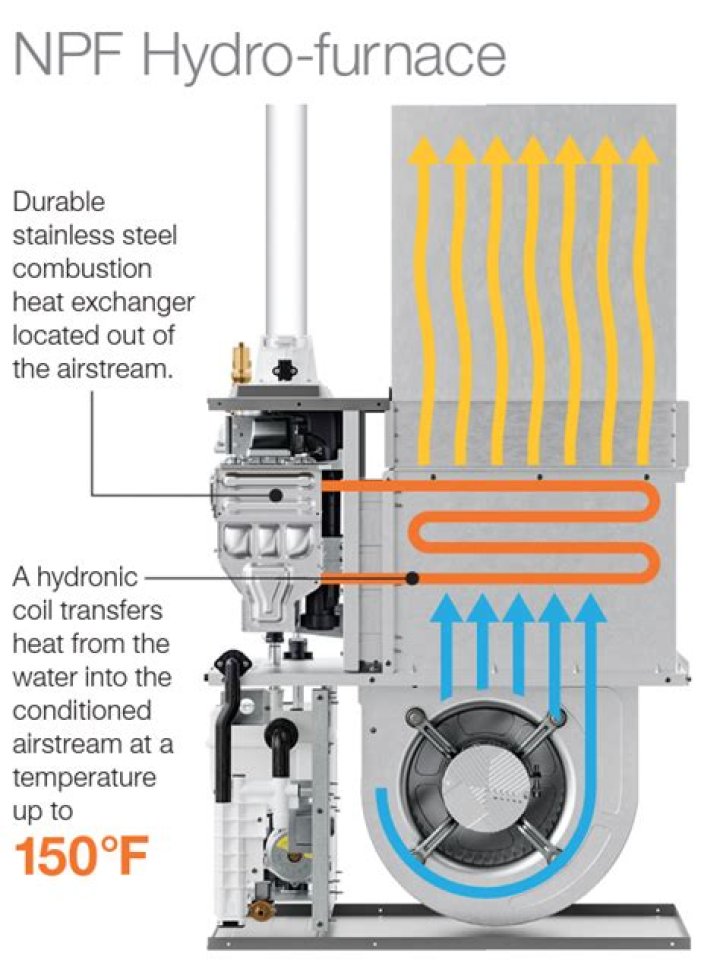

How does a Combined Hydronic Air Handler system work? … When you turn on the heat, a small pump brings hot water from the water heater to coils inside the air handler. Air is warmed as it’s pushed over these coils, and then it continues into the duct system.

What is the purpose of hydronic heating?

The Benefits Of A Hydronic Heating System. Hydronic heating is an energy-efficient way to provide clean, warm, and comfortable heat through your home. If you’ve never had hydronic heating, you’ll be amazed by the even heating you get. There are no more warm or cold spots throughout your home.

Are hydronic furnaces efficient?

Double duty. Since the water heater is the source of heat for both the air and the water, hydronic systems are as efficient as the tankless water heaters they run on. As a result, pairing a hydronic air handler with a high-efficiency condensing tankless water heater can achieve efficiency as high as 96 percent.

How much does a hydronic heating system cost?

Typical costs can range from $5,000 to $10,000 depending on the size of the home, the installation method, and the number of hydronic units required. Hydronic heating is more expensive to install than other methods.

Are hydronic heaters good?

It takes less energy to circulate water than blow hot air so hydronic systems are more energy efficient than air systems. Heat produced by a hydronic system doesn’t get lost while traveling through ductwork. … Radiant floor hydronic systems provide an extra level of comfort by heating the floor and other surfaces.

What temperature is hydronic heat?

Radiant-floor heating systems typically use water temperatures of 85-140°F (30-60°C), compared with baseboard hydronic systems that typically operate at 130-160°F (55-70°C).

Is hydronic heating the best?

Hydronic heating is much more economical than using other forms of radiant heating or even reverse cycle air-conditioning. One of the big reasons for its efficiency is that water conducts heat better than air, so less energy is needed to heat the water and warm your home.

Does hydronic heating use electricity?

The hydronic system works by heating the water at its surface using either electricity or natural gas. … It provides both allergen and dust free forms of heating, unlike forced-air heating systems; making it ideal for people with medical concerns.

How long do hydronic heating systems last?

Age – hydronic systems have an average lifespan of about 20 years. If yours is older than this, you may want to consider replacement, even if the system is still working ok. Waiting for a leak or other problem to occur before replacing the system may cost you more down the road.

How is hydronic heating installed?

Hydronic heating is an energy efficient system that uses hot water to heat your home. The water is heated by an economical heat source, and then circulated around your home through radiator panels or underfloor heating pipes.

Article first time published on

What does hydronic mean in English?

Definition of hydronic : of, relating to, or being a system of heating or cooling that involves transfer of heat by a circulating fluid (such as water or vapor) in a closed system of pipes.

What are the disadvantages of hot water heating systems?

• More expensive to install. Hot water systems are more expensive upfront. …
• Cannot add an air conditioner to a boiler. Furnaces are convenient because they can use the same ductwork as air conditioners.

Does hydronic heating dry the air?

Instead of drying out the air (as many ducted systems are prone to do), hydronic heating warms objects through natural convection and radiation, evenly distributing a gentle and inviting heat. … And with the heat contained in the radiator panels and floors, the system is extremely easy to clean and keep dust-free.

Is hydronic heating cheaper than ducted heating?

Hydronic heating is regarded as a cost-effective centralised heating solution. It has been estimated that it costs about 20% less to operate than a gas ducted heating system.

Is hydronic heating better than ducted heating?

Water has a higher thermal conductivity level than air, making hydronic heating systems more energy-efficient than traditional ducted methods. Additionally, since hydronic heating requires zero fans or air movement, hydronic heating can be beneficial for households that need hypo-allergenic solutions.

Does hydronic heating use gas?

Hydronic heating provides homeowners with the option of choosing a suitable design for their individual needs. Versatility stems from the choice of using natural gas, solid fuel, propane or electricity as your local fuel source. While gas is the most common choice, the choice is still up to you.

How long does it take to install hydronic heating?

Hydronic heating can take up to 15 minutes to heat up a room, but it will vary. It depends on the size of your room, the material of your walls and floors, and the type of hydronic heating system you may have installed.

How does a hydronic wall heater work?

In a hydronic system, heat is transferred into the room via thermal radiation. … In hydronic heating, heat emitters such as wall-mounted radiators, underfloor coils and heated towel rails emit radiant heat to warm the room. Because radiant heat is absorbed by objects, it cannot be blown away or moved.

What PSI should my furnace be?

In most cases, it should rise to about 20 psi while its heating element operates. That’s optimal at normal temperatures. Pressure changes of a few psi one way or the other can be brought about by atmospheric conditions. Most boilers are safe up to around 30 psi, at which point seals can begin to fail.

What is the ideal temperature for Infloor heating?

The ideal temperature for i- floor heating is 75° F (24° C). For a little range, anywhere between 74° F and 77° F sits in the sweet spot temperature-wise for in-floor heating.

What is the cheapest way of heating a house?

Gas is generally much the cheapest form of heating, but its cost depends on a number of factors, including your supplier, tariff and boiler.

How often should hydronic heating be serviced?

Ideally, you would have a hydronic heater service carried out at least once per year. This will help to ensure that your heater heads into winter without any issues. Most people will have their hydronic heating system serviced a couple of weeks before winter starts. Make sure you give yourself a bit of time!

Should I replace 40 year old radiators?

Over time the metal pipes and radiators in your heating system can rust, this rust is collected by the water running through your system and returned to the boiler where it can collect. This collection of debris is called ‘sludge’ and it’s a good reason to replace old radiators.

Can you have hydronic heating without gas?

When you don’t have any form of gas and a smaller home an electric boiler is an option. Running costs are high but can be offset by solar panels. Installation costs are similar to a gas boiler for a standard-sized system.

Can hydronic heating be run from solar panels?

Yes. The most efficient way to run a solar hydronic heating and hot water system is to draw the electricity for the heat pump from solar PV panels.

Can hydronic heating be zoned?

A hydronic heating system-equipped house could be zoned for an increasingly comfortable living area. Zoning lets you isolate different living spaces in a home and provide heat to only the areas needing it. The heating system could be divided into multiple zones depending on the comfort level desired.

Can you DIY hydronic heating?

The DIY hydronic system can be as small or as large as it needs to be, depending on your heating needs and the size of the property.

What is hydronic fluid?

Hydronics (hydro- meaning “water”) is the use of liquid water or gaseous water (steam) or a water solution (usually glycol with water) as heat-transfer medium in heating and cooling systems. … Chillers and cooling towers are used either separately or together as means to provide water cooling, while boilers heat water.

What types of hydronic heating systems are in use?

• Baseboard. This popular hydronic system is frequently referred to as “hot water baseboard.” The painted steel housing on the baseboard unit hides a hot water pipe surrounded by metal fins that help radiate the heat.
• Hydronic radiant floor. …
• Hydro-air heating.

What is hydronic cooling?

Hydronic cooling is simply the removal of heat from the space utilizing chilled water as the heat exchange medium. As opposed to evaporative cooling which introduces humidity into the space, hydronic cooling systems are completely closed loop meaning no water is added to the space for the purpose of cooling.

Which heating system is the best?

Geothermal systems provide the most efficient type of heating. They can cut heating bills by up to 70 percent. Like other types of heat pumps, they are also very safe and environmentally friendly to operate.
