The number of diagonals in a polygon that can be drawn from any vertex in a polygon is three less than the number of sides. To find the total number of diagonals in a polygon, multiply the number of diagonals per vertex (n – 3) by the number of vertices, n, and divide by 2 (otherwise each diagonal is counted twice).

What is the formula to find the diagonal of a polygon?

The number of diagonals in a polygon = n(n-3)/2, where n is the number of polygon sides. For a convex n-sided polygon, there are n vertices, and from each vertex you can draw n-3 diagonals, so the total number of diagonals that can be drawn is n(n-3).

What are the diagonals of a polygon?

Polygons. As applied to a polygon, a diagonal is a line segment joining any two non-consecutive vertices. Therefore, a quadrilateral has two diagonals, joining opposite pairs of vertices.

How do you find diagonals?

You can find the diagonal of a rectangle if you have the width and the height. The diagonal equals the square root of the width squared plus the height squared.

How many diagonals are in each polygon?

Polygon NameNumber of SidesNumber of DiagonalsHexagon69Heptagon714

How do you find the sides of a polygon when given the diagonals?

By using the formula for the number of diagonals of a polygon with n sides, you can determine how many sides a polygon has if you know the number of diagonals it has. For example, if a polygon has 54 diagonals, find how many sides it has. Then, solve for n using algebra. First multiply both sides by 2.

How do you find the diagonals of a concave polygon?

MATHS Related LinksTable Of 25Logarithmic FunctionsExterior Angles Of A Regular PolygonGeometry Symbols

What is polygon formula?

Polygon Formula The sum of interior angles of a polygon with “n” sides =180°(n-2) Number of diagonals of a “n-sided” polygon = [n(n-3)]/2. The measure of interior angles of a regular n-sided polygon = [(n-2)180°]/n. The measure of exterior angles of a regular n-sided polygon = 360°/n.

How do you find the diagonal of a pentagon?

Now, we have to find BC = 2 * x. If we draw a perpendicular AO on BC, we will see that the perpendicular bisects BC in BO and OC, as triangles AOB and AOC are congruent to each other. Therefore, diagonal length will be 2 * x i.e. 1.22 * a.

How many diagonals are there in the following figure?

Know that a diagonal is defined as the line joining the opposite points of the polygone. Hence, there are five diagonals in the given figure.

Article first time published on

Do concave polygons have diagonals?

Some of the diagonals of a concave polygon will lie outside the polygon. In the figure on the right, the diagonal at the top of the polygon is outside the polygon’s interior space. (In a convex polygon, all diagonals will lie inside the polygon). Regular Polygons are never concave by definition.

How do you determine if a polygon is convex or concave?

Every polygon is either convex or concave. The difference between convex and concave polygons lies in the measures of their angles. For a polygon to be convex, all of its interior angles must be less than 180 degrees. Otherwise, the polygon is concave.

How many diagonals a convex polygon have?

Hence a convex quadrilateral has 2 diagonals.

How do you find the sides of an exterior polygon?

Divide 360 by the amount of the exterior angle to also find the number of sides of the polygon. For example, if the measurement of the exterior angle is 60 degrees, then dividing 360 by 60 yields 6. Six is the number of sides that the polygon has.

What is the polygon of 4?

Definition: A quadrilateral is a polygon with 4 sides.

How do you solve a polygon equation?

A regular polygon is a flat shape whose sides are all equal and whose angles are all equal. The formula for finding the sum of the measure of the interior angles is (n – 2) * 180. To find the measure of one interior angle, we take that formula and divide by the number of sides n: (n – 2) * 180 / n.

How many diagonals are there in the following figure Pentagon?

A pentagon has 5 diagonals. In geometry, a diagonal refers to a side joining nonadjacent vertices in a closed plane figure known as a polygon.

How many diagonals are there in a polygon having 12 sides?

In a polygon of 12 sides, no. of diagonals n(n−3)2=12(12−3)2=12×92=54.

How many diagonals are there in a polygon of 8 sides?

an octagon has 8(8−3)/2 = 8×5/2 = 20 diagonals.

What polygons have no diagonals?

So a triangle, the simplest polygon, has no diagonals. You cannot draw a line from one interior angle to any other interior angle that is not also a side of the triangle.

Is there a polygon with 54 diagonals?

So, the number of sides of a polygon which have 54 diagonals is 12. … Note:Triangle, Square, Quadrilateral all are a kind of Polygon.

What is convex polygon with example?

A convex polygon is a closed figure where all its interior angles are less than 180° and the vertices are pointing outwards. … Real-world examples of convex polygons are a signboard, a football, a circular plate, and many more. In geometry, there are many shapes that can be classified as convex polygons.

How do you check if a polygon is convex or not?

To see if a polygon is convex, calculate the angles at each of the polygon’s corners. If all of the angles have the same sign (either positive or negative depending on the orientation), then the polygon is convex.

How do you know if a polygon is regular or irregular?

A polygon that does not have all sides equal and all angles equal. (A polygon is “regular” only when all angles are equal and all sides are equal, otherwise it is irregular.)

How do you find out if a polygon is regular or not?

A polygon is regular when all angles are equal and all sides are equal (otherwise it is “irregular”).

What is a convex polygon formula?

Theorem 39: If a convex polygon has n sides, then its interior angle sum is given by the following equation: S = ( n −2) × 180°. … Theorem 40: If a polygon is convex, then the sum of the degree measures of the exterior angles, one at each vertex, is 360°.

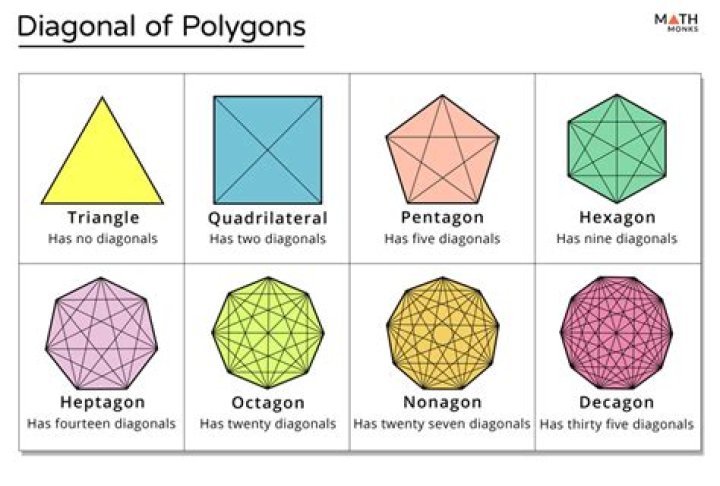

How many diagonals are there in a triangle?

ShapeNumber of sides (n)Number of DiagonalsTriangle33(3−3)/2 = 0Quadrilateral44(4−3)/2 = 2Pentagon55(5−3)/2 = 5Hexagon66(6−3)/2 = 9
