Each of your new brakes will have two wires for the brake magnet. One wire is for 12 volt power to the brake magnets and the other wire should be grounded either to the trailer frame or to the main trailer ground wire. It does not matter which wire is used for power or ground because they are not polarized.

How are electric brakes wired?

Each of your new brakes will have two wires for the brake magnet. One wire is for 12 volt power to the brake magnets and the other wire should be grounded either to the trailer frame or to the main trailer ground wire. It does not matter which wire is used for power or ground because they are not polarized.

Does a 7 pin trailer plug control brakes?

What is difference between a 4 pin and 7 pin trailer connector? … A 7-Way has these functions and a 12 volt circuit, a circuit for electric trailer brakes (requires a brake controller in the vehicle), and a reverse light or auxiliary power circuit. There are other types of connectors as well.

Does it matter which wire goes where on electric trailer brakes?

The brakes are not grounded, so the wires coming out of the back of the brakes does not have polarity ( no hot or ground). It does not matter which wire you connect to which wire, only that they are not connected to each other! Run a the two conductor wire to each brake, and hook to the two wires on the brake.

How does electric brake controller work?

A proportional or inertia-based brake controller uses an electrical circuit called an accelerometer to sense changes in momentum. When the driver presses the brake pedal, the brake controller applies power to the trailer brakes in proportion to the vehicle’s momentum.

Can you have trailer brakes with 4 pin connector?

The 4 flat connector doesn’t have enough circuits nor the necessary wire thickness or gauge to carry voltage to the trailer bakes. It would seem fairly logical that you could run a wire from the brake lamp circuit to the brakes but that wouldn’t work well at all.

What color wire is electric brakes?

The green wire is the right turn/brake, the yellow wire is the left turn/brake, the white wire is the ground, and the brown wire is the electric wire. It is best to wire by function as wire colors can vary.

What should my brake controller be set at?

Tekonsha recommends setting the power setting for its unit at “6” for a starting point. This means that with the trailer attached and the engine running, the operator pulls the manual override lever on the controller all the way to the left—maximum brake.

Can electric brakes be added to a trailer?

You will need several items to add electric brakes to your Carry-On Utility trailer. Starting with the trailer you will need a hub and drum that matches the bearings and seal on your trailer spindle and your wheel bolt pattern. … To finish the trailer you will need wiring and a 7-Way connector.

How does a brake controller know if a trailer is connected?

Aftermarket brake controllers send a small amount of voltage along the brake output wire, if a trailer is connected, the magnets in the brake assemblies will create a power draw. This power draw tells the controller that a trailer is connected.

Article first time published on

Which wire is positive on electric brakes?

Which Wire on Trailer Brake Magnet is the Positive and Ground. Helpful Expert Reply: Trailer brake magnets actually are not polarity sensitive. That means either wire lead can be the positive as long as the other wire is grounded.

Which wire is ground on trailer brakes?

There are two wires for the brake magnet in your new brakes. The main trailer ground wire should be grounded either to the trailer frame or the brake magnets. It doesn’t matter if the wire is used for power or ground.

Are trailer brakes wired in series or parallel?

The brake wire providing voltage is wired in parallel, with one lead from each magnet being grounded to the trailer frame.

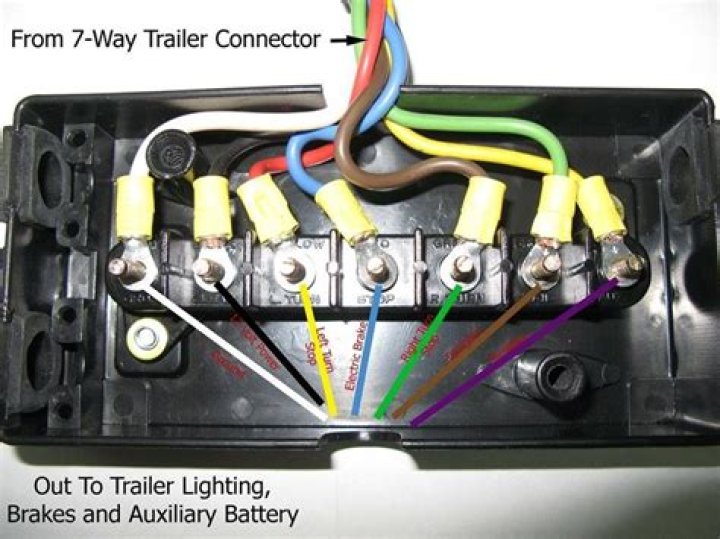

What pin is for trailer brakes?

Pin #2FunctionElectric trailer brakesCommon Wire Color(s)BlueMin. Wire Size12 AWG

Do I need a trailer brake controller if I have a 7 pin connector?

Expert Reply: A factory 7-way trailer connector isn’t all you need to power a trailer’s electric brakes. You still need a brake controller.

How do I know if my trailer has electric brakes?

If your trailer has brakes, but no actuator, chances are that it has electric brakes. The only exception to this would be if it has hydraulic brakes but the owner decided to not use the brakes (never a good idea) and exchanged the actuator with a normal coupler.

Where do you plug in an electric brake controller?

Using a vehicle-specific wiring harness, plug the brake controller into the vehicle. One end of the wiring harness plugs into the vehicle’s factory harness under the dash, and the other end plugs into the brake controller. The location of your vehicle’s factory wiring harness may vary.

What color are the wires?

FunctionlabelColor, commonProtective groundPGbare, green, or green-yellowNeutralNwhiteLine, single phaseLblack or red (2nd hot)Line, 3-phaseL1black

How do I know if my trailer has trailer brakes?

To tell if your pop-up camper has brakes just check the tongue of your camper. If your pop-up has brakes, there will be a looped cable coming from a box on the side of the tongue. This looped cable is the brake switch that connects to the towing vehicle and that activates in case of braking.

What is a wireless brake controller?

A wireless brake controller is a brake controller that doesn’t require a traditional wiring connection to the vehicle for operation. The Echo® wireless brake controller plugs in between the vehicle-trailer 7-way, eliminating the need for a separate splice-in or factory wiring installation.

Does a 4 wire trailer have brakes?

4 wires will give these functions, so the simplest scheme is a 4-pin connector. The most common 4 wire connector is the 4-Pin Flat Connector as shown here. Trailers that use this are usually fairly light weight and don’t have brakes or other power accessories. It’s the most common style for “consumer” type trailers.

How much weight can you tow without trailer brakes?

The weight limit for which trailers must be installed with brakes begins at 1,500lbs in most states. Trailers weighing over 3,000lbs are required to have brakes on all wheel axles. Driving 4,000lbs trailers with no brakes is just reckless and could lead to severe damage or injury.

What do I need for electric trailer brakes?

To use electric brakes, your tow vehicle will need to have a brake controller installed. This is usually a simple process on 4×4 vehicles. The brake controller is a small box that can be mounted on or under your dashboard. You can also choose to activate the brakes manually, via a switch on the brake controller.

What is better surge brakes or electric brakes?

Electric Brakes provide additional ease of use and additional braking control. Electric brakes are more simple than surge brakes, but they require a brake controller in the cabin of the tow vehicle.

Does a brake controller need to be level?

Expert Reply: Electric proportional brake controllers are required to be manually leveled by hand according to the parameters outlined in the installation instructions. … If mounted improperly, some brake controllers will show an error message or code on the display. Others will just not work properly if at all.

Which trailer brake controller is best?

1. Editor’s Pick: CURT Echo Electric Trailer Brake Controller. …
2. Best for Serious Towers: Tekonsha P3. …
3. Best on a Budget: Reese Towpower. …
4. CURT Venturer Electric Trailer Brake Controller (51110) …
5. Tekonsha Primus IQ. …
6. Draw-Tite I-Stop IQ. …
7. Reese TowPower Brakeman. …
8. Hopkins INSIGHT.

When should the trailer brake controller gain setting be adjusted?

The gain on your trailer brake controller must be set every time your trailer’s weight changes. The gain is what adjusts the amount of braking force that the electric brakes provide. If not set correctly, it could create a dangerous situation.

Why do my electric trailer brakes not work?

First, check the vehicle and trailer connectors for corrosion. … If there is a bad ground connection the trailer brakes will not work. Next, check the brake controller wiring. Sever the blue brake output wire, leaving enough room to splice it back together when testing is done and then apply the manual slide.

What are two of the most common trailer braking systems that require an electronic controller?

Types of Brake Controllers The two most commonly used trailer braking systems are Time Delay Brakes and Inertia Brakes. Inertia brakes use an accelerometer to detect changes in momentum. The trailer brakes are applied based on these momentum changes.

Can I ground trailer brakes to frame?

You should be able to ground the brake magnets to the frame of the trailer and have them work fine. Or you can try running a jumper wire back from the ground wire of the magnet back to the main ground of the trailer frame.

Can you wire electric trailer brakes backwards?

Expert Reply: Trailer electric brake magnets are non-polarized. When installing an electric brake assembly, like the Electric Trailer Brake Assembly, Left Hand # AKEBRK-35L, either wire can be used for the brake signal and the ground wire, it will not matter which wire is used for which.
