Right-Click. Select the Viewport. Right-click. Select Display Locked >> Yes.Use the Properties Command. Select Modify >> Properties to open the Properties window. Select the Viewport. Change the Display Locked property of the viewport to Yes.

How do you freeze a layer in viewports except one?

When you are in a viewport and you go to the Layer Properties Manager, you will find a new option when you right-click on any layer. Under VP Freeze Layer, you will find a new option which is used to viewport-freeze the layer in all viewports except the current one.

What does freezing a viewport do?

Type in LAYFRZ > Settings > Viewports and ensure VPfreeze is selected. VP freeze will freeze layers in selected viewports, Freeze will freeze layers in all the viewports. The second way to accomplish this is to use your layer manager.

How do I freeze a layer in AutoCAD?

To freeze a layer, click the snowflake icon to the right of the yellow light bulb. When you freeze a layer, the visible effect is the same as turning a layer off. The difference, however, is that when you freeze a layer, AutoCAD releases it from memory.

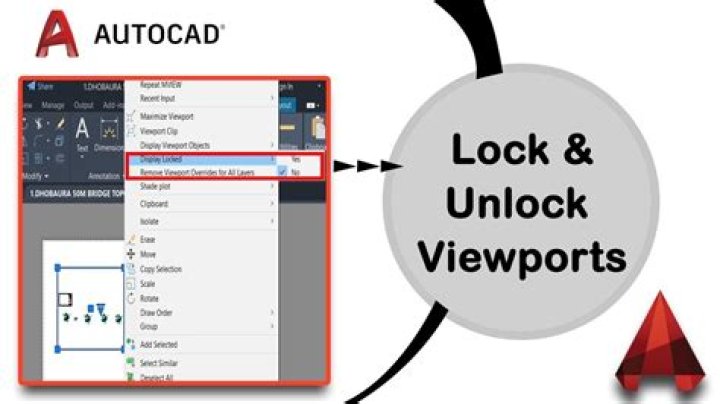

How do you lock a viewport in paper space?

Method #1: The most common method is also the easiest. Select the Viewport, then click on the Lock icon next to the Annotative Scale control in the Status Bar. Make sure the icon is blue and the shackle is in the locked position!

Which layer setting make sure that layers are automatically frozen in any new viewport?

Click a layout tab. Click Home tab Layer panel Layer Properties. In the Layer Properties Manager, select the layer or layers you want to be automatically frozen or thawed in new viewports you create. For example, you can restrict the display of dimensions by freezing the DIMENSIONS layer in all new viewports.

How do you lock a viewport in Civil 3d?

Find “Viewport Object Menu” and expand this section. On the left expand “Shortcut Menus”. Expand “Context menu for edit mode”. On the right highlight and hold down on “Display Locked” under “Viewport Object Menu”.

Why can't I freeze a layer in Autocad?

Make sure that the layer is not current before attempting to freeze it. Use the LAYFRZ command instead. It is similar to turning off layers or freezing layers through the Layer Properties Manager, but instead of turning them off by name, you select objects on the layer(s) you wish to freeze.

How do you unfreeze a layer in AutoCAD?

1. Click Home tab Layers panel Layer Properties. Find.
2. Select the layers you want to freeze or thaw.
3. Click the icon in the Freeze column to set the status of the selected layers. = frozen. = thawed.

What is common to freeze and lock option in layer?

If you plan to switch between visible and invisible states frequently, use the On/Off setting. You can freeze layers in all viewports, in the current layout viewport, or in new layout viewports as they are created. Locks and unlocks the layers. You cannot edit objects on a locked layer.

Article first time published on

How do I lock a background in Autocad?

1. Click the Model tab.
2. Do either of the following: Click Home tab Layers panel Lock. Find. Click Home tab Layers panel Unlock. Find.
3. Select an object on the layer you want to lock or unlock.

How do you freeze layers in Civil 3d?

1. Click Home tab Layers panel Layer Properties. Find.
2. Select the layers you want to freeze or thaw.
3. Click the icon in the Freeze column to set the status of the selected layers. = frozen. = thawed.

What is new VP freeze?

New VP Freeze will freeze the chosen layer in any new viewports that are created after the layer is chosen to be frozen.

How do I hide an object in a viewport in AutoCAD?

1. Do one of the following: Click the Hide All but Selected Objects in Viewport icon . At the command line, type HIDESELECTEDINVP and then press Enter.
2. In the model, select the items you wish hide.
3. Right click or press Enter.

How do I lock a viewport in Autocad 2021?

Selected layout viewports are locked.Shortcut KeyNone

How do you unlock a bricscad viewport?

Select the viewport. In the Properties panel, change the Display locked option to Yes.

How do I lock my zoom viewport?

When you lock the display of a layout viewport, you can still perform a zoom, but the result of the zoom is applied to the entire layout, leaving the viewport scale in the layout viewport unchanged. Select the border of a layout viewport. Right-click and choose Display Locked Yes.

How do I lock a viewport in AutoCAD 2020?

Selected layout viewports are locked.Shortcut KeyNone

How do I lock a viewport in AutoCAD 2018?

Learn Autocad tutorial how to lock and unlock viewport: 1. Type mv (enter) 2. Type lock (enter) and choose ON 3. Select viewport to locking To unlock viewport 1.

How do you lock a viewport in Draftsight?

1. Type Viewport.
2. Specify the Lock option.
3. Specify On to lock or Off to unlock.
4. In the graphics area, select the Viewports to which the settings should apply.

When to draw isolate or hide?

1. Select the objects in the drawing that you want to isolate.
2. Right-click, and click Isolate Objects Isolate Selected Objects. Alternatively, you can click on the right side of the drawing window status bar, then click Isolate Objects, and select the objects you want to isolate.

When working in a layout of a viewport is activated and locked?

When working in a layout, if a viewport is activated and locked and you accidentally zoom in or out, what happens to your viewport scale? Nothing. The viewport scale remains the same. The viewport scale returns to the default 1:1 scale.

When creating an elliptical arc in a drawing which default drafting rules must you follow?

Draw an Elliptical Arc Using Start and End Angles Specify endpoints for the first axis (1 and 2). Specify a distance to define half the length of the second axis (3). Specify the start angle (4). Specify the end angle (5).

What is the difference between freeze and lock in AutoCAD?

A frozen layer cannot be set as current. Originally Answered: What is the difference between the freeze and lock option in layers in AutoCAD? Lock means the item will not move or change position. Freeze means it will stay in the same position but will be movable.

How do I lock a group in AutoCAD?

If necessary, open the Layer Properties Manager by clicking Home tab Layers panel Layer Properties. Click the layer group whose properties you want to change, and specify properties: If you want to… right-click, select Lock, and select Lock or Unlock Off.

How do you isolate a layer in AutoCAD?

Press the CTRL key and then in the Layer Properties Manager, select those two layers. Then, right-click to display the shortcut menu and choose Isolate Selected Layers.

How do I turn off all layers except one in AutoCAD?

Access the LAYWALK command to open the LayerWalk – Layers: n dialog box, shown in Figure 5A-1A. The list box shows all layers in the drawing. Select a layer from the list to turn off all the layers except the selected layer.

How do you move an existing object to a different layer?

1. Click Home tab Layers panel Move to Another Layer. Find.
2. Select the objects you want to move.
3. Press Enter to terminate object selection.
4. Press Enter to display the Mechanical Layer Manager.
5. Select the layer the objects should be moved to.
6. Click OK.

How do I lock multiple layers in Autocad?

In the Layer Properties Manager Tip: To change multiple layers, use the Shift or Ctrl keys to select the layers. Then click the padlock for any of the selected layers and all the layers are set.

What is the command for adding new layer?

To create a new layer press Ctrl Alt Shift N (Mac: Command Option Shift N) on your keyboard.
