A water pressure regulator valve works in much the same way as an outdoor hose faucet. A screw at the top allows you to increase or decrease the flow of water through the valve. Tightening the screw restricts water flow and hence places a tighter limit on the maximum water pressure.

How does a water line pressure regulator work?

How does it work? An adjustable spring loaded diaphragm inside a water pressure regulator reduces the pressure of the water in the line within the valve body. Water coming into the valve is constricted and then released at a reduced pressure.

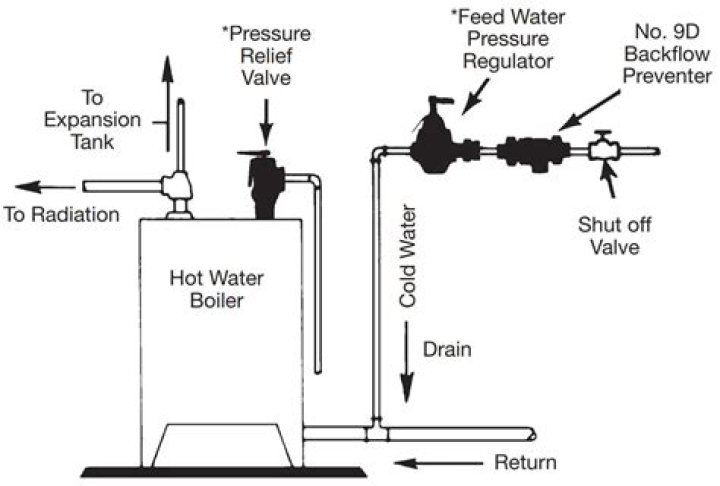

How does a feeder valve work?

The water feed valve adds water to the boiler when needed: If water pressure in the heating boiler drops below 12 psi, the water feeder valve will add makeup water to the system automatically, until it reaches 12 psi inside the boiler.

How do I know if my water pressure regulator is bad?

1. Low or Fluctuating Water Pressure. …
2. No Water Pressure. …
3. Hammering or Vibrating Noises. …
4. A Leak in your Flower Bed. …
5. High Water Pressure.

What happens when a pressure regulator valve fails?

Symptoms of Regulator Failure If you have a regulator and it fails, you’ll notice an immediate reaction in your home. For instance, you’ll experience irregular water pressure that is hard to control with your sink, toilet, or bathtub faucets. The pressure is likely too high or too low.

How do I check my water pressure without a gauge?

1. Turn on the sink and shower in the bathroom.
2. Flush the toilet once.
3. Watch the flow of water in the shower.
4. If pressure visibly drops when the toilet is filling back up, then there is a good chance that the water pressure in the home is compromised.

Can I install a water pressure regulator myself?

Water pressure regulators can be a fun project to DIY if you have the know-how. The part usually costs around $50, while hiring a professional plumber to install one ranges from $250-350. Here’s an overview of how it’s done: Find the proper location.

Is 70 psi too much water pressure?

How High Is Too High? The ideal water pressure level is between 50-70 PSI. If your water pressure goes above 70 PSI (even occasionally), you should install a pressure regulator to your main water line. … The gauge will read the pressure amount currently being forced out.

How long do water pressure regulators last?

Generally speaking, most regulator valves have a life span of between 7 and 12 years. If you have recently noticed any abrupt changes in the water pressure in your home, an internal component in your pressure regulator may have failed.

How do I adjust my water pressure regulator?

The screw is your adjuster and it can be maneuvered only by loosening the locknut. As you tighten the screw, the water pressure will become greater and as you loosen it, the water pressure will lessen, so turn the screw clockwise to increase the pressure, or turn it counterclockwise to decrease the pressure.

Article first time published on

Can pressure regulator increase pressure?

With most single-stage regulator regulators, except those that use a pressure compensated design, a large drop in inlet pressure will cause a slight increase in outlet pressure.

How do you adjust a watt pressure regulator?

To reset the regulator valve: Remove the fast fill lever cap, and loosen the lock nut. To raise the reduced pressure – slowly turn the adjusting screw clockwise until the system gauge indicates the pressure required. To lower the reduced pressure – turn the adjusting screw counterclockwise.

Do pressure regulators restrict flow?

Pressure regulators are not designed to control flow rates. Although pressure regulators used in flowing systems inherently affect the flow by controlling the pressure, they are not designed to act as flow controllers.

Why does my water regulator make noise?

A water pressure regulator can become clogged with debris that gets into the main water supply or city water pipes. … A moaning sound can be heard when the water pressure regulator is attempting to send water pressure into the home, but cannot because of a clog in the system.

How often do water pressure regulators fail?

The life expectancy of a water pressure regulator is most commonly in the range of 10 to 15 years. However, you will see a regulator malfunction at 3 years and you will see a regulator still working at 20 years old.

What is the red needle for on a water pressure gauge?

Some models of water pressure gauge will have an extra needle (usually red) called a “lazy hand”. When the gauge is initially set, the lazy hand (red) sits right against the regular (black) needle. When the needle rises, it pushes the lazy hand up with it.

Why do I suddenly have no water pressure?

If the low water pressure seems restricted to a single faucet or showerhead, the problem isn’t with your pipes or water supply, but with the fixture itself. If it’s a sink, the most common causes are a clogged aerator or clogged cartridge. … These cloudy spots block the flow of water and decrease water pressure.

What is the normal water pressure for a house?

Normal psi for a home pipe system is between 30 and 80 psi. While you don’t want the psi to be too low, it violates code to be above 80. Instead, you should aim for a psi that’s between 60 and 70.

How much does a plumber charge to install a water pressure regulator?

It costs between $280 and $376 to install a water pressure regulator valve. This is based on an average materials cost of between $85 and $103 per valve, plus a labor cost of between $195 and $273.

What happens if house water pressure is too high?

This is a serious concern—water pressure that’s too high is difficult to contain, and could leak to plumbing leaks, worn seals, and damaged fixtures. It could even shorten the lifespan of your appliances that depend on a water connection like your washing machine, ice maker, dishwasher, and more.

Where is the water pressure regulator valve located?

Your water pressure regulator is usually located right after the main shut-off valve for your water supply. This is typically found outside the house. Once you know where the shut-off valve is, you’ll find the water pressure regulator.

How do you increase your water pressure?

Look on the main supply pipe near your water meter for a conical valve that has a bolt sticking out of the cone. To raise pressure, turn the bolt clockwise after loosening its locknut. Keep an eye on the gauge to make sure the pressure is within bounds, then retighten the locknut.

How do I check my water PSI?

The most accurate method is to buy a pressure gauge from your local hardware store and hook it up to a hose faucet. Check the pressure when all other faucets and water-using appliances are turned off to get a baseline reading. In general, you want the household plumbing to provide between 30 and 80 psi.

How do I know if I have a high or low pressure water system?

Start by measuring the height between the bottom of your open or vented water tank and the outlet of your tap. … Water systems which operate at 1.0 bar pressure (10 m of drop) or greater are considered high pressure systems. Those with a pressure less than 1.0 bar are considered low pressure.

How does a regulator fail?

Excessive flexing of the metal diaphragm can cause a radial crack, which allows gas to escape to the atmosphere through the vent hole in the bonnet. The second and perhaps the most common type of regulator failure is the internal leak, sometimes called creep or crawl.

Is a water pressure regulator necessary?

Although it is not necessary for every plumbing installation, a water pressure regulator can be essential in situations where the municipal water supply enters the home at a very high pressure, or where water pressure is irregular.

How often should pressure regulator valve be replaced?

Make sure you replace your PRV every 4-5 years to avoid problems due to age.

Is 100 psi water pressure too high?

If the pressure of the water entering your house is 100 psi or above, it can damage the plumbing. The pressure will cause dripping faucets and leaks in the pipes. It’s also harmful to water-using appliances, such as water heaters, dishwashers, and laundry machines.

Is 80 PSI water pressure too high?

On average, the water pressure in a home should not be more than 80 psi. When water pressure reaches over 80 psi, signs of trouble may start to occur. High water pressure can be caused by: … Thermal expansion, due to a water heater heating up.

What should a pressure reducing valve be set at?

Most valves have a locking nut. Once you unscrew this nut, you will be able to turn the adjustment screw, knob, or bolt. Adjust it until the pressure shown on your gauge reaches the desired level. For most residential purposes, that means a pressure below 80 psi.

When should you use a pressure regulator?

If the water pressure level coming into your home from the city exceeds 80 psi, you need a water pressure regulator. Reducing the system pressure 10 to 20 psi can save thousands of gallons a year in the typical home.
