The main service panel is like the switchboard for all the electricity in the home. It receives the incoming power from the utility company and distributes it to each of the circuits that supply the various lights, outlets, appliances, and other devices throughout the house.

Is an electrical panel the same as a breaker box?

When you open an electrical panel (also known as a circuit breaker panel or a breaker box), you’ll see rows of switches. These are breakers, each for an individual circuit. In case of a short, a breaker will trip and cut off electricity to its circuit. To reset the circuit only requires resetting the breaker.

How long does electrical panel last?

1. ELECTRICAL PANEL IS OVER 25 YEARS OLD. The average lifespan for an electrical panel can range from 25-40 years.

What is the purpose of a breaker box?

The main circuit breaker panel is essentially a big switch that safely distributes the supply of power to your house. The circuit breaker box also houses other smaller sub-switches that connect with specific areas of your house. These small switches are called breakers and their function is to ensure electrical safety.

How much does it cost to upgrade an electrical panel?

AmperageCosts400$1,500 – $4,000

Do I have room in my electrical panel?

Look Inside. If all of the slots inside of your fuse box have breakers, you may automatically assume it is full. … If you see 20/40 notation, then that means that you have a box with 20 spaces for breakers and the ability to operate with 40 circuits.

How long does a breaker box last?

Even though your electrical panel may be functioning properly, your breaker box may still be out of date. Electrical service panels should be replaced every 20 to 30 years. If you’ve been in your home that long, or if you moved into an existing home, your panel may be outdated.

Can a house have a fuse box and a breaker box?

Although made of older technology, a properly used fuse box can be as safe as a circuit breaker panel. The electrical system of many older homes may still use fuses, but all new homes have circuit breakers installed.

What are the types of panel boards?

• Lighting and appliance branch-circuit panelboards.
• Power panelboards (also called distribution panelboards)

Is fuse box different than breaker box?

The biggest differences between fuse boxes and circuit breakers are the method and materials they use to do this important job. Fuse boxes melt down wires inside replaceable fuses, while circuit breakers simply disconnect wires until you wiggle them back into place.

Article first time published on

Are fuse boxes still legal?

Electrical codes change every three years to continually improve the safety of electrical systems that are installed. As a result no fuse panel currently in use in any home in the United States would comply with minimum code standards in effect today.

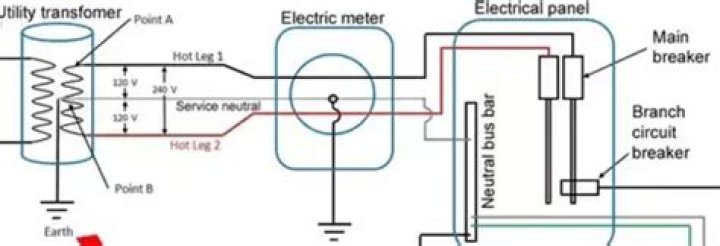

How does a home electrical panel work?

Power leaves the electrical panels on hot or energized wires, works through the device or outlet, and then the current comes back to the panel along neutral wires. … So power comes from the electrical company’s line, through the meter located on the outside of your home, and into your service panel.

What type of panel is the electrical panel in your house?

Main Electrical Panel A main breaker panel is used to control the electricity that’s distributed throughout your home. It’s the most commonly used type of panel. Not only does it distribute current to different areas and rooms in your house, but it also protects the circuits and identifies the amperage capacity.

How often should electrical panels be checked?

How often you get your electrical system inspected depends on how old your home is and how many appliances you have in it. Most electricians recommend every 3 – 5 years.

How much does it cost to upgrade electrical panel to 200 amp?

The average cost of upgrading an electrical panel to a 200 AMP service is $1,500 – 2,800. An electrical panel upgrade is often necessary when homeowners find that they can no longer add a new appliance or a device that uses electricity because their current electric panel does not have enough capacity.

Does homeowners insurance cover electrical panel replacement?

As long as your electrical panel and wiring are all up to code, your homeowners insurance will likely include protection if your panel begins to malfunction or poses a significant risk to your home.

Does upgrading your electrical panel increase house value?

A panel upgrade can turn out to be costly indeed, but it’s definitely worth it. Panel upgrades are not only beneficial to the safety of your home, but they can actually increase the resale value of your property and attract more interest.

How long does it take to replace an electrical panel box?

Electrical panel replacement typically takes 8 to 10 hours which includes 200-amp capability, a new panel with main breaker and ten circuit breakers, labor, and all required materials. The biggest cost for most electrical work is labor.

How many amp panel do I need?

Most homes require an electrical service of at least 100 amps. This is also the minimum panel amperage required by the National Electrical Code (NEC). A 100-amp service panel will typically provide enough power for a medium-sized home that includes several 240-volt appliances and central air-conditioning.

What is the cost of rewiring a house?

The cost to rewire a house runs from $1,500 to $3,000 for a small house, $3,500 to $8,000 for a medium-sized house, and $8,000 to $20,000 for a larger home; or $7 per linear foot of wall space plus the cost of the electrical panel at $1,200 to $2,500. Get free estimates from electricians near you.

Can a breaker box go bad?

The simple answer is that, yes, circuit breakers go bad, so your suspicions may be well-founded. Just like any other essential device in your home (e.g. your water heater, HVAC system, etc.), circuit breakers can quit working properly.

Can you add a breaker to a live panel?

Yes-but if you have to ask the question, you don’t have the skills to do it safely. Most breakers ‘snap in’ to the internal bus in a breaker panel -you don’t have to touch anything ‘live’. then you can ‘hook up’ the new ‘hot’ wire with the new breaker off (single pole breaker).

How do I know what size electrical panel I need?

Multiply the square footage of your home by 3 to determine the light and receptacle watts needed. For example, if your home’s square footage equals 1,650 square feet, multiply that number by 3 for a total wattage need of 4,950 watts (1,650 x 3 = 4,950).

Can you fill a breaker box?

If your home’s electrical service panel (breaker box) is full and you need more room to add new circuits, installing a subpanel might be the way to go. Subpanels certainly can add convenience and plenty of room for installing new circuits, but your current system must have enough capacity to support a subpanel.

Where are panel boards used?

A distribution board (also known as panelboard, breaker panel, electric panel, DB board or DB box) is a component of an electricity supply system that divides an electrical power feed into subsidiary circuits while providing a protective fuse or circuit breaker for each circuit in a common enclosure.

What is a lug panel?

Main lug panels do not have a main breaker. Instead, the line wires run to a type of electrical connector called a lug. This type of electrical panel requires a separate disconnect. … It holds separate circuit breakers from the main breaker panel. It’s usually located near the area it powers.

What is a panel board wood?

panel board -or wood composite -denotes any product, which is manufactured on the basis of mechanically chopped, milled and grinded (and refined) wood [veneers, strands, particles, fibres, etc. … During the transformation into plane panel boards, the major problems of solid wood become ineffective.

Is it illegal to have an old fuse box?

Are old fuse boxes illegal No, old fuse boxes are not illegal. However, if you do have an old fuse box in your property please consider health and safety.

What if my house doesnt have a breaker box?

Check your garage for the circuit breaker or fuse box. It might also be in a storage room, utility room, the basement, or a hallway. If you can’t find your box in one of these areas, look again or see if you can spot where the power connects to your house from outside. Check for your box in the surrounding areas.

Can I sell a house with a fuse box?

Yes, you can sell a house with an old fuse box. But should you? Selling an older home that still has its original wiring and an old fuse box may not be easy, but it’s definitely doable.

Why has my fuse box tripped?

If your fuse switch has tripped after you’ve been using a lot of appliances in one room, you’ve likely overloaded the circuit. The simple answer is to unplug some of them and move the tripped fuse switch in your fuse box back to the ‘on’ position.
