The Photogate works by projecting an infrared beam to a sensor. When the beam is blocked the sensor stops sending a signal, which illuminates an LED on the top of the gate as well as triggering the data collection software to display a blocked message in the data collection area.

What does the Photogate actually measure?

Photogates are a timing device that measure times of the changes in state of an infrared beam that is blocked by a flag of known length, as well as the times the beam is unblocked. Using the flag length, and the blocked time, students can calculate speed.

Is a Photogate a motion sensor?

Motion Detectors and photogates can both measure motion, but both have advantages for certain experiments. … Depending on the photogate timing mode being used and the object passing through the gate, other measurements such as position, velocity, and acceleration may also be calculated.

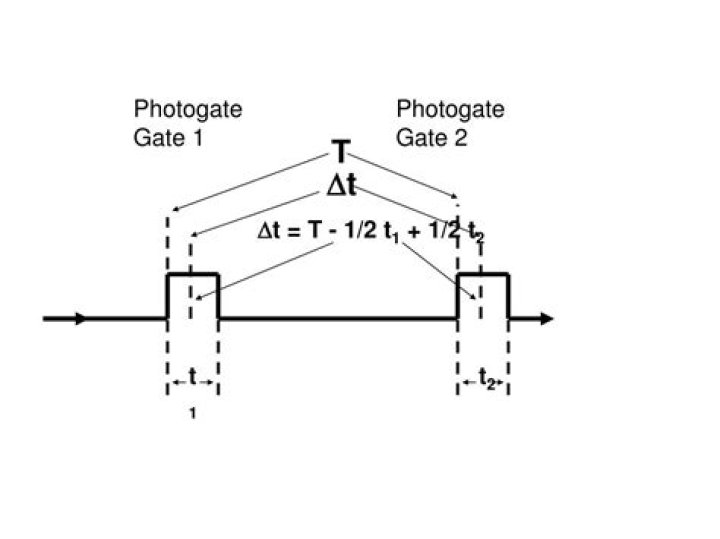

How does a Photogate measure acceleration?

1. Use default Object Velocity sensor channel on both photogates.
2. Collect data using time-based data collection.
3. Use the velocity and time measurements for each photogate to calculate the acceleration (Change in Velocity/Change in Time)

How is Photogate used to measure velocity?

In this application a card attached to a moving object breaks the beam of the photogate timer providing the time for the card to pass. The length L of the passing card can then be divided by this time to yield the average velocity (or speed) of the passing object: Vavg = L/t.

How do you set up a Photogate?

1. Tap the Mode box or choose Data Collection from the Sensors menu.
2. Choose the appropriate mode from the drop-down menu.
3. Set the requested distance variable(s) to match the experiment, such as the length of the object or the distance between gates. …
4. Select OK.

What is the uncertainty of a Photogate?

This means that the photogate (and software) can distinguish 2 events that occur 0.1 ms apart as separate events. So, suppose that we consider the uncertainty of a photogate event as 0.1 ms.

What is Photogate Wikipedia?

photogate (plural photogates) (physics) A device that measures the time between events that interrupt an infra-red beam.

How do I set up Pasco Photogate?

First select the hardware setup icon. On the icon for the Smart gate, click on port 3 to configure this to be a connected photogate. Next, select the Timer Setup. For the available sensors, make sure the first photogate on the Smart Gate is selected and the second photogate on the Smart Gate is not selected.

What is the purpose of the phototransistor in your Photogate circuit?

An IR photogate uses a phototransistor to measure the amount of light from an optical beam originating from an IR LED. Infrared light is chosen so as to minimize any signal from ambient light sources often found in our normal working environment.

Article first time published on

What is the average acceleration formula?

Average acceleration is the rate at which velocity changes: –a=ΔvΔt=vf−v0tf−t0, where −a is average acceleration, v is velocity, and t is time.

What is the energy owned by the ball bearing when it is attached to the free fall adapter?

What is the energy owned by the ball bearing when it is attached to the free fall adapter? Gravitational potential energy.

How do you determine velocity?

To figure out velocity, you divide the distance by the time it takes to travel that same distance, then you add your direction to it. For example, if you traveled 50 miles in 1 hour going west, then your velocity would be 50 miles/1 hour westwards, or 50 mph westwards.

How does a motion detector work?

An active ultrasonic motion detector emits ultrasonic sound waves that reflect off objects and bounce back to the original emission point. When a moving object disrupts the waves, the sensor triggers and completes the desired action, whether this is switching on a light or sounding an alarm.

What is the instantaneous velocity?

Instantaneous velocity is the velocity of an object in motion at a specific point in time. This is determined similarly to average velocity, but we narrow the period of time so that it approaches zero. … The formula for instantaneous velocity is the limit as t approaches zero of the change in d over the change in t.

What is a light gate?

The Light gate is a digital switch-type sensor most commonly used in timing experiments. The Light Gate has an infrared transmitter and receiver that will detect an object passing through the ‘gate’. They can be used singly or in pairs for time, speed , velocity, acceleration and event monitoring.

What is a spark timer?

A spark timer is used to make accurate time and distance measurements for a moving object. It consists of an electronic circuit which creates, at regular intervals, a spark between two external needles. The interval between consecutive sparks can be set at either 1/10 or 1/60 of a second.

What is random and systematic error?

Random errors usually result from the experimenter’s inability to take the same measurement in exactly the same way to get exact the same number. Systematic errors, by contrast, are reproducible inaccuracies that are consistently in the same direction.

What are vernier calipers?

A vernier caliper is a measuring device used to precisely measure linear dimensions. In other words, it measures a straight line between two points.

What is a picket fence in physics?

The Photogate has a beam of infrared light that travels from one side to the other. It can detect whenever this beam is blocked. You will drop a piece of clear plastic with evenly spaced black bars on it, called a Picket Fence.

Is velocity a speed?

Speed is the time rate at which an object is moving along a path, while velocity is the rate and direction of an object’s movement. … For example, 50 km/hr (31 mph) describes the speed at which a car is traveling along a road, while 50 km/hr west describes the velocity at which it is traveling.

Can an object have an increasing velocity and a constant acceleration?

A object undergoing a constant acceleration has a constantly changing velocity. If the acceleration always points in the same direction as the velocity, the trajectory will be no different than if there were no acceleration, but in general acceleration will change the trajectory. Yes it can.

How does a smart timer work?

The Smart Timer can calculate velocity before and after a collision between two carts using a single timer. … The stopwatch mode lets you use the timer as an electronic stopwatch. The Smart Timer can measure speed and acceleration for both linear and rotational motion experiments.

How do you use timer on Photogate?

The timer starts when the beam is interrupted, then stops when it is interrupted a second time. The timer can also be started manually by pressing the white Start/Stop button and it will stop when an object breaks the photogate beam.

What is a motion detector in physics?

The Motion Detector is used to measure position, velocity, and acceleration of moving objects.

How does a phototransistor work?

The working principle of a phototransistor is similar to a photodiode including an amplifying transistor. The light falls on the base terminal of a phototransistor then it will induce a little current then the current amplified through the action of a normal transistor, which results in an extensively large.

What is a phototransistor and how does it work?

The phototransistor is a semiconductor device that is able to sense light levels and alter the current flowing between emitter and collector according to the level of light it receives.

Can a phototransistor be used to amplify signals?

A photo-transistors is a bipolar semiconductor device that converts light energy into electric current. photo-transistors can be used in any electronic device that senses light. Because photo-transistors, like any transistor, amplify the signal, they produce a higher current than photo-diodes. …

What is ascent time?

Time of ascent is the time taken by the body to reach the maximum height from the initial position. Complete step-by-step answer: For a projectile motion, the time to reach maximum height is called time of ascent. … During time of ascent motion is along y axis.

How do you find acceleration without changing direction?

1. To calculate average acceleration when direction is not changing, divide the change in velocity by the change in time using the formula:\begin{align*}\text{acceleration}=\frac{\Delta v}{\Delta t}\\\end{align*}
2. The SI unit for acceleration is m/s2.

What is acceleration unit?

Unit of acceleration is the metre per second per second (m/s2). Definition. The snewton is that force which, when acting on a mass of one kilogramme, produces an acceleration of one metre per second per second.
