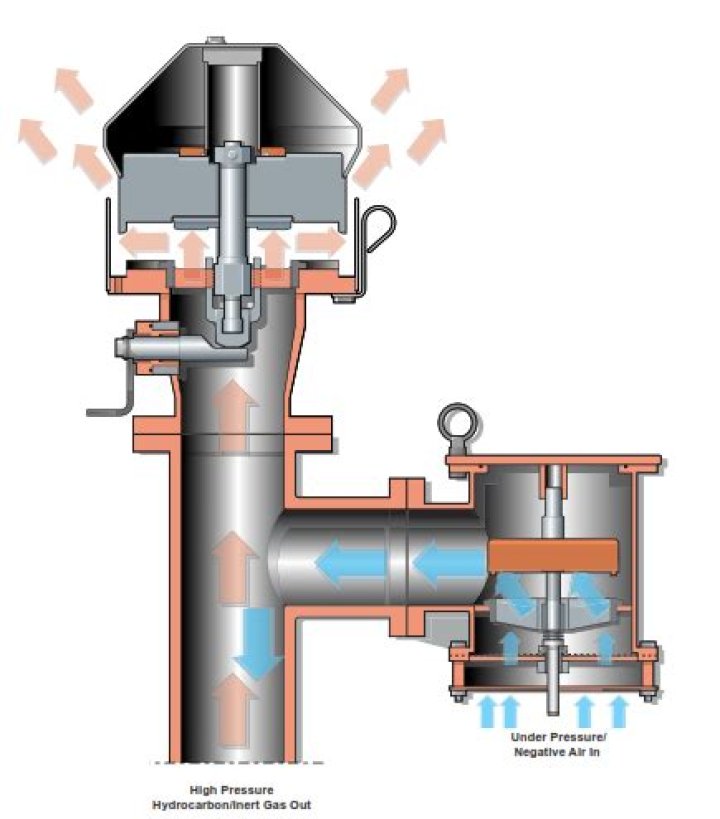

The purpose of Pressure-Vacuum (PV) valves is to protect cargo tanks from excessive over/under pressure. … A PV valve facilitates the flow of small quantity vapour during Breathing/transport as well as higher flow rates during loading, thereby allowing tank atmosphere pressure to stay within a preset level.

How do you test PV valves?

1. Set the value of the pressure gauge to 0.
2. Turn the switch to the pressure side to allow air supply.
3. Check and compare the reading on the pressure gauge with that on the PV valve itself.
4. Turn the switch to the vacuum side.

What is PV valve setting?

Pressure vacuum valve or PV valve in the ventilation system will prevent either over or under pressure. They are set usually so that tank pressure of about 0.14 bar will lift the main valve (The smaller valve will lift along with it) and release excess pressure.

What is the difference between PV breaker and PV valve?

Pressure vacuum valve operates at Water Column 1400 mm and at vacuum of -250 mm of water column. PV Breaker operate at water column of 1600 mm to 1800 mm and at a vaccum of 400 mm of water column.

How does a pressure vacuum vent work?

A device, usually referred to as a “P/V vent,” installed at the discharge end of a vent pipe connected to a gasoline storage tank, to regulate the pressure at which vapor is allowed to escape from the tank, and the vacuum at which outside air is allowed to enter the tank.

What is the maximum allowed oxygen content in a cargo tank?

Oxygen content to less than 8% is required to be in the tanks containing flammable cargoes. And to be able to bring the cargo tank to that oxygen level, Inert gas containing less than 5% of oxygen is introduced in the cargo tank.

What is high velocity vent valve?

marine. A device to prevent the passage of flame, consisting of a mechanical valve which adjusts the flow opening in accordance with the pressure at the inlet of the valve in such a way that the efflux velocity cannot be less than 30 m/s.

What type of liquid is used in PV breaker?

PV Breaker works on the principle of set water column filled in it. It allows the pressure to release from common IG line by emptying out the filled water in PV breaker. It also allows to break the vacuum by allowing the air inside the tanks through common IG line.

What are breather valves?

Breather Valves, also known as direct acting Pressure/Vacuum Relief Valves, are special types of Relief Valves which are specifically designed for tank protection. … The Valves prevent the build up of excessive pressure or vacuum which can unbalance the system or damage the storage vessel.

What is inerting and purging?

Inerting and purging refer to replacing the atmosphere in a line, vessel or other area with an inert atmosphere, eg the space above liquid fuel in a fuel tank, to reduce the likelihood of combustion. Purging of supply lines, pipelines and tanks is a common step before commencing production or prior to shutdown.

Article first time published on

What is Deck Seal?

Deck seals are a safety device fitted on oil tankers to prevent explosive hydrocarbon vapours to travel from the Cargo area to the Engine area (where the sources of Ignition are present.)

What is vapour return line?

The purpose of vapour return systems is to ensure that cargo vapours are not released to the atmosphere. Vapour return lines on chemical tankers are either connected to the vessel’s PV line or, if the vessel is fitted with an inert gas system, to an extension of that system.

What is slop tank in ship?

Slop tanks are present onboard tanker to store oily water mixture from cargo tank washing. The number of slop tanks depends on the Dead weight Tonnage (DWT) of the vessel. Sludge tank. Located in engine room, this tank is used to store sludge produced after treating fuel or lube oil through purifiers.

What is cargo tank purging?

The introduction of inert gas into a tank already in the inert condition, with the purpose of further reducing the existing oxygen content; and or reducing the existing hydrocarbon gas content to a level below which combustion cannot be supported if air is subsequently introduced into the tank.

Why cargo tanks are inerted?

Why inerting of cargo tanks ?: The term inerting/purging generally refers to the replacement of air in a cargo tank by an inert gas, in chemical tankers most often by nitrogen, in order to prevent the formation of flammable vapours, oxygenation of the product, reduce humidity in the tank and/or protect the quality of …

Why bunker tanks are not inerted?

If the bunker tanks cannot reach 60 degree Celsius, it cannot produce cargo vapours that are rich in hydrocarbons; thus no explosion can occur. And thus, inert gas is not being used in bunker tanks.

What causes oil to come out of the breather?

Pressure leakage from worn seals causes the oil to be forced down into the inlet passage and back through to the inlet filter. Typically you will get an excess of oil being blown out through the crankcase breather too as the cylinder head/rocker cover is pressurised blowing back down to the crankcase.

What is a bleeder valve?

What is a Bleed Valve? A bleed valve is a valve that typically utilizes a threaded bleed screw to open or close. Generally, these valves vent pressure or release media from within a system. This is often necessary before starting maintenance work on a line that contains pressurized liquids or gasses.

Why does a gearbox need a breather?

Breather allows the hot air to escape and cool air to enter into the transmission to prevent overheating issue. Failure of breather assembly can lead to pressure buildup inside transmission and further leading to leakage from transmission oil seals.

How do you reset a PV breaker?

1. Step 1: Turn off your solar inverter. …
2. Step 2: Turn off your Solar AC disconnect. …
3. Step 4: Turn Off Solar Breaker in the Main Electrical Panel. …
4. Step 5: Wait a minute, the Solar Energy System is Now Off. …
5. Step 6: Turn On Solar Breaker in the Main Electrical Panel.

Why inerting is carried out on oil tanker?

Oil tankers carry oil of different grades and quality, having the property to produce flammable vapours and gases when loaded for transportation. Even with no cargo on board, there can be harmful flammable gases present in the hold. For safety against such explosions, an Inert gas system is used onboard.

How does crude oil wash work?

Crude oil washing (COW) is washing out the residue from the oil tanker using the crude oil cargo itself, after the cargo tanks have been emptied. Crude oil is pumped back and preheated in the slop tanks, then sprayed back via high pressure nozzles in the cargo tanks onto the walls of the tank.

Why purging is done?

Purging ensures that you have control over which gases are in your gas delivery system, and therefore which gases are being exposed to internal components, sensors, or other equipment. It also helps to prevent unwanted reactions from taking place, which can greatly increase the service life of related components.

What is purge pressure?

Purge is the process used to remove any potentially hazardous gas from the interior of the enclosure prior to pressurization. … Pressurization is the process of creating a higher internal pressure that is provided by a protective gas supply, preventing any hazardous gas or dust from entering the enclosure.

What is drying in tanker?

Drying of Hold Spaces The drying operation of a hold space is carried out in order to prevent tank insulation damage due to condensation of moisture inside it prior to initial cool down operation and periodically during a voyage.

What are the types of deck seal?

Deck water seals come in three variants known as wet type seal, semi-wet seal and dry type seal.

How do you seal a deck?

Apply the deck sealer with a natural bristle brush. A roller is faster, but brushing helps force the sealer into open pores and grain. Make sure to get the sealer into joints where two boards butt together. Apply the deck sealer to three or four boards at once, working their entire length.

What is IMO ship type?

IMO Ship Types are used for Product/Chemical Tanker Classification. The suitable type based on the Intended Products/Chemical Substance carried by the vessel.

What is the function of vapour line?

The vent pipes from cargo oil tanks. They are led to pressure/vacuum valves which are usually mounted on standpipes some distance above the deck.

How many venting systems should there be?

Cargo tanks of a chemical tanker are required to be provided with venting systems to prevent both over and under pressurisation of the tank. Two types of venting system are specified by the Code, namely “open” and “controlled”.

What is ship sludge?

As explained above, sludge is the residual waste generated during the normal operation of a vessel mainly resulting from purification of oil (i.e. when the FO goes through purifiers) and Oily Bilge Water usually results from leakages, maintenance work and may frequently be contaminated by detergent / solvents etc.
