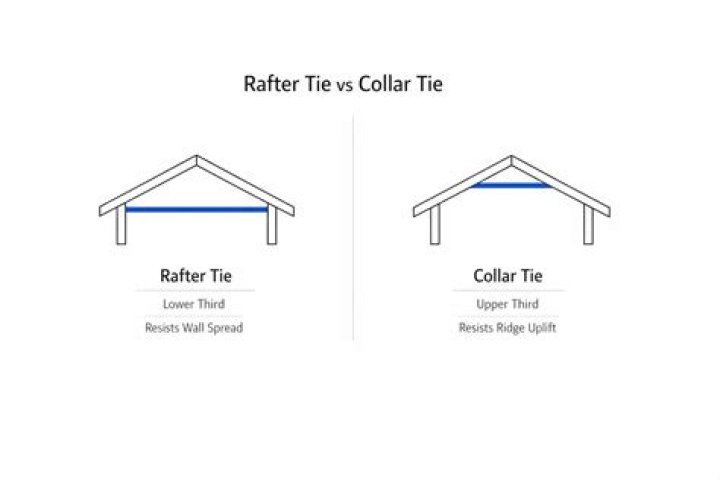

Rafter ties resist the outward thrust that rafters exert on the exterior walls. They help keep walls from spreading due to the weight of the roof. When the walls spread, the ridge board might sag. A sagging ridge is one indication that the roof structure may lack adequate rafter ties.

How are rafters attached?

All rafters are attached with framing nails, usually 10d or 12d, driven in with a hammer, but specific installations vary according to the type of roof. Some rafters have metal plates at attachment points for extra support. … Nail each rafter to the ridge board with the plumb cuts flush against the sides of the ridge.

Are rafters better than trusses?

Once in place, rafters use up more wood, so they weigh more, but trusses are stronger because they are more efficient and have the capacity to produce maximum strength using fewer materials in the end.

What's the difference between a truss and a rafter?

Rafters contain two main outer beams which support the roof structure. On the other hand, trusses come with multiple beams which add more support. Moreover, as said earlier, the entire weight of the roof is equally shared by a series of triangles inside the main frame.

Which way do roof rafters run?

An important thing to know about joists is that they usually run in the same direction throughout a house. If the visible joists in a basement or attic run east to west, for example, you can be fairly certain the invisible joists under the bedroom floor also run east to west.

What does a roof truss sit on?

The trusses are fist stacked on top of the walls, either by hand or with a crane. These trusses went up in about four hours. They are on 24-inch centers. The trusses are tied to the walls with small metal plates.

What does a rafter sit on?

In a sloped roof, common rafters run from the peak of the roof down to the top of the exterior walls of the building. At the peak, the rafters are nailed to a ridge board, and at the top of the wall, rafters are attached to the horizontal top plate of the wall framing.

What is the most common roof pitch?

Conventional slope roofs are most common with residential roofs. This means the slope has a pitch between 4/12 and 9/12 on most homes.

Is it cheaper to build or buy roof trusses?

Lower cost – Building with roof trusses is 30% to 50% cheaper than building a stick roof.

How much does a 24 foot roof truss cost?

Span (in feet)Common Types*24$75 – $9530$90 – $11036$120 – $14040$135 – $155

Article first time published on

How far can a 2x6 rafter span?

What is this? A 2×6 rafter can span 14 feet 8 inches when spaced 16 inches apart with No. 1-grade southern pine lumber on a roof with a 3/12 slope or less with a maximum live load of 20 pounds per square foot and a dead load of 15 psf.

How can I strengthen my roof?

1. Apply construction adhesive. …
2. Stiffen Trusses. …
3. Brace gable ends. …
4. Clean out gutters. …
5. Repair and caulk flashing. …
6. Check for loose or damaged shingles. …
7. Lift shingles or underlayment. …
8. Remove TV or satellite antennas.

Are roof trusses load bearing?

Most exterior walls are load bearing, but not all. It all comes down to where the roof trusses/rafters and floor joists/trusses are bearing.

What's the difference between joists and rafters?

The main difference between Joist and Rafter is that the Joist is a horizontal structural element transferring load from flooring to beams, typically running perpendicular to beams and Rafter is a structural members in architecture.

Are ceiling joists load bearing?

Walls that run perpendicular (at a 90 degree angle) to the ceiling joists are load-bearing. Walls that run parallel (in the same direction) as the ceiling joints are non load-bearing. Ceiling joists are spliced over the wall.

What are 3 types of rafters?

• Auxiliary rafters. These are sometimes used to support a principal rafter.
• Hip rafters. These span from the building’s outside corners to the ridge board at a 45-degree angle.
• Valley rafters. These rafters are located at the building’s inside corners at a 45-degree angle.
• Compass rafters.

What is common rafter?

Definition of common rafter : one of the rafters to which the roofing is secured.

What is hap on a rafter?

To get to the top of the ridge, I need to measure the rafters HAP, or “Height Above Plate.” Looking at the illustration (below), you can see the triangle that our construction calculator calculated.

Do roof trusses need support in the middle?

No, roof trusses do not need support in the middle. Trusses are designed to bear only on outer walls. Whether your home has 2×4 or 2×6 framed walls, a roof truss does not need interior support provided the distance between bearing walls – the span – aligns with the span rating of the truss.

Why are end trusses different?

Another way gable end frames are different from trusses placed in the interior of the structure is that frames experience perpendicular wind loads. … The roof and ceiling diaphragms transfer shear loads to the gable end frame, which transfers these loads to the end wall below and into the foundation.

What is the purpose of principal rafter in a truss?

Principal rafter (major rafter, rarely a chief rafter): A larger rafter. Usually land directly on a tie beam. Usually the purpose of having a larger rafter is to carry a purlin which supports the rafters in each bay. Sometimes the top cord (uppermost member) of a truss looks like a principal rafter.

What is purlin and rafter?

Purlin is a horizontal beam or bar used for structural support in structures, most often below the roof. Purlins are supported either by the building’s rafters or its walls. These are most commonly used in metal buildings, but in wood-frame structures, these also replace closely packed rafters.

What angle should a roof pitch be?

Conventional Pitch Roofs: Anything between 25 degrees and 47.5 degrees would be considered a conventional pitch truss. These are the easiest to construct and maintain. High Pitched Roofs: Over 47.5 degrees would be considered a high pitched roof. Higher pitched roofs often need specialist tiles and fitting methods.

How far should a roof overhang?

Two feet is the general maximum length for a typical roof overhang. This will protect a roof from most types of damage. Roof overhangs can extend farther than 2 feet, but beyond this length, they begin to lose structural integrity and require external support.

What roof pitch is considered steep?

A pitch of 9 or 10/12 and up is considered relatively steep, but some get into the high teens and low twenties, or exceedingly steep. Once the pitch is determined, the pros of steep- and low-slope roofs can be discussed. In the case of steep roofs, a number of great benefits are involved.

Why do rafters split?

Rafters can split as a result of excessive weight on the roof or damage from fallen objects, such as trees or power poles. Regardless of the cause, a split rafter must be repaired to ensure the integrity of the roof’s support system.

Why are trusses so expensive?

Perhaps the biggest reason trusses are more common is that they are over 30% cheaper than rafters. … The labor costs associated with trusses are also lower, as they don’t require the skilled labor of an expert carpenter. According to HomeAdvisor, you can expect to spend anywhere between $30 to $400 per truss.

What size rafters do I need for a 14 foot span?

As per general rules and guideline, for 10 -12 foot span, generally you need 2″×6″ size of rafter, for 15 -16 foot span, you need 2″×8″ rafter, for 18 – 20 foot span, you need 2″×10″ rafter & for 24 foot span, you need 2″×6″ size of rafter placed at 16″ apart from centre.

What is the maximum span for a 2x4 rafter?

A 2×4 can span a maximum of 6′ 7” when spaced 16” apart and used as a floor or deck joist. When used as a ceiling joist or a roof rafter, a 2×4 can span up to 7′ 3” spaced at 16”, and 6′ 4” when spaced 24” apart.

What size beam do I need to span 24 feet?

Wood beam size for a 24 foot span:- as per general thumb rule, for a 24 foot span, size of wood beam or lumber joist should be 2×16 which placed at 16″ apart from centre used for residential building or projects or construction in which depth of section of beam is 400mm (16″) and width of beam is 50 mm or 2″.

How far apart should rafters be on a lean to?

But they do tend to space rafters in one of several industry-standard increments, typically either 12, 16 or 24 inches apart. These spacing intervals are measured “on center,” meaning that the measurement is taken from the center of one rafter’s horizontal surface to the center of the next rafter.
