Weight-driven clocks are mechanical timepieces that are powered by the gravitational pull of heavy weights slowly falling down. The gravitational pull generally lasts for up to seven days, at which time the weights need to be pulled back up.

How do you use a weight-driven clock?

Generally, the heaviest weight goes on the right side, the next heaviest weight on the left, and the lightest one in the center. Many clocks use similar weights on the left, or left and center. Always put the heaviest weight on the right. When winding a weight-driven clock, turn the crank slowly to raise the weight.

How do you wind a weight-driven clock?

The most effective way to wind your clock would be to open the front door, insert the crank, hold the clock steady with your left hand, and turn the crank with your right hand. After winding the clock, set the correct time by moving the minute hand either clockwise or counterclockwise.

How does a pendulum clock with weights work?

A pendulum works by converting energy back and forth, a bit like a rollercoaster ride. When the bob is highest (furthest from the ground), it has maximum stored energy (potential energy). … So as the bob swings (oscillates) back and forth, it repeatedly switches its energy back and forth between potential and kinetic.

How does a 3 weight grandfather clock work?

The three weights provide power to the hour strike (left weight), time (center weight), and chime melody (right weight). Without these weights, the Grandfather Clock would not operate. Each weight is different and must be properly hung from the movement (left, center, right) to ensure proper operation.

How do you wind a 2 hole clock?

1. Locate the winding points on the clock face. …
2. Insert the key or crank into a winding point. …
3. Continue turning the key or crank until it won’t turn any further. …
4. Wind the other one or two winding points the same way if your clock chimes on the hour or quarter-hour.

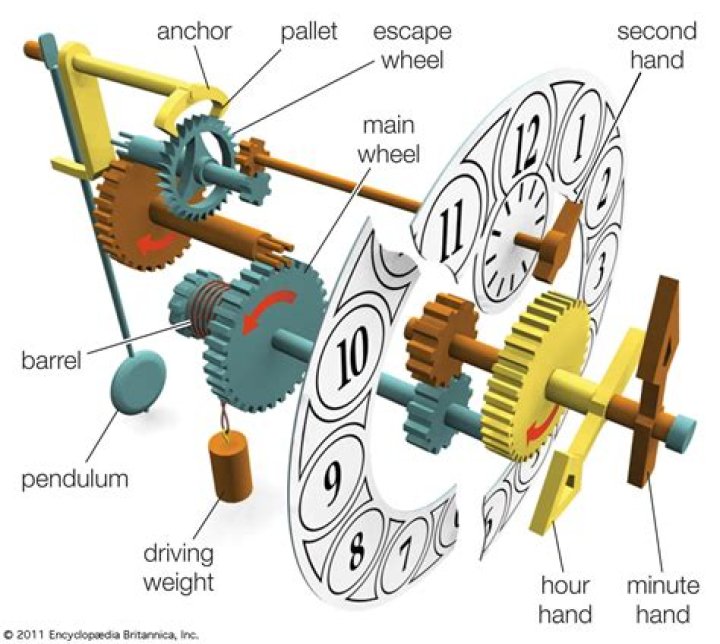

How does a clock escapement work?

The escapement is a mechanism in a mechanical clock that maintains the swing of the pendulum by giving it a small push each swing, and allows the clock’s wheels to advance a fixed amount with each swing, moving the clock’s hands forward.

Do pendulum clocks need to be wound?

Keywound pendulum clocks usually need to be wound once per week to keep the clock running. This is done by inserting the key into the clock in the holes in the dial (winding arbors). These may turn clockwise or counterclockwise to wind depending on the model.

What causes a pendulum to slow down and stop swinging?

When the swing is raised and released, it will move freely back and forth due to the force of gravity on it. The swing continues moving back and forth without any extra outside help until friction (between the air and the swing and between the chains and the attachment points) slows it down and eventually stops it.

How does a Foucault pendulum keep swinging?

To keep the Foucault Pendulum going, one must replace the energy lost with each swing. … This restores the energy lost during the swing and keeps the pendulum from stopping. It has no effect on the direction of the swing, and thus does not interfere with the demonstration that the earth is rotating.

Article first time published on

Can you over wind a clock?

Luckily, the truth is that you can’t over-wind your clock. Over-winding is basically a myth! Let’s take a look at what actually causes a clock to quit running or chiming after winding it up… … The other end hooks onto either the inside of a drum or on the corner post of the clock movement.

Why does the pendulum on my clock keep stopping?

The reason a clock pendulum often stops swinging, after being moved, is because the clock case now leans at a slightly different angle then it did at its former location. … A clock is “in beat” when the tick and the tock are evenly spaced.

Why won't My grandfather clock stay running?

Your clock needs to have an even “tick”. If the tick sounds comparable to a guy walking with a limp, it won’t run. The pendulum needs to travel an EVEN distance after each tick. If it doesn’t, it will stop.

Should the weights on a grandfather clock drop evenly?

Yes, the order is critical for proper function. On 99% of floor clocks (grandfather/grandmother) with three weights, the heavier weight goes on the right-hand chain hook or pulley as you are FACING the clock. … The two heavier weights go on the center and right hooks or pulleys.

How do you release the weights on a grandfather clock?

Keep an eye on the height of the weights and wind the clock every seven days. A clock can be overwound, resulting in the weights being stuck in the highest position. When this happens, gently move the minute hand past the quarter hour and listen for the chime. This should release the weight.

What does an escapement do?

escapement, in mechanics, a device that permits controlled motion, usually in steps. In a watch or clock, it is the mechanism that controls the transfer of energy from the power source to the counting mechanism.

How do you set a pendulum escapement clock?

Move the pendulum to the left, marking the point where the clock ticks. Next, move the pendulum to the right, marking the point where the clock ticks. As a rough estimate the two outer makes should be evenly spaced from the center point. If they are not even, you will need to adjust the escapement until they are even.

What does RA mean on a clock pendulum?

The R A on the pendulum stands for: retard/advance. It is a common pendulum bob, used by many manufacturers, worldwide. As a rule of thumb, the thread on rating nut is designed so that one full turn changes the clock about 2 minutes per week.

Why does my clock not chime?

Chime is off/will not chime: Ensure that the chime is not in the “OFF” position. If this does not solve the problem, replace the batteries. The clock chimes several minutes before the hour when the hands are moved manually: This is normal. The clocks will chime on the hour under normal operation.

Why does my clock have three key holes?

Indeed, key-wound mantel clocks are easy to recognize, as they will generally have three holes in the dial. The middle hole will wind the spring that powers the timekeeping function of the clock. The right hole, as you’re looking at the clock, powers the chimes of the clock.

How do you keep a pendulum swinging?

1. Make it heavy (and, specifically, dense). The more mass a pendulum has, the less outside influences such as air resistance will degrade its swing.
2. Put it in a vacuum. …
3. Use an escapement mechanism. …
4. Give it a large initial swing.

Why is my pendulum not swinging?

Often a pendulum clock will stop when it has been moved, bumped or even a too aggressive push to restart a pendulum. It is not broken, only out of beat.

Do pendulum clocks need batteries?

Little did I know back then, but pendulum clocks don’t need batteries at all! … It may seem like it’s just idling around, serving no real purpose as it swings to and fro, but that action is actually what keeps the clock accurate to the second.

What does Foucault's pendulum mean?

Definition of Foucault pendulum : a freely swinging pendulum that consists of a heavy weight hung by a long wire and that swings in a constant direction which appears to change showing that the earth rotates.

How Foucault's pendulum works?

Foucault’s pendulum is an easy experiment demonstrating the Earth’s rotation. … At the north or south pole, the pendulum is moving in a fixed plane (if we disregard the fact that the Earth is also revolving through space), so the plane of the pendulum seems to rotate through 360° as the Earth makes one full rotation.

Does a heavier pendulum swing faster?

A heavier pendulum will not swing faster. The mass of the pendulum will not have any effect on the period of the swing as we can observe in the next…

Is it bad to turn a clock backwards?

If your timepiece has a mechanical movement, then it is best not to put the clock in reverse. If your timepiece is a quartz movement, you are probably safe to turn it backward. If you have a very old cuckoo clock, it may not even go in reverse without breaking the mechanism.

Can an overwound clock be fixed?

Solutions to overwound clocks Begin by removing the outer shell of the clock, exposing the mechanism. … You’ll then need to apply new clock oil to the gears, it’s important to do this slowly, one drop at a time rather than pouring directly over, in some cases over lubricating can cause issues as well.

How much does it cost to repair a clock?

Type of clockEstimated priceTime only clock$180 to $300Clock with an hour strike$320 to $400Clock with an hour strike and tune$380 to $500Anniversary clocks$145 to $200

How often should I wind my pendulum clock?

Wind the clock once per week, preferably on the same day each week. Turn the key with a smooth motion, stopping when the spring will not wind any further. Never let the key snap back in your hand, always release it gently after each half turn.

What is a Seth Thomas clock worth?

A Seth Thomas clock from about 1905 in “as found” condition sold for about $150.
