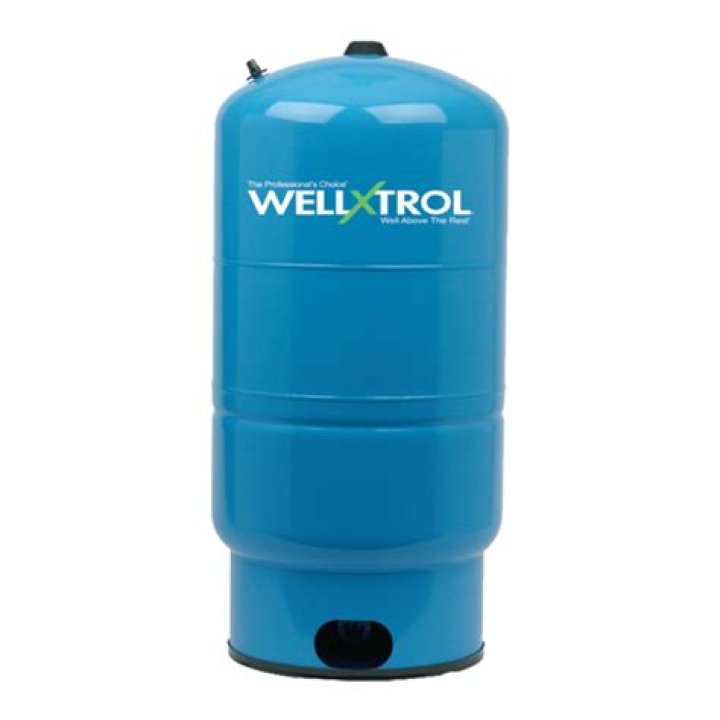

A Well-X-Trol well-water tank uses a pressurized butyl diaphragm to maintain water pressure. The diaphragm isolates the tank’s water storage area from the pressurized air. As water from a well pump fills the Well-X-Trol, the diaphragm stretches and the air above the diaphragm compresses.

How often should well pressure tank cycle?

Normal well pump operation with a pressure tank will give a water volume draw-down cycle of 30 seconds to 1-2 minutes for a typical water pressure tank, or much longer if larger water pressure tanks or water storage tanks are installed.

How do I know if my well pressure tank is bad?

1. Fluctuations in water pressure throughout the home.
2. Strange noises or rapid clicking sounds coming from the tank.
3. Spitting faucets.
4. Scalding shower water.
5. High electric bills.

How does a pre charged pressure tank work?

A “pre-charged” tank has a separate air bladder within the tank. It typically has about 35 PSI air pressure in it when delivered (think of a tire inner tube inside the tank. When all plumbed into your water system, your well pump will deliver water to the tank. The water will Squeeze” this bladder as it fills the tank.

How much air pressure should be in a well pressure tank?

Most well tanks come set at 30/50. The cut-on pressure for the well pump is 30 psi, so the pressure of the tank should have a pressure of 28 psi. If your well tank is on a 40/60 pressure switch, your pressure setting should be 38 psi.

How many hours a day does a well pump run?

Well pumps should be able to deliver the total water requirement with two hours of continuous operation.

Do I need to add air to my pressure tank?

While it is often necessary to correct the air charge in a bladderless water tank, bladder type water tanks do not normally lose air and do not normally need to have the air pressure in tank increased unless there is a leak in the tank itself or a defect in the water-containing bladder in the tank.

How long can a well pump run before burning out?

Depends on which submersible pump it is. Most are OK with running continuously, but some have limits of “run for less than 2 hours” or “leave to cool down after 30 minutes”.

Why does my well pump run so long?

In many cases, the problem stems from a leak in the drop pipe. Other common causes include air leaks in either the impeller or the pump casing, faulty check valves inside of the well pump, or a damaged foot valve at the bottom of your well.

Are well pressure tanks pre charged?

A home’s water well system is normally set to 2 psi below the pump cut-in to maximize the water stored, thus resulting in the longest pump run-time which helps extend the life and power of the pump. Within a commercial building, the normal pre-charge is set 10% below the pump cut-in pressure.

Article first time published on

How does a well bladder tank work?

How does a well pressure tank work? A well pressure tank uses compressed air to push pressurized water out of the tank and into your home. … As the tank fills with water, it compresses the air chamber. When you turn your water on, the compressed air pressurizes the water and pushes it back out of the tank.

How do you charge a well tank?

1. Turn off power to pump.
2. By-pass all water filtering equipment.
3. Open faucet on laundry tub or other faucet that does not have a screen.
4. Continue running water until pressure drops to 0.
5. Leave faucet open; begin pumping air into tank with compressor.

What happens when a well pressure tank goes bad?

Over time, your pipes may break. Water hammers can occur when a well pressure tank is no longer able to maintain a constant, optimal water pressure in your home. Instead, water flow is more apt to experience fluctuations that result in water hammers.

What is a symptom of a waterlogged pressure tank?

If your pressure tank is waterlogged, the pressure inside is no longer being properly regulated, so you will see this needle dance around on the gauge. The rapid turning on/off of your well pump is called Short Cycling.

How long do well tanks last?

Cheaper pressure tanks will last 5 years, while high quality pressure tanks could last up to 30 years. If the water is clean and the tank is properly sized it should be lasting an average of 15 years.

Is 70 psi too high for water pressure?

How High Is Too High? The ideal water pressure level is between 50-70 PSI. If your water pressure goes above 70 PSI (even occasionally), you should install a pressure regulator to your main water line.

What is normal water pressure for a house with a well?

Normal well water pressure should fall between 40 and 60 psi, so if your pressure is outside the normal range, adjust the pressure switch.

Will a bigger pressure tank increase water pressure?

A pressure tank creates water pressure by using compressed air to bear down on the water. … The bigger the tank you have the larger the drawdown (actual amount of water stored) you will have. A larger drawdown means longer run time and therefore less cycles.

How often should I drain my pressure tank?

It is recommended that you drain your tank daily, whether it is manually or automatically. Water build up in your tank can cause the bottom of your tank to rust forcing you to invest in a new tank.

How long does it take for a well to recover?

Some shallow wells that are in a sand and gravel geological formation will recharge within 24 hours. Some that recharge by a nearby stream or river will also recharge quickly. However, some deep wells with a small and semi-impervious recharge area may take many months or years to fully recharge.

Can you run a well dry?

When your well starts to run dry, you might notice reduced water pressure, sputtering faucets, and/or sediment in the water. The pump might run, but fail to draw water. It’s rare for a well to run dry permanently. … Doing so could damage the well and contaminate your water supply.

How much electricity does a well pump use a month?

At current electrical rate schedules each horsepower costs between $0.10 and $. 20 per hour to run. This means if you have a 5 horsepower pump and it needs to run 5 hours a day to meet your irrigation and household needs you could be spending up to $5 per day or about $150 a month to power your well pump!

How long should a well pump run between cycles?

So a minute on and a minute off has always been the minimum rule of thumb. Two minutes on and two minutes off is just that much better for the motor. With the old conventional pressure tank method, the pressure tank fills at the rate the pump can produce, less the amount of water being used at the time.

How long do well pumps last?

Depending on the equipment type and model, well pumps typically last anywhere from 8 to 15 years. However, several factors can contribute to the premature expiration of a well pump.

Is it OK to turn off well pump?

By shutting off the breaker, there should be no harm to the well pump system, provided the pump system is in good mechanical working order. But you should also shut off the power to the hot water heater. In rare cases, a broken water line can siphon water out of the hot water heater, causing damage to the unit.

How much does it cost to have a well pump replaced?

The average cost of replacing a well pump is between $900 and $2,500. The cost varies based on the well size, materials used, and installation required. For example, replacing a shallow well pump will cost less than a deep well submersible pump.

Why does my well pump kick on and off?

Short cycling of a water pump which is defined at SHORT CYCLING WATER PUMP means that the water pump or “well pump” turns on and off too rapidly or too frequently when water is being run in the building. … The most-common cause of pump short-cycling is loss of air in the water pressure tank.

How do you know when your well is going dry?

The first sign is the water is sputtering out of the tap, indicating air pockets in the well. The second sign is the water is not clear, but muddy or filled with sediment. … The only way to be sure your well is going dry is to open the cover to the well and to check the water level.

How do I test my bladder tank?

Check the tank’s pressure by placing an air pressure gauge on the air charging valve on the top of the tank. Add air if the pressure is more than 2 psi below the pump cut-in pressure. Use caution when using an air compressor or air pump.

What happens if pressure tank pressure is low?

If tank pressure drops, the bladder may have a tear or hole in it. A tank is waterlogged if it is completely filled with water or has too much water to function correctly. Waterlogged bladder pressure tanks contribute to the following problems : The pump motor cycles – turns on and off – too often.

How does a well system in home work?

Wells get drilled as far down as 1,000 feet into the rock to access the water. … Water travels through this casing via a well pump. The well system gets capped off above ground. The water then enters your home from a pipe connected between the casing and a pressure tank (generally located in your home’s basement).
