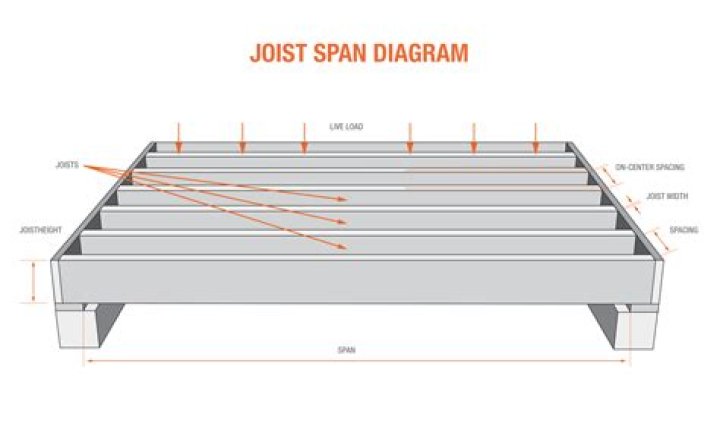

450mm tends to be the normal spacing adopted. Building regs give span tables for spacings of 400mm, 450mm, and 600mm. For wider spacings the flooring material will need to be thicker, however.

How far apart do floor joists need to be?

Most often, floor joist spacing is 16 inches apart on center, but this can vary depending on building codes and the requirements of the structure in the blueprint. Floor joists help distribute the load of a structure.

What is the normal distance between joists?

So, how far apart should you place the joist? Some manufacturers recommend a maximum joist spacing of 12 inches on centres, 14 inches on centre and 16 inches on centre. When installing the joist, you have to follow the manufacturer’s guidelines.

How wide are floor joists UK?

As a general rule – floorboards should be a minimum 16mm thick for joist centres up to 500mm and 19mm minimum for centres up to 600mm.

Are floor joists always 16 inches apart?

In most homes, the common standard is 16 inches on-center. This means from the center of one joist to the center of the next joist there is a measurement of 16 inches. … The spacing may also be reduced to as little as 12 inches apart for floors that must bear a heavier load.

How far apart are floor joists in old houses?

Building codes specify the minimum joist depth and spacing (typically 12 or 16 inches on center) for spans up to 20 feet, but those requirements are intended to prevent plaster ceilings from cracking, not to eliminate springy floors.

Can floor joists be 24 inches apart?

24″ o.c. You can always use bigger lumber, closer spacing, or a smaller span; just don’t go smaller, further apart, or a longer span. In other words err on the side of caution rather than pushing the envelope.

How wide are joists?

Standard Size of Joists Though there is no standard joist size for the ceilings in all buildings, most average homes use ceiling joists in a board size of 2-by-6 inches. The range of joist sizes used in homes varies though, between 2-by-4 inches and 2-by-12 inches.

How many joists is 12 feet?

A 12-foot long deck with joists 16 inches on center will require 10 joists.

How far apart do support beams need to be?

The span of the joists the beam is supporting also determines the maximum deck beam span between support posts. According to IRC, a two-ply 2×10 beam supporting a joist that spans 8 feet between supports requires beam support posts every 9-feet. Whereas a 10 feet can span up to 6 feet 6 inches.

Article first time published on

What size floor joist do I need for a 16 foot span?

Maximum Span (ft – in)Nominal Size (inches)Joist Spacing Center to Center (inches)Lumber Grade2 x 82410′ – 5″2 x 101216′ – 8″1615′ – 2″

How far apart should decking joists be UK?

Decking joists should be spaced at 400mm centres. Structural posts should be positioned no more than 1800mm apart. Use a joist and spirit level to mark the ledger height at the wall. Joists are attached to the ledger or double beam with galvanised joist hangers.

Can you double up floor joists?

By doubling up the joists, we cut their “deflection” (the distance they would bend under weight) in half. The floor hardly bounced at all and the client was happy. … You can stiffen the floor in just one room, or in as many rooms as you like. The methods we’ll cover make floors stiffer, but not necessarily stronger.

What is the minimum end bearing for a floor joist?

Minimum end bearing length is 13⁄4 . Minimum intermediate bearing length is 31⁄2 . 4. For multiple-span joists: End spans must be at least 40% of the adjacent span.

How far can 2x4 floor joist span?

A 2×4 can span a maximum of 6′ 7” when spaced 16” apart and used as a floor or deck joist. When used as a ceiling joist or a roof rafter, a 2×4 can span up to 7′ 3” spaced at 16”, and 6′ 4” when spaced 24” apart. Due to the small spans of 2x4s, they often are not used in horizontal load-bearing capacities.

Why does my floor shake when someone walks by?

Wood-framed floors are the most typical culprit of floor vibrations due to small deflections up and down as the joists are loaded and unloaded. … Thus walking across a floor with a loose subfloor or running an appliance like the dishwasher can cause vibrations.

What is code for floor joist?

Per the prescriptive tables found in Chapter 5 of the International Residential Code (IRC), the standard floor joist spacing used is 12, 16, 19.2, and 24 inches on center.

How do you calculate joist spacing?

As a rule, the larger the deck, the larger the joists. For example, joists spaced 16 inches from the center of the joist next to it can span 1.5 times in feet the depth of their inches. To learn more about deck joist sizing, spacing, and allowable span, reference this chart.

How far apart should decking joists be?

Deck joist spacing should never exceed 16″ on center (with the exception of MAX deck boards, which allow for maximum 24″ on center). For a more rigid feel, 12″ or less may be preferred. If adding additional framing, be sure to keep all boards level and in plane across the tops.

Can you span 12 feet with a 2x6?

A 2×6 can support up to 50 pounds per square foot of weight without sagging with a maximum span of about 12 feet when spanning a distance horizontally, with the 2×6 standing in a vertical position.

How wide should a floor joist be?

Typical Floor Joist Size In Residential Construction Floor joists range from 2×8 to 2×12. It is less common to see joists that are 2×6, even though they are included in joist span tables. Older homes are more likely to use 2×6 for joist framing.

What size should joists be?

Yellow Pine, Douglas FirJoist Size16″ o.c.24″ o.c.2×812′ 8″8′ 6″2×1016′ 0″10′ 5″2×1218′ 6″13′ 0″

What goes on top of floor joists?

Underlayment: Some types of flooring can be installed directly on top of the subfloor, such as vinyl flooring. Other types need a middle layer, called underlayment, such as laminate,carpet and tile.

How far can a 4X10 beam span without support?

Joist SpansDouglas Fir-Larch, Hem-Fir, Spruce-Pine-Fir, Redwood, Cedars, Ponderosa Pine, Red Pine4X84′-11″4X105′-10″4X126′-9″3-2X64′-6″

What is the maximum span of a 2X6 floor joist?

The maximum distance a 2×6 can span, according to the 2018 IRC, for a floor joist, is 12′-6”, ceiling joist 20′-8”, rafter 18′-0”, deck board 24”, deck joist 9′-11”, deck beam 8′-3”, and 6′-1” as for header. Always check the codes for determining factors or consult a Structural Engineer.

How far apart are ceiling joists?

Just like the studs, the standard spacing between joists is 16 to 24 inches. There is one easy way to find these ceiling joists – the flashlight technique.

How long can a joists be without support?

With 16” spacing, a floor joist can span up to 14′ as long as it is not cantilevered and terminates with support on either end. If the joists are 24” apart, then one 2×10 joist can span up to 11′ 5”.

How far can TJI floor joists span?

According to TJI’s span table, switching to deeper 11-7/8 inch joists (a nominal 2×12), even when spaced at 19.2 inches on-center, enable you to go as long as 17 feet, 4 inches and still achieve L/480.

Do floor joists need to be pressure treated?

Generally, building codes require pressure-treated or naturally durable wood for the following applications: Joists or the bottom of structural floors without joists that are within 18″ of exposed soil. Beams or girders closer than 12″ to exposed soil. … Wood supports that are embedded in, or in contact with, the ground.

What size beam do I need for an 18 foot span?

What size lvl beam for a 18 foot span:- as per general thumb rule, for a 18 foot span, size of LVL beam or GLULAM should be 9 to 10 inches deep and 3 inches wide, thus you need something like a 9-10″ GLULAM or LVL to span upto 18 feet and can use simple 2×12 dimensional lumber at 16″ apart from centre as floor joists …

Can I use 4x2 for decking joists?

4 x 2 Timber Rail / Joist These decking joists are the most common sized framing timber for decking. They provide a solid structure for fixing your decking boards too. When making your decking frame you should use a 400mm spacing between your timber joists.
