Proper wood deck board spacing should have at least a 1/8 inch gap after the decking has dried out. If you install your wood or treated deck boards while they are still wet boards, then they should be attached without a gap between them.

What is the gap between decking boards?

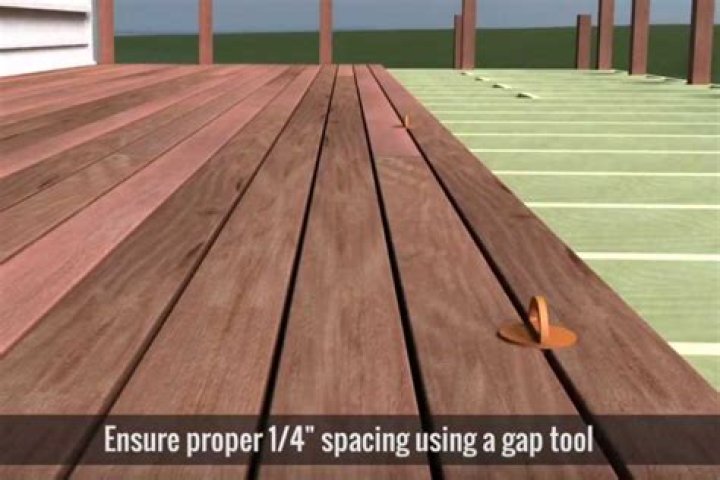

Proper Gap between Decking Boards When installing decking boards, make sure to leave 1/4 to 1/8 inch gaps in between them. This gap will make sure that the decking can breathe, have sufficient drainage, and make it easier to clean. For the gaps, you can use different tools to help you.

How far apart should pressure-treated deck boards be?

Proper deck board spacing should have a 1/8-inch gap after the decking has dried out. If you install your decking using wet boards, pressure-treated decking that has not yet dried out, then you should install them with no gap as a gap will be created as they dry and shrink.

What is the gap between decking boards UK?

You need an expansion gap of 5-8mm between the boards. If you are going to build your decking next to a house then make sure it’s 150mm below the damp-proof course and that you don’t cover any air bricks. Try to plan your deck to fit only whole boards, to avoid having to awkwardly cut a board lengthways to fill a gap.

Can I use 4x2 for decking frame?

4 x 2 Timber Rail / Joist These decking joists are the most common sized framing timber for decking. They provide a solid structure for fixing your decking boards too. When making your decking frame you should use a 400mm spacing between your timber joists.

How much space do you need between decking joists?

For residential decking, the joist space should not exceed 16 inches as measured on the centre. But if you want a more rigid feel for your decking, you can space the joist by 12 inches on the centre. Additionally, for commercial deckings, the standard joist spacing is 12 inches on the centre.

Can you put deck boards tight together?

Keep the butt ends as tight as possible when installing wood decking. This rule does NOT apply to composite or PVC boards which can have a large thermal expansion; enough to create a serious roller coaster effect down the length of the PVC or composite boards if you DON’T leave room for thermal expansion.

Should deck boards be butted together?

We recommend butting treated deck boards together because as the moisture dries from the wood, the boards will shrink and naturally form gaps to allow water drainage. (Depending on moisture content, cedar, cypress and especially hardwood decking may require deliberate spacing for consistent joint sizes.)

Do you have to screw decking into every joist?

Each deck board should be fastened with two screws at each point where the board crosses a joist to ensure the stability and durability of your deck’s surface. Boards should be fastened to rim joists with three screws.

Do you need to leave a gap between composite decking boards?

One of the most critical steps for properly securing composite decking in place is to make sure you have a 1/4-inch to 3/16-inch gap between the decking boards (don’t exceed 1/2 inch). … Second, because composite decking expands in hot weather, the space ensures that extra stress won’t be placed on the fasteners.

Article first time published on

How do you fill space between deck boards?

While you might be tempted to fill in gaps in your decking with wood filler or caulk, the natural movement of the boards can eventually cause the materials to break loose and make the gaps even worse. However, you can use rope to easily fill the gaps.

Can 2x4 be used as deck joist?

The short answer is yes. 2x4s can work for deck joists. However, they aren’t ideal for spanning long distances without bending or breaking, so you have some limitations. Choosing 2x4s for a low-sitting deck is perfect for keeping your feet out of the mud.

How wide should decking joists be?

Decking Joist Spacing Decking joists should be spaced at 400mm centres. Structural posts should be positioned no more than 1800mm apart. … Place a scrap piece of decking joist material in the joist hanger to set the width and then nail or screw the joist hanger on the inside of each double beam every 400mm.

What size timber should be used for decking?

The frame The key to constructing a good decking area is the frame. If the decking is being built on a low level it should be built of C16 graded treated joists 45 mm by 95mm (4×2 approx.). However if you are building a raised deck you should use 45mm x 145mm joists.

How do you stagger deck boards?

A common method for staggering a deck is to start the first row with a full plank, then cut one-third of the next row’s first board off the end. The row after that has an additional one-third cut off and then repeat when you get back to a full board.

Do deck boards shrink in width?

Deck boards will shrink, and not only that, they will even expand. Fibers have the ability to hold moisture in them. So when the outside environment is humid, the fibers collect moisture and expand, leading the boards to expand.

Should I Space 5 4 decking?

With cedar 5/4 decking installation should be with 1/16″-1/8″ gap (2-3mm), which will expand to 1/8-1/4″ (3-6mm) once the wood has dried. The reason for the difference spacing installation for the decking is due to shrinkage. … Gapping between the decking allows for excess rain to drain off the deck.

Do I need blocking between deck joists?

Blocking, according to the building code, is required at the open end between joists to prevent rotation or at 8-foot maximums if the joists are greater than 2×12 in dimensions. Most builders, though, recognize that blocking every 4 to 6 feet unifies the frame and improves structural strength.

What is the distance between posts on a deck?

In general, posts should be spaced no more than 8 feet apart. Some builders position them every 4 feet for a completely rigid frame.

Where do you start laying deck boards?

In most cases, it’s best to start with a full board on the outside edge of the deck and work toward the house so the odd board is less visible. Then measure when you’re 4 to 5 ft. away from the house and adjust the gap sizes to be sure the last board is a consistent width.

Do you need noggins in a decking frame?

Most decks will not require the noggins, although it is advisable to always add a couple.

Which side of deck board should face up?

Lay deck boards so that the best-looking face is facing up! Wood is stable when its moisture content is held above 30%(fiber saturation point). As wood dries below 30% it shrinks. Wood shrinks and swells twice as much in the direction parallel to the growth rings as it does perpendicular to the growth rings.

Why is there a space between deck boards?

The most important reason to have a spacing gap is to allow the boards the room to expand and contract naturally. Wood, by nature, expands and contracts when there are seasonal humidity changes and the wood begins to absorb or expel moisture.

Do you have to stagger deck boards?

Staggering the seams or butt joints where the boards meet is an important part of how to lay out the deck boards. … Staggering the deck boards decreases the number of screws or nails going into one joist, which can weaken or rot the joist more quickly.

Do deck boards expand?

Any type of decking board will expand and shrink, whether it’s wood, plastic, or composites. … However, they don’t change in size as much as wood or plastic. Wood fibres hold the shape when the composite undergoes thermal expansion, while the plastic fibres do the same when moisture is involved.

How far apart should T rex be?

Most composite and PVC decking brands, like Trex and Azek, recommend a maximum joist spacing of 16 inches OC. Some brands, like WearDeck, let you get away with more – reinforced with a layer of fiberglass on both the top and bottom, WearDeck boards easily allow for spans of 24 inches OC.

Can you put composite decking tight together?

Installing composite decking can’t be done like wood decking where you can slam it tight together when it’s still green and then shrinks as it dries. With composite decking you have to create the gap right from the get go.

Should decking have gaps?

Proper wood deck board spacing should have at least a 1/8 inch gap after the decking has dried out. If you install your wood or treated deck boards while they are still wet boards, then they should be attached without a gap between them.

How much space should be between house and deck?

Deck footing for 2×6 and 2×8 joist should be 16″ (400mm) from the house. Deck footings for 2×10 and 2×12 joist should be 24″ (600mm) from the house. There are several reasons for distance between the house and the deck footings. Space is both for ease of installation as well as strength of deck construction.

Should I fill cracks in deck boards?

Cracks: Fill and seal. Although cracking on a deck isn’t attractive, it’s usually just a normal sign of aging. If the cracks are less than six inches long, all you need to do is fill them in with latex wood filler and then finish off the deck with sealant.

Should deck joists be 2x6 or 2x8?

For upper-level decks, 2×10 is recommended as the minimum size to use for strong guard post connections. 2×6 joists should only be used on ground-level decks that do not require, and will not provide for, any guards. … Most decks use 16″ on center spacing for joists.
