Depending on various factors, the maximum span for a 2×8 floor joist is 16′ 6”. The maximum span for roof rafters is 23′ 9”. For headers, the maximum span is 11′ 2”. Finally, a single deck beam has a maximum span of 5′ 11” and double maxes out at 8′ 9”.

How big of a beam do I need to span 20 feet?

Wood beam size for a 20 foot span:- as per general thumb rule, for a 20 foot span, size of wood beam or lumber joist should be 2×14 which placed at 16″ apart from centre used for residential building or projects or construction in which depth of section of beam is 350mm (14″) and width of beam is 50 mm or 2″.

What size beam can span 16 feet?

In general terms, joist or beam which spaced 16 inches apart on Centre can span 1.5 times in feet their depth in inches. A 2×10 can span upto 16 feet.

Can a beam span 40 feet?

With a given span length of 40 feet and depth of beam of 10 inches, there are many different options that will work. The remaining type of beam to analyze was the I-beam. This is used mainly in steel construction since it is much more economical.

What size beam will span 10 feet?

A double ply beam can span in feet if there is no overhang beyond it. A double 2×12 beam can span 12 feet, a double 2×10 can span 10 feet, and so on.

What size beam will span 24 feet?

LVL beam size for a 24 foot span:- as per general thumb rule, for a 24 foot span, size of LVL beam or GLULAM should be 12-14 inches deep and 4 inches wide, thus you need something like a 12-14″ GLULAM or LVL to span upto 24 feet used for residential building or projects.

What size lumber can span 24 feet?

For span upto 24 feet, generally you need 4 1/2 × 11 1/4 standard size of LVL beam or 2×16 dimensional lumber at 16″ apart from centre on normal weight condition which providing great stability for your projects.

How long can joists be without support?

The maximum distance a 2×6 can span, according to the 2018 IRC, for a floor joist, is 12′-6”, ceiling joist 20′-8”, rafter 18′-0”, deck board 24”, deck joist 9′-11”, deck beam 8′-3”, and 6′-1” as for header. Always check the codes for determining factors or consult a Structural Engineer.

How far can a LVL beam span without support?

Due to its strength, an LVL beam can span up to 60 feet and is much stronger than traditional lumber. Generally, you can find LVL beams in 4-foot increments starting at 24 feet and going up to 44 feet long, with special orders up to 60 feet. LVL beam thickness is usually between 1 ¾ and 7 inches.

What size beam do I need for an 18 foot span?

What size lvl beam for a 18 foot span:- as per general thumb rule, for a 18 foot span, size of LVL beam or GLULAM should be 9 to 10 inches deep and 3 inches wide, thus you need something like a 9-10″ GLULAM or LVL to span upto 18 feet and can use simple 2×12 dimensional lumber at 16″ apart from centre as floor joists …

Article first time published on

Can a 2X8 span 16 feet?

Span is determined by species, grade, dimensions, spacing, use, and load. A rule of thumb is 1.5 times a joist’s depth but in feet when spaced at 16” centers. In general, a 2×8 will span 1.5 x 8, so 12-feet. Based on all factors though, a 2×8 joist span is 7′-1” to 16′-6”, and a rafter 6′-7” and 23′-9”.

What size lumber can span 15?

As the table shows, no 2×8’s meet the span and spacing requirements, but a 2×10 with an E of 1,300,000 psi and Fb of 1093 psi can span 15 feet 3 inches – more than enough. A 2×12 with an E of 800,000 psi and Fb of 790 psi also works, since it can span 15 feet and 10 inches.

What size beam do I need for a 15 foot span?

Wood beam size for a 15 foot span:- as per general thumb rule, for a 15 foot span, size of wood beam or lumber joist should be 2×10 which placed at 16″ apart from centre used for residential building or projects or construction in which depth of section of beam is 250mm (10″) and width of beam is 50 mm or 2″.

How far can a 4X10 span without support?

Joist SpansDouglas Fir-Larch, Hem-Fir, Spruce-Pine-Fir, Redwood, Cedars, Ponderosa Pine, Red Pine4X84′-11″4X105′-10″4X126′-9″3-2X64′-6″

How far can you span a triple 2x10 beam?

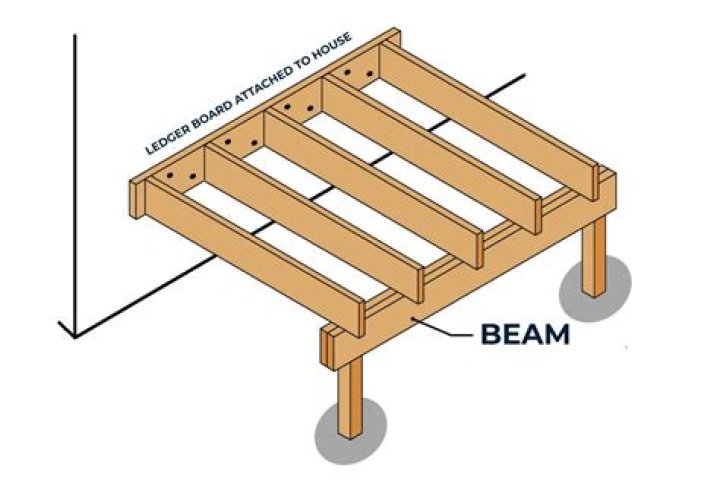

For a more normal-sized deck, the same beam can span 8′, supporting a deck that is 8′ wide. You can also triple a 2×10 beam. In that case, you could span up to 15′ for decks that are 4′ wide and up to 10′ for decks that are 8′ wide.

What size beam do I need to span 25 feet?

Wood beam size for a 25 foot span:- as per general thumb rule, for a 25 foot span, size of wood beam or lumber joist should be 2×16 which placed at 16″ apart from centre used for residential building or projects or construction in which depth of section of beam is 400mm (16″) and width of beam is 50 mm or 2″.

How much load can a beam support?

The bending moment is the length of the span times the weight to be supported divided by 8. For a beam spanning a 12-foot room and supporting a weight of 600 lbs., the maximum bending moment would be 12 x 600/8 = 900 foot-pounds.

What size LVL Do I need to span 26 feet?

What size lvl beam for a 26 foot span:- as per general thumb rule, for a 26 foot span, size of LVL beam or GLULAM should be 14-16 inches deep and 4 inches wide, thus you need something like a 14-16″ GLULAM or LVL to span upto 26 feet used for residential building or projects.

What size LVL Do I need to span 30 feet?

What size lvl beam for a 30 foot span:- as per general thumb rule, for a 30 foot span, size of LVL beam or GLULAM should be 16-18 inches deep and 4 inches wide, thus you need something like a 16-18″ GLULAM or LVL to span upto 30 feet used for residential building or projects.

How long can joists span?

How Far Can Floor Joists Span? A floor joist can span nearly 26′ in the most extreme cases. A select douglas fir 2×12 supporting a 30 psf live load and 10 psf dead load, spaced at 12” will have the greatest span length.

What size LVL do I need for a 20 foot span?

What size lvl beam for a 20 foot span:- as per general thumb rule, for a 20 foot span, size of LVL beam or GLULAM should be 10 to 12 inches deep and 3 inches wide, thus you need something like a 10-12″ GLULAM or LVL to span upto 20 feet and can use simple 2×14 dimensional lumber at 16″ apart from centre as floor joists …

How much does a 20 foot glulam beam cost?

The LVL beam thickness is usually between 1.75 and 7 inches. The price for beams that fit 10 feet of space will range from $3 to $5 per linear foot, while a 20-feet span will need a beam that costs $6 to $11 per linear foot. Consult a local structural engineer to determine the best LVL beam size for your span.

Is LVL stronger than dimensional lumber?

Laminated veneer lumber (LVL) studs can be two times stronger in compression and tension than standard framing lumber of the same dimension.

Do LVL beams sag?

Your wood/LVL will sag much more. What you are describing is ultra typical when there is a point load above and they used LVL. I don’t know why cities keep allowing the use of LVL for anything more than 10 feet. It will look great and then year 2-3 it starts sagging… year 4-5 you get cracks and notice it…

How far can an LVL cantilever?

According to the new span tables and IRC provisions, cantilevers can extend up to one-fourth the backspan of the joist. This means that joists, such as southern pine 2x10s at 16 inches on-center, spanning 12 feet are allowed to cantilever up to an additional 3 feet (see illustration, below).

What is the difference between a beam and a joist?

Both beams and joists are horizontal structural members used to frame buildings and protect the structural integrity of the walls. Joists can be thought of as several small beams that may rest on top of beams or be fastened to the sides of beams, whereas beams may receive their loads on a vertical or horizontal face.

How far can a 8X8 beam span?

From contributor I: 20 to 25 feet is a serious span – an 8X8 won’t even come close.

How far can a 2x10 joist span without support?

Douglas fir 2-by-10 joists graded as “Structural Select” allows joist spans up to 21 feet for a live load of 30 pounds per square foot when spaced 12 inches apart, 19 feet 1 inch for 16 inch spacing and 16 feet 8 inches for 24 inch spacing.

How far can a 6x6 beam span without support?

A 6 x 6 beam spans up to 14 feet and should not be used as a beam because it is not able to cover the load, not even the roofing. 6 x 6 can support a 4000 lbs weight if one uses it in a double beam way.

How far can a 2x8 span without sagging?

Depending on various factors, the maximum span for a 2×8 floor joist is 16′ 6”. The maximum span for roof rafters is 23′ 9”. For headers, the maximum span is 11′ 2”.

What size lumber can span 13 feet?

A 2×6 spaced 16 inches apart can span a maximum distance of 13 feet 5 inches when used as a rafter, 10 feet 9 inches when used as a joist, and 6 feet 11 inches when used as a deck beam to support joists with a 6-foot span. What is this?
