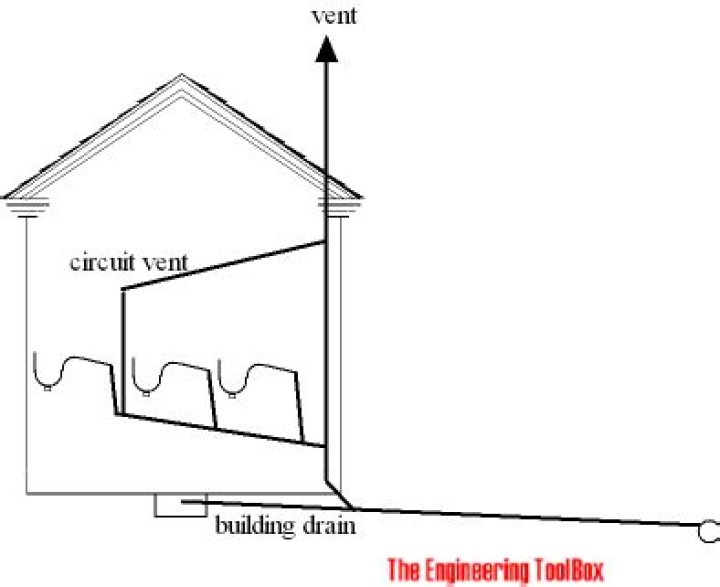

How far can a drain be from a vent stack

For a 1 ½-inc pipe the vent should be 42 inches away at the most while a 2-inch pipe must have a maximum distance of 5 feet. For pipes that have a diameter of 3 inches the distance is 6 feet and for a 4-inch pipe the most it should be away from the vent is 10 feet.

How far can shower drain be from vent stack?

The connection between the fixture drain and the horizontal drain and vent pipe is the only vertical pipe of a combination drain and vent system. 8 feet is the maximum vertical distance.

How far should a vent stack be above the roof?

Unless a roof is to be used for any purpose other than weather protection, extensions of vent pipes through a roof should be terminated at least 12 inches above the roof. The vent should be extended at least seven feet above the roof if it is to be used for something other than weather protection.

How far can a vent pipe be from the trap?

SIZE OF TRAP (inches)SLOPE (inch per foot)DISTANCE FROM TRAP (feet)11/41/4511/21/4621/4831/812

Can you offset a vent stack?

For this system to function effectively there cannot be any offsets in the waste stack portion. Once the highest branch interval is connected to the stack, the vent portion may contain offsets, provided such offsets are at least 6 inches above the branch interval connection.

How many vent stacks should a house have?

At least one main vent stack is required for every building that has plumbing when connecting separately to the sewer for the building or its septic tank. The stack has to run the most direct route through open air or be ventilated to extend to open air.

Where should a plumbing vent be located?

Vent pipes must be installed so they stay dry. This means that they should emerge from the top of the drainpipe, either straight vertically or at no less than a 45-degree angle from horizontal, so that water cannot back up into them.

How far does a plumbing vent need to be from a window?

Each vent must be at least 10 feet from an openable window, door, opening, air intake, or vent shaft and at least 3 feet above a lot.

Can a vent stack have bends in it?

yes the vent can have a 1/4 bend in it. Re: Main stack bend? Vents can make any change of direction you want. As long as there is minimal pitch.

How far should a plumbing vent stick out of the roof?

Vent pipes shall terminate not less than 6 inches above the roof, measured from the highest point where the vent intersects the roof. EXCEPTION: Where a roof is used for any purpose other than weather protection, vents shall extend at least 7 feet above the roof and shall be properly supported.

Article first time published on

What is the minimum height that a Type B vent must extend above a roof?

6) Minimum Height. A Type B or L gas vent shall terminate not less than 5 feet (1524 mm) in vertical height above the highest connected appliance draft hood or flue collar.

When can stack vents be reduced in size?

The line can be reduce in size and be kept small if there are enough additional vents to give the required aggregate area out through the roof. 2. The pipe size cannot be reduced but has to be full size from the house sewer all the way to the roof. 3.

Does a plumbing vent stack have to be straight?

Do Plumbing Vent Pipes Need to be Straight? Plumbing vents need to be straight on the vertical. This is necessary to avoid any vapor locks from occurring. When there is a bend in the vent pipe, moisture accumulates and is trapped.

How far can a vent pipe run horizontal?

If you have 1- 1/4-inch pipe, the horizontal distance of the vent ought to not be more than 30 inches. For a 1- 1/2-inc pipe the vent must be 42 inches away at the most while a 2-inch pipeline must have an optimum distance of 5 feet.

Can plumbing vents be combined?

all plumbing vents combined into one, thru roof. Re: Minimizing Roof Penetrations: Can vents be combined? Yes, but in most areas the area(s), not diameters, of the final penetration(s) has to equal the area of the main sewer line into the building.

Can a toilet shower and sink share a vent?

As a general rule, you will just be able to vent 2 fixtures on a toilet wet vent. … 1) Toilet and Sink: The toilet is vented through the sink drain. The toilet drain should be 3″, the sink drain is 1.5″, the shared sink drain/toilet vent area should be 2″, and the vent going up should be 1.5″.

Where is the main vent stack?

It is a vertical pipe attached to a drain line and runs through the roof of your home. The vent stack is the pipe leading to the main roof vent.

Can two drains share a vent?

It’s common to use a 1 1/2-inch vent for a 2-inch drain because that ensures that the drain will get enough air. … It can then run horizontally to tie into another vent, as long as it maintains a 1/4-inch-per-foot slope toward the drain.

Can 2 toilets share the same vent?

The waste lines can usually be tied into the same stack if the house has more than one toilet. They may need their own stack if they are on opposite sides. Two vent openings on the roof are needed since the stacks must be vented.

Does every drain need a vent?

What is a vent and why do you need one? Everyone knows that every toilet, bathtub, sink, shower, etc. will have a drain to carry the water away to sewage treatment, or your septic. … Whether you’re putting in a tub, toilet, sink, or floor drain, they all need a plumbing vent on the drain to make it work properly.

Can you cap a vent pipe?

Most roof vent pipes are a part of a plumbing system and are connected to water systems that are wet all the time. … The main reason you should consider putting a cap on your vent pipe is to protect it from the debris that can get in during the storm and prevent animals from climbing in.

How far should vent be from P trap?

trap, the distance from the weir of the trap to the vent pipe opening “shall not” exceed 30 inches.

How many fixtures can a 2 inch vent handle?

Under the Uniform Plumbing Code, a 2″ vent can handle 24 fixture units(F.U). In a residence, a lavatory sink= 1.0 F.U., bathtub/shower= 2.0 F.U. and a toilet 1.6 gallon or less= 3.0 F.U, greater than 1.6 gallon= 4.0 F.U.

How close can vent be to edge of roof?

How big does a plumbing vent need to be?

The size of vent piping shall be determined from its length and the total number of fixture units connected thereto, in accordance with Table 703.2. The diameter of an individual vent shall be not less than 11/4 inches (32 mm) nor less than one-half the diameter of the drain to which it is connected.

What is the minimum height of a vent terminal on a roof with a patio?

be terminated by a snorkel. The minimum vertical height with roof termination is 8 feet (2.45 m).

What is the clearance for B vent?

A 1-inch clearance (air space) to combustible materials must be maintained, when using DuraVent Round B-Vent, regardless of the pipe diameter. at least 2 feet higher than an adjacent wall or obstruction, if it is within 8 feet.

Can you install B vent through wall?

Any portion of your B vent system that passes through the occupied area must be enclosed to protect against any emergency, such as the system’s burning. But we will not recommend installing the B vent pipe on the outside wall of the building, especially when the outside weather is cold.

Is B vent a Category 3?

B-vent is ONLY allowed on Category 1 appliances unless the appliance manufacturer has specifically certified a particular B-vent system to be used alternatively.

Can a vent pipe be reduced?

If there are enough additional vents to give the required aggregate area out through the roof, then the line can be reduced in size and kept small. … It is not possible to reduce the size of the pipe from the house sewer all the way to the roof.

Can a plumbing vent terminate horizontally?

To answer your specific question, yes, vent pipes can have horizontal runs, as long as there is no possibility of them becoming plugged with water. In other words, any water that gets into the vent pipe opening must be able to run freely all the way to the sewer, without creating a “trap”.
