Detonator – any device containing an initiating or primary explosive that is used for initiating detonation. A detonator is not permitted to contain more than 10 grams of total explosive material per unit, excluding ignition or delay charges.

How do explosive detonators work?

Detonators are small devices used for detonating a high explosive. In a nuclear weapon, the nuclear part (called the core or the pit) is surrounded by high explosives. The detonation of those high explosives is what causes the pit to implode (compress) and create nuclear yield.

What is a dynamite detonator?

blasting cap, also called Detonator, device that initiates the detonation of a charge of a high explosive by subjecting it to percussion by a shock wave.

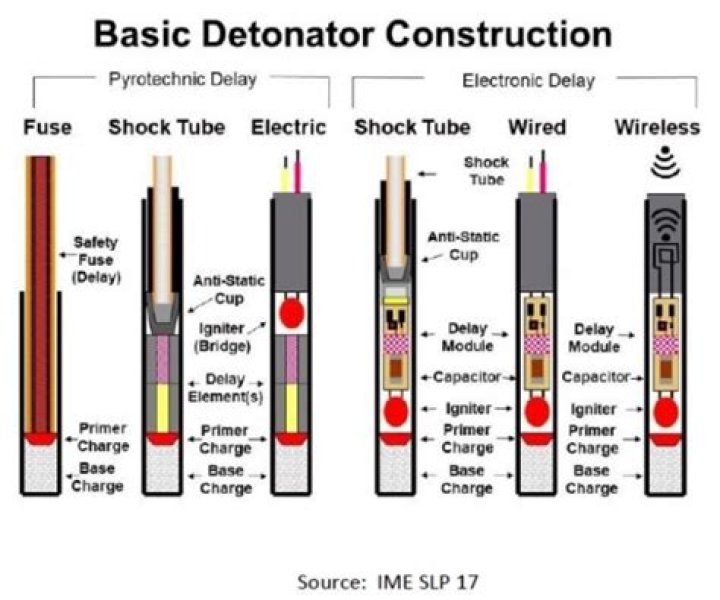

What is detonator and their type?

The two common types of detonators are electrical detonators (also known as blasting caps) and percussion detonators. Electrical detonators have a fuse material that burns when high voltage is applied to initiate the primary high explosive.

What do blasting caps do?

Blasting caps are used to detonate an explosive charge. Blasting caps contain a small explosive charge that in turn sets off a larger attached explosive (such as dynamite).

What are electronic detonators?

Electronic detonators are modern, fully programmable and intelligent high strength detonators. Each detonator contains a circuit board that can be programmed to initiate at precise millisecond timing within a firing sequence.

What are detonators made of?

Many detonators’ primary explosive is a material called ASA compound. This compound is formed from lead azide, lead styphnate and aluminium and is pressed into place above the base charge, usually TNT or tetryl in military detonators and PETN in commercial detonators.

What is another word for detonator?

torpedotorpgrenademineincendiarychargeshotpineappleammunitionfireworks

Why do some explosives require a detonator?

Because high explosives do not require oxygen (or any other co-reactant), they break down much more rapidly and are much more versatile than combustible materials. High explosives generally cannot be detonated by heat alone and so require a detonator to deliver either a shock wave or an electric charge.

What is a blasting cap made of?

DODIC M131, NSN 1375-01-315-1335, Cap, Blasting, Non-Electric, M7 Assembly consists of an aluminum alloy cup containing an ignition charge of lead styphnate, an intermediate charge of lead azide and a base charge of RDX. It is used to detonate all military explosives.

Article first time published on

What is Nonel in blasting?

Nonel is a shock tube detonator designed to initiate explosions, generally for the purpose of demolition of buildings and for use in the blasting of rock in mines and quarries. … Nonel is a contraction of “non electric”.

How do electric detonators work?

electric detonator – any device containing an initiating or primary explosive that is used for initiating detonation in another explosives material and uses direct electrical energy from the device’s leads (wires, springs, contacts, etc.) to fire an igniter to initiate the device.

What is train detonator?

Detonators are used to stop trains in an emergency when other options fail. An explosive device that is akin to an anti-tank landmine, but just emits a loud sound, is partly responsible for your safe travel by train. … The Railways use these detonators sparingly — mostly to stop a train from chugging into a disaster.

How many volts does it take to set off a blasting cap?

Electric blasting caps can be fired from a 11/2 volt flashlight cell. It would be desirable to increase this voltage requirement to reduce the susceptibility of the cap to be prematurely initiated by extraneous electricity.

How much power does a blasting cap have?

Blasting Caps are designed to have a minimum firing current of 0.25 amps.

What is safety fuse in explosives?

Safety Fuse is a medium for conveying flame at a slow & uniform rate to initiate an explosion in either a charge gunpowder (black powder) or a plain detonator. It provides the time delay required for the blaster to reach the cover of safety before the actual explosion takes place.

What is emulsion explosives?

Emulsion explosives are applied in the mining industry are usually water-in-oil emulsions, where the aqueous phase (an aqueous solution of AN) is dispersed in fuel oil. … To produce emulsion explosives an aqueous solution of AN was used. A typical concentration of AN is ca 94.0 ÷ 99.0%.

Are blasting caps legal?

No person shall store or keep blasting caps, detonating or fulminating caps, or detonators in a magazine in which any other type of explosive is stored or kept.

What is shock tube made of?

A simple shock tube is a tube, rectangular or circular in cross-section, usually constructed of metal, in which a gas at low pressure and a gas at high pressure are separated using some form of diaphragm.

How many types of Exploders are there?

There are three main types of explosions: chemical, mechanical and nuclear. Each type of explosion can be equally devastating and serious, causing unprecedented harm to the surrounding people, atmosphere and infrastructure. Therefore, understanding different types of explosions and how they occur is important.

Can there be an explosion without oxygen?

Originally Answered: Can there be explosions in space with no oxygen? Yes. The explosives used in most bombs do not rely on combustion with the atmosphere; they use the chemical decomposition of a compound that produces rapidly expanding hot gasses.

Does black powder need oxygen?

Black powder consists of a fuel (charcoal), an oxidizer (saltpeter or niter), and a stabilizer (sulfur) to allow for a constant reaction. The reaction would be slow, like a wood fire, if not for the oxidizing agent. Carbon in a fire must draw oxygen from the air, but the saltpeter in gunpowder provides the oxygen.

Can black powder detonate?

Black powder is a deflagrating explosive. It is very sensitive to flame and spark and can also be ignited by friction and impact. … HEALTH HAZARDS Black powder is a Division 1.1 Explosive. and detonation may cause severe physical injury, including death.

What is the word for turning off a bomb?

Meaning of Defuse It means “to remove the fuse from (a mine, a bomb, etc.).” Its figurative meaning developed quickly after, and is now the meaning most of us are most likely to encounter: “to make less harmful, potent, or tense.”

What is another word for explosive device?

Also found in: Dictionary, Medical, Encyclopedia, Wikipedia. torpedo shoe bomb seal bomb petard mine improvised ex… IED I.E.D.

How is gelatin sticks made?

Gelignite (/ˈdʒɛlɪɡnaɪt/), also known as blasting gelatin or simply “jelly”, is an explosive material consisting of collodion-cotton (a type of nitrocellulose or guncotton) dissolved in either nitroglycerine or nitroglycol and mixed with wood pulp and saltpetre (sodium nitrate or potassium nitrate).

How many grains are in a blasting cap?

The velocity is approximately 6,400 metres (21,000 feet) per second. Many types of Primacord are available for both military and commercial use, but the industrial varieties generally contain from 25 to 60 grains of PETN per 0.3 metre.

How do you make nitroglycerin from glycerin?

Nitroglycerin is made by nitrating glycerin with a mixture of nitric and sulfuric acid. Glycerin is the backbone which bonds with fatty acids to make triglycerides, the main constituent of vegetable oils and animal fats. You can nitrate many molecules by mixing them with a mixture of nitric and sulfuric acid.

What are primers in explosives?

Primer. A unit, package, or cartridge of explosives which contains a detonator and is used to initiate other explosives or blasting agents.

What is powder factor?

The POWDER FACTOR is a relationship between how much rock is broken and how much explosive is used to break it. … Powder factor can be expressed as a quantity of rock broken by a unit weight of explosives. Or, alternatively, it can be the amount of explosives required to break a unit measure of rock.

What is subgrade drilling?

Subgrade drilling or under drilling denotes the drilled depth of the blast holes underneath the proposed grade in order to ensure proper breakage at the grade level.
