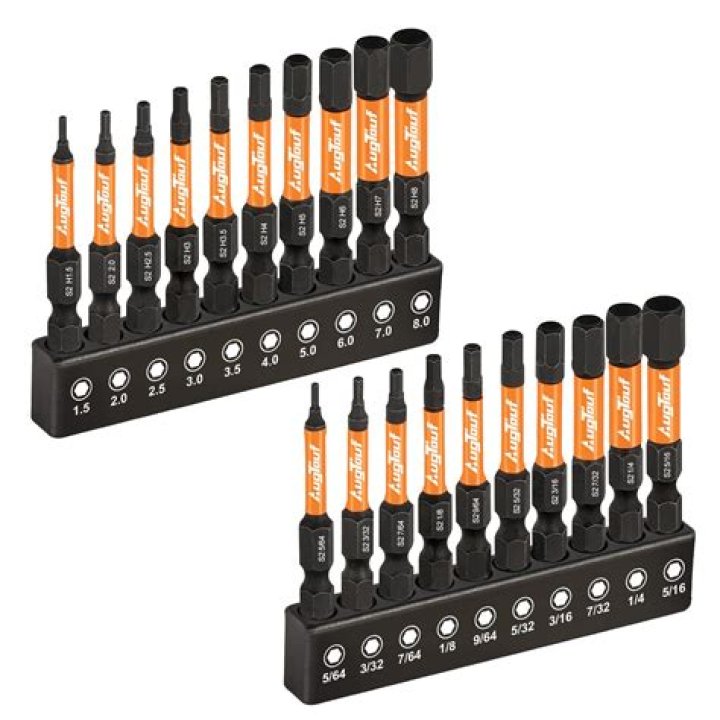

Hex bits: Designed to work when an Allen key won’t fit, hex bits are often used for furniture construction and disassembly. Square bits: Similar to hex bits, square bits are often used in commercially made products and furniture. They’re often replaced by hex products in modern production.

What size is hex bit?

Hex bits use a 1/4″ hexagonal fitting. (There are also larger sizes sometimes seen used with impact drivers, but these aren’t common.) Most screwdriving bits are 1″ long. 2″ & 6″ are available for more reach or just straighter reach when the screw is close to some obstruction.

Why do some technicians use Allen keys?

Why do some technicians use Allen keys instead of self-tapping screws to fasten joint? … To summarize, a hex key is a tool having a hexagonal socket that is used to drive nuts and screws. They are easier to use and less prone to strip than their Phillip’s head equivalent since they have six driving points.

What is a hex bit driver?

The Hex Bit Driver is a screwdriver designed for precision work, made for those who work and do things. It is fitted with a bearing to provide a quick takedown and assembly on whatever you’re working on. Machined from solid copper stock, which will will darken and patina as you use it.

Are Hex and Allen keys the same?

A hex key, also known as an Allen key is a simple tool used to drive bolts and screws with hexagonal sockets in their heads.

How do I know what screwdriver bit to use?

Choose the bit size that fills the screw head entirely. A bit that is too big or too small will not seat properly, and you’ll end up with a stripped screw.

How do I know my hex size?

As long as you know how to measure a hex key, you can always determine the size you have. Hex keys measurements are done across-flats or AF. This simply means that they are measured from one flat side of the head to the one directly across from it.

Are Torx and hex the same?

Hexagon keys are also known by several other names including hex key, hex wrench, Allen key, and Allen wrench. Torx is a brand name trademark for fastener heads and keys that have a six-point, star-like pattern.

What can I use instead of a hex key?

Sometimes you can use small types of flat headed screwdrivers as an allen wrench by putting the end in the socket so that the 2 edges of the screwdriver work as leverage in the hole to turn it. A wider socket on the bolt or nut, use a wider flathead screwdriver.

How many sides does a hex bit have?

Alone, the basic Allen wrench has six sides, which allow for better grip when turning a bolt. That means the basic Allen wrench can only be used on hex bolts, as they have six sides themselves. However, you can buy socket sets that allow you to add different types of heads on the Allen wrench.

Article first time published on

Can I use drill bits in impact driver?

Yes, you can use an impact driver. … You can make small holes in light-gauge steel and soft wood with an impact driver using a standard hex-shank drill bit, but if you want to make holes larger than ¼ inch in heavy steel, hardwood, or pressure-treated lumber, you need a bit rated specifically for an impact driver.

What is Torx key?

Torx keys are also commonly known as star keys. Like hexagon allen keys, most torx keys are small enough to be carried in a pocket and enable the user to drive the appropriate fasteners without needing a separate screwdriver or power tool.

What is the difference between Allen and hex?

The terms “hex wrench” and “Allen wrench” refer to the same tool: an L-shaped hexagonal device designed to fit and drive bolts and screws that have a hexagonal socket in their heads.

Why do hex screws exist?

You get screws with many different heads. All are designed to allow someone a good stable grip before applying the force needed to drive the screw in or out. You normally find hex heads on bolts but you do find them on screws. A hex head screw just allows the use of a socket attachment on a drill to do this.

Why is an Allen wrench called an Allen wrench?

The “Allen screw” name for the socket head cap screw and “Allen key” for the wrench originate from the products of the Allen Manufacturing Company of Hartford, Connecticut. According to Bates, it is widely reported that the company trademarked the name “Allen wrench or key” for its range of hex wrenches in 1943.

What is an Allen wrench with hole in the middle?

A hex key (also, Allen key and Allen wrench) is a simple driver for screws that have heads with internal hexagonal recesses (sockets). Hex keys are formed from a single piece of hard steel hexagonal rod having blunt ends that fit snugly into similarly-shaped screw sockets.

Why do Allen keys have a ball end?

Easier hex key When you buy a hex key (Allen wrench) set, get them with ball ends. The advantage is that their ball end make it easier to slide the wrench into the receiving slot. You can reach in at an angle and feel your way to the needed drop-in position faster.

What does hex size mean?

Hex nut size refers to its nominal thread diameter. Typically, sizes range from 1/4″ to about 2 1/2″. Size is specified in inches, usually fractional rather than decimal. … Width across flats, which is wrench size, ranges from 1.50 to 1.75 times the nominal hex nut size and thickness is 0.850 to 0.875 times the size.

What size is H5 hex bit?

SizeLengthH1/16 H5/64 H3/32 H7/64 H1/8 H9/64 H5/32 H3/16 H7/32 H1/425mm – 152mm1″ – 6″

What is the smallest Allen key?

Sizes contained in the set are 0.71mm , 0.89mm (the two smallest hex keys in this set are metric) – then 1.27mm (0.05″), 1/16″; (1.59mm), 5/64″ (1.98mm), 3/32″ (2.38mm) and 7/64″ (2.79mm).

Are all screwdriver bits the same?

A screwdriver bit is a tool for driving screws and one that can be fitted to most drilling power tools. Each screwdriver bit has different types of shanks and tips to suit different screws and applications – all are described in depth below. …

Are PH2 and PZ2 the same?

2 hours remaining. PH is short for Philips head, whereas PZ is short for pozidrive. PH screws just have a cross slot on the head; PZ look similar but have additional lines between the slots.

How do you put a screwdriver bit in a drill?

1. Step 1 – Release speed control trigger. …
2. Step 2 – Push forward/reverse button. …
3. Step 3 – Hold base of chuck. …
4. Step 4 – Insert drill or screwdriver bit. …
5. Step 5 – Turn chuck collar clockwise. …
6. Step 6 – Push the forward/release button.

Can you use a drill instead of an Allen key?

Can I put an Allen wrench in a drill? Yes. You can cut off the branch of the L-shaped hex key.

Can you put an allen key in a drill?

Turn those lonely allen wrenches into an entirely new tool by cutting off the branch of the “L” shape and creating a straight hex driver that can fit into the chuck of any power drill, just like a normal drill bit.

How do you remove a hex screw without a hex screwdriver?

Try a plastic toothbrush. Take a plastic toothbrush and lightly melt the end using a lighter or other source of heat. Once the plastic is soft you can insert it in the head of the screw and allow the plastic to harden once more. Once it is hard try to turn the screw counterclockwise to unscrew it.

Is an Allen wrench a hex key?

What are hex keys? Hex keys, commonly known as Allen keys/wrenches in the UK and various other countries, are a very simple hand tool of the general spanner and socket family, used for tightening and loosening hexagonal bolts and other compatible fasteners.

What is a T30 bit?

This durably constructed 3/8-in Drive T30 Torx Bit Socket provides the end user the ability to use a ratchet or driver on Torx fasteners. … Torx® is a trademark of Acument Intellectual Properties, LLC.

Which is better Torx or square?

The square drive provides a more positive bit engagement making it harder for the heads to strip out. Most other types of deck screws use a Philips head or a variation of a Philips type drive and some use a Torx style bit drive. … Using an impact driver also helps to drive screws without stripping the heads.

What are Allen wrenches made of?

Allen wrenches, also called “hex keys,” start as large pieces of steel alloy known as billet. These 50- to 80-lb. blocks are loaded into a powerful hydraulic press that squeezes the malleable metal through a small opening, creating a long, rod-like piece.

What are Allen key screws called?

Socket Head Cap Screws, which are also known as Allen head screws are stock items at Lightning Bolt in many materials sizes. These screws come with a hexagonal cross-section socket in the head and require an Allen wrench or hex key to drive them into material and secure them into a structure.
