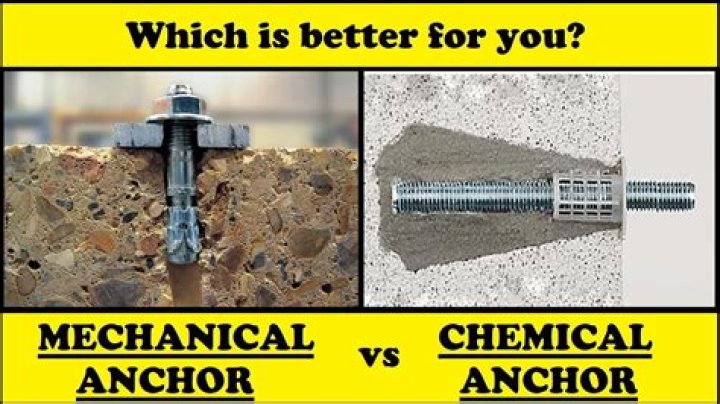

Mechanical anchors are anchors that mechanically anchor themselves in the base material using friction and some type of movement within the mechanical anchor to achieve holding values. … Mechanical anchors are designed to go into the hole in the base material, but will not come out.

How do mechanical anchors work?

All mechanical type concrete anchors work on the same basic principle- Drill a specific sized hole, insert the anchor and expand the anchor larger than the hole in order to make it difficult for the anchor to be pulled out of the hole.

What is the difference between anchor and fastener?

FASTENERS AND ANCHOR FASTENERS. Fasteners are called anchor fasteners in the building trade. This is because in most cases, they connect something to a base material such as concrete or brick, like the anchor of a ship embeds itself in the sea bed and does not allow the ship to move.

Is a wedge anchor a mechanical anchor?

A wedge anchor is a mechanical type expansion anchor that consists of four parts: the threaded anchor body, the expansion clip, a nut, and a washer. These anchors provide the highest and most consistent holding values of any mechanical type expansion anchor.

What is an anchor in hardware?

A drywall anchor is designed to securely hang framed pictures, mirrors, clocks and shelving on walls. … There are many varieties of drywall anchors that keep hanging hardware firmly in place.

What is a stud anchor?

Stud anchors are made from a steel rod, with one end threaded and the other end necked down with a clip that is permanently attached. Stud anchors are packaged with one nut and one washer. Stud anchors are simple to use, have excellent holding values and come in a wide variety of diameters and lengths.

What force do mechanical anchors use?

Friction: This is the mechanism used by most post-installed mechanical expansion anchors to resist loads, including the KWIK Bolt TZ, HSL-3 and HDI anchors.

What force do mechanical anchors use to create their holding strength?

The anchor creates an outward force when it mechanically changes its form as it is inserted into the hole and then expanded. This creates the outward force that produces the friction that provides the holding values.

What is an undercut anchor?

Post-installed mechanical anchors come in several styles: wedge, sleeve, drop-in, stud, and undercut. … Undercut anchors are not your typical anchors. The bottom of the hole has a notched opening, or undercut, made either with a special drill bit or with an anchor that has a drilling device at the end of the bolt.

What grade are wedge anchors?

Wedge anchors are available in many types of finishes and material grades. The four most common types are: zinc plated low grade carbon steel, hot dipped galvanized, 304 stainless steel, and 316 stainless steel.

Article first time published on

What are anchors fasteners?

An anchor bolt is a used type of fastener that’s designed to connect one or more objects to a concrete surface. With concrete being brittle, you can use conventional bolts for applications such as this. To ensure the connected object or objects remains in place, you must use anchor bolts.

What is the difference between bolt and anchor?

Anchor bolt is a post-anchor technology, you need to drill first, after that screw into the screw for securing; bolts are pre-formed. 4. The head of the anchor bolt is hidden in the concrete base product, as well as the head of the bolt is subjected to the outside.

Are chemical anchors strong?

Chemical anchors (I prefer the simpler term ‘resin anchors’) exert no setting stresses in the base material so can be specified at closer edge and spacing distances in concrete and will usually develop the strongest anchorage in masonry materials – which are their main ‘Pros’.

What are metal anchors used for?

Metal toggle anchors are also the only wall anchors recommended for concrete or plaster walls. Best for: Shelving that will bear weight such as pantry shelving. Ratings vary, but some can hold as much as 300 to 350 pounds.

Do you need anchors for studs?

Unfortunately, studs are seldom, if ever, positioned exactly where you need them, but that’s okay. In most situations you can use a hollow-wall anchor, which is designed to attach to the wall in the hollow spaces between the studs.

Do I need anchors if drilling into stud?

Wood screws directly into a stud are going to be many times stronger then drywall anchors. When you have hit a stud, use a screw. When you are just in the drywall, use a drywall anchor. Drilling out the strong wood to replace with weak plastic doesn’t make any sense.

What are wedge anchors?

Wedge anchors are designed to anchor objects into concrete. They are installed into a pre-drilled hole, then the wedge is expanded by tightening the nut to securely anchor into the concrete. They are not removable after the anchor is expanded.

What is a drop-in anchor used for?

Drop-In anchors should only be used in solid concrete. Their main use is to insert threaded rod to suspend electrical cable trays, HVAC ductwork and fire sprinkler pipe and heads. They can be used in applications that require a flush mounted anchor and when a bolt needs to be inserted and removed.

How much deeper than the anchor being installed should the hole be drilled?

Drill a hole 1/2″ deeper than the anchor will penetrate into the concrete making sure that the minimum embedment requirements are met. The hole can be drilled while the fixture is in place. It is important to make sure that the bit diameter being used will fit through the hole in the fixture.

Can I use wood screws with drywall anchors?

wood screw, keep in mind that screws are named for the material they’re intended for. So a drywall screw would be used for drywall, while a wood screw would be used for wood. While drywall screws are typically made of steel, wood screws are a combination of materials including steel.

What are anchors used for in construction?

An anchor is a steel element either cast into concrete or post-installed into a hardened concrete member and used to transmit loads to the concrete. Cast-in anchors include headed bolds, hooked bolts (J- or L-bolt), and headed studs.

What is sleeve anchor?

Sleeve anchors are versatile masonry expansion anchors. They can be used in a variety of base materials, and they are available in a wide variety of diameters, lengths, and head styles. They come preassembled, so they are ready for immediate installation.

What is an undercut drill?

The Undercut Drill Bit has a unique design that enlarges the bottom of the drill hole creating a reverse cone sized to receive the Atomic+ Undercut anchor.

How do you remove a Hilti anchor?

1. If the hole beneath the anchor is deep enough, simply pound it into the concrete with a hammer.
2. Use a saw or grinding wheel to cut the anchor off just above the surface, and pound the rest flat with a hammer.

What are masonry anchors made of?

They are available in one diameter of 1/4” and in lengths ranging from 1-1/2” to 4”. Zinc plated carbon steel is the only material that they are made from. They are not available in either hot-dipped galvanized or stainless steel. The split drive anchor comes in a round headed or a flat countersunk head.

What must be used to drill a hole in the masonry when installing a masonry fastener?

The 3/16” diameter masonry screw requires the use of 5/32” carbide tipped bit for drilling the hole. The 1/4” diameter requires the use of a 3/16” carbide tipped bit.

What is the rule of thumb for distance from an unsupported edge?

A rule-of-thumb in the concrete-fastener industry is that the minimum spacing should be 10 diameters from each anchor, and measured center to center. The spacing from an unsupported edge should be at least five-anchor diameters.

How deep do you drill for wedge anchors?

A 5/8” concrete wedge anchor requires a 5/8” hole to be drilled into the concrete. The hole in the concrete needs to be drilled a minimum of 1/2” deeper than the concrete wedge anchor will penetrate into the concrete.

What's the difference between a sleeve anchor and a wedge anchor?

A wedge anchor is for poured concrete and heavy duty application like anchoring the wooden structure of your house to the foundation. A sleeve anchor is somewhat lighter duty but has the advantage anchoring to mortar, brick or block where a wedge anchor is not recommended.

What is the strongest type of concrete anchor?

What are the strongest concrete anchors? Wedge anchors are typically the strongest anchors, but not every application requires a heavy-duty anchor. Some will do just fine with a plastic wall anchor or a nail-in version.

What are concrete anchors?

Anchor bolts are used to connect structural and non-structural elements to concrete. … A connection between structural elements can be represented by steel columns attached to a reinforced concrete foundation.
