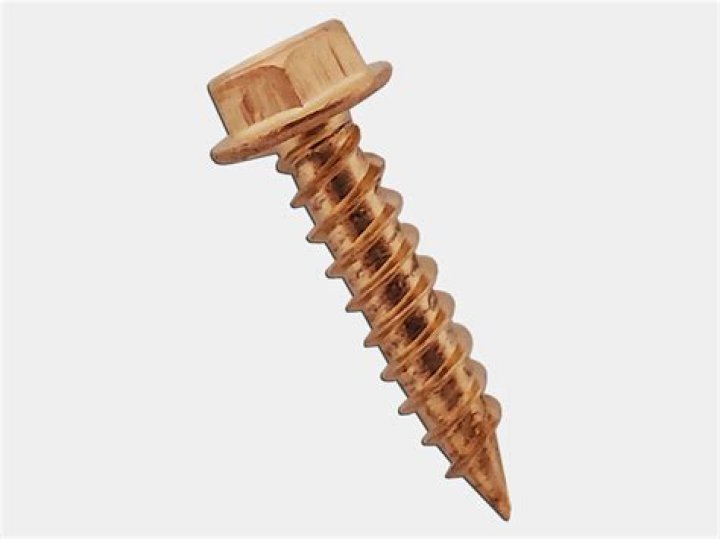

ZIP screws are fasteners that feature a threaded design that tapers to a fine needlepoint. These screws offer incredible penetrating power because their threads are machined all the way down to the end of the point.

What kind of screws are used to fasten metal?

Sheet metal screws – These have sharper threads for more easily connecting metal to wood, plastic or other pieces of metal. Machine screws – These have a uniform thickness instead of tapering off at the bottom, making them the best option for fastening appliance pieces, outlet boxes and other machine components.

Can Tek screws be used in wood?

Tek screws are commonly used in the electrical industry and other service jobs where there’s a need to attach metal to metal or wood to wood. Tek screws are especially helpful when you are fastening in volume. Naturally, the self-drilling nature of Tek screws makes the work go much faster.

What is self piercing screw?

Self-piercing screws are special fasteners that are designed to pierce light gauge metals and tap their own mating threads as they’re driven into the material. They are essentially the same as self-tapping screws, but with extra-sharp points that allow them to penetrate sheet metal.

What screws to use for ductwork?

Insert 1/2-inch self-tapping sheet metal screws through metal ducts where the ends come together. Turn the screw at high speed on the end of a drill and bit while pushing it firmly against the sheet metal. The screw will make its own hole and self-thread into the metal duct.

What are hex screws?

Hex bolts, or hex cap screws, are large bolts with a six-sided head (hexagonal!) used to fasten wood to wood, or metal to wood.

What are the 3 types of screws?

3 Common Screw Types at a Glance – Machine, Sheet Metal, and Cap Screws.

What's the difference between self-drilling and self piercing screws?

Like self-tapping screws, self-piercing screws tap their own mating threads when driven. The main difference is that they have an extra-sharp point, which allows them to pierce sheet metal. This is also different from self-drilling screws, which have a tip like a drill bit.

Do self piercing screws go through metal?

The most important difference between self-tapping and self-drilling screws is that self-tapping screws cannot go through metal without a pilot hole, which must be pre-drilled or pre-punched.

What is the difference between self tapping and self-drilling screws?

Whichever name is used, a self-tapping screw (or sheet metal screw), is designated as such because it contains form mating threads (thereby “tapping” the threads) in a pre-drilled hole into which they are driven. A self-drilling screw is a type of self-tapping screw that also features a drill point.

Article first time published on

Do you need a pilot hole for self tapping screws?

Self-tapping screws tap their own thread, which means they require a pilot hole which is slightly smaller than the diameter of the screw. … For that reason, they don’t require a pilot hole due to the drill bit end, and they were designed to secure thin pieces of metal together.

Why are they called Tek screws?

Back in the day, the original self-drilling screws were designed by Buildex. Their brand name was “Tek” screw. They became so popular that the word “tek” screw is now synonymous with self-drilling screw. … It was a real quality part, it allowed the screw to lock into the application like a “locking washer”.

What size are HVAC screws?

One of the most popular styles is the HVAC ZIP screw, ideal for light gauge sheet metal and residential duct work. Our HVAC screw sizes include 1/4″ hex head ZIP screws for residential HVAC and 5/16″ hex head self-drilling screws for commercial.

What screw should I use?

The general rule of thumb is that the screw should enter at least half the thickness of the bottom material, e.g. 3/4″ into a 2 x 4. The other factor is the screw’s diameter, or gauge. Screws come in gauges 2 through 16. Most of the time you’ll want to go with a #8 screw.

Why do some screws have no threads at the top?

Having an unthreaded shank at the top allows the tip of a wood screw to pull the screw into the wood just as a regular screw would. The difference is that the shoulder portion of the screw will actually slide through the first layer of wood and pull it against the head.

What type of screw is the strongest?

Structural screws (also called “construction” screws) are stronger than lags and make longer-lasting connections. You can just zip them in with any 18-volt drill (no pilot hole required).

How do you drill a hex screw?

Place a self-drilling screw into the hex head adapter. Depress the trigger of the drill slowly, while the drilling tip of the screw rests against the metal. Increase the speed of the drill when the screw finds its center. Stop drilling when the head of the self-drilling screw tightens against the surface of the metal.

Where are cap screws used?

Cap and machine screws are used to clamp machine parts together, either when one of the parts has a threaded hole or in conjunction with a nut. These screws stretch when tightened, and the tensile load created clamps the parts together.

How much weight can a self-tapping screw hold?

In general, a screw can hold 80-100 pounds. Several factors can impact on the amount of weight the screw can hold. This includes the length of the screw, the type of thread, the quality of the screw, the way it was inserted, and the type of forces that will be acting on it.

What is tek screw?

Tek screws are self-drilling screws that can help you tackle fastening jobs quickly. Commonly used in the electrical and roofing industries, these screws feature drill bit tips that eliminate the need to drill a separate pilot hole before inserting the screw.

What is a lath screw?

Teks Lath Screws provide secure metal-to-metal and metal-to-wood fastening with strong holding power, without the need to pre-drill. Self-tapping threads ensure strong holding power while the zinc plated finish protects the job’s appearance.

Can sheet metal screws be used in wood?

These screws are not really interchangeable. In a bind, if you’re short of the right available screws, you can use a sheet metal screw on wood. However, the opposite is not the case. Wood screws are unlikely to form a tight enough joint when used on sheet metal – especially if they have a threadless shank.

Can you screw into aluminum?

Self-tapping screws, also called sheet metal screws, are very versatile. They can be used to securely fasten metals together, including aluminum. … To use self-tapping screws, place the screw directly on the aluminum sheet. Stabilize the screw so it doesn’t tilt as it goes in and twist the screw into the metal.

How do you know if a screw is self tapping?

Self tapping screws are ideal for all sorts of materials, including wood, metal, and brick. For harder surfaces, self tapping screws might have little notches on the thread to help cut the thread, just like a tap. Not all tapping screws have a pointy tip, some will be blunt or flat.

What is Panhead screw?

A pan head self-drilling screw has a rounded base and a flat head that sits on top of the material it fastens. With its large diameter and high edges, the drive slot is deep, which allows for increased torque while minimizing the risk of damage to the screw.

How do you drive a self tapping screw?

Position the screw straight in line with the hole and turn it in, one or two turns, by hand. This allows the screw to be left in the hole as you pick up your screwdriver or drill machine. Using firm short movements, screw the self-tapping screw in place using a Phillips or flat head screwdriver or drill bit.

How thick of metal can self-tapping screws go through?

Designed to not only drill through thick, hardened, or complex alloy steel, but can also pass stringent 1mm + 2mm + 9mm, and 2mm + 12mm penetration tests.

Should you pre drill drywall screws?

You should drill a pilot hole for any screw that has that cone shape under the screw head. It’s very possible to split the wood when you force the screw into the wood to countersink it.

Are self drilling screws good for wood?

Self-tapping screws are ideal for drilling into metal and other hard materials, but are not useful for soft materials — such as wood — that require the screw to force a path into the material for increased holding strength. Self-tapping screws are more dependable for installing into stone or brick.

How do you attach a 2x4 to a metal beam?

1. Cut the top board.
2. Choose lag bolt size.
3. Drill holes through the steel beam.
4. Attach the wood board to the top of the steel beam.
5. Hang top-mount hangers on the wood.
6. Affix rafters/floor joists to hangers.

Can you screw wood into metal?

1) Screws. Screws are usually used to fasten wood piece to each other in indoor or outdoor structures. It is also possible to fasten wood to a metal structure using special screws that are intended to hold the wood and metal pieces together while preventing undue pressure.
