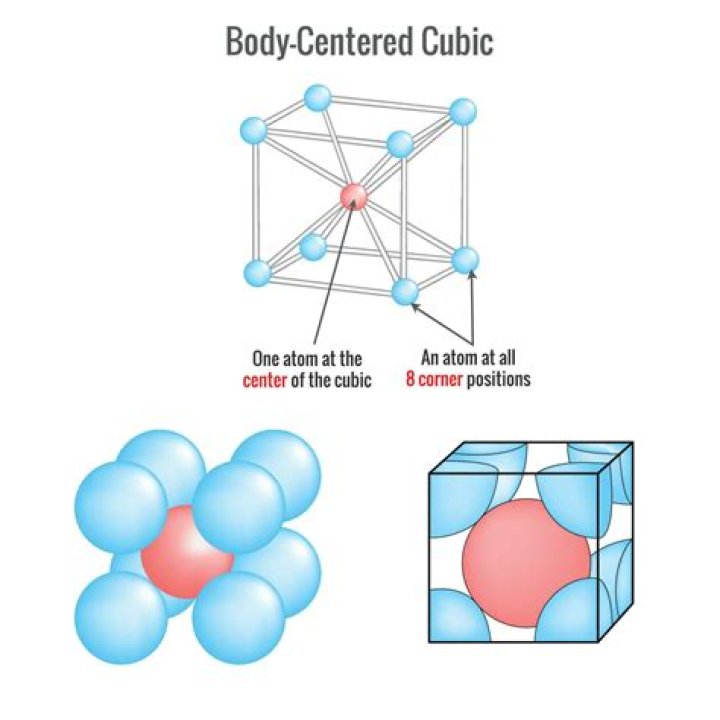

Body-centered cubic (BCC) is the name given to a type of atom arrangement found in nature. A body-centered cubic unit cell structure consists of atoms arranged in a cube where each corner of the cube shares an atom and with one atom positioned at the center.

What is a body Centred cubic system?

Body-centered cubic (BCC) is the name given to a type of atom arrangement found in nature. A body-centered cubic unit cell structure consists of atoms arranged in a cube where each corner of the cube shares an atom and with one atom positioned at the center.

What does BCC mean in chemistry?

BCC – Body Centred Cubic – and FCC – Face Centred Cubic – are descriptions of the arrangement of atoms in crystal structures. Most metal and alloys are crystalline, which means that their atoms arrange themselves in an ordered pattern.

Why does body-centered cubic exist?

A third common packing arrangement in metals, the body-centered cubic (BCC) unit cell has atoms at each of the eight corners of a cube plus one atom in the center of the cube. Because each of the corner atoms is the corner of another cube, the corner atoms in each unit cell will be shared among eight unit cells.

What are the examples of BCC?

Examples of bcc include iron, chromium, tungsten, and niobium. Examples of fcc include aluminium, copper, gold and silver.

What is the difference between body centered cubic and face centered cubic?

The most direct difference between FCC and BCC crystals is in the atomic arrangements. The face-centered cubic structure has an atom at all 8 corner positions, and at the center of all 6 faces. The body-centered cubic structure has an atom at all 8 corner positions, and another one at the center of the cube.

Is CCP and BCC same?

Type of packingPacking efficiencyNo. of atoms per unit cellbcc68%2fcc74%4ccp74%6hcp74%6

What is lattice point?

A lattice point is a point at the intersection of two or more grid lines in a regularly spaced array of points, which is a point lattice. In a plane, point lattices can be constructed having unit cells in the shape of a square, rectangle, hexagon, and other shapes.

Is gamma iron a body-centered cubic space lattice?

The alpha iron (α-Fe) is a body-centered cubic (BCC) and the gamma iron (γ-Fe) is a face-centered cubic (FCC).

What is face-centered cubic unit cell?

Face-centered cubic (FCC or cF) is the name given to a type of atom arrangement found in nature. A face-centered cubic unit cell structure consists of atoms arranged in a cube where each corner of the cube has a fraction of an atom with six additional full atoms positioned at the center of each cube face.

Article first time published on

What is the volume of a body centered cubic unit cell?

The volume V of the cell will be a^3, that is (64/9)(sqrt3)r^3, that is about 12.32r^3. When considering a one-atomic basis there are n=2 points per unit cell with a volume of Vsph=43πr3 V sph = 4 3 π r 3 each.

How many atoms are in a body centered cubic unit cell?

Body Centered Cubic This unit cell uses nine atoms, eight of which are corner atoms (forming the cube) and one more in the center of the cube. The corners contribute only one net atom and the center atom contributes another for a total of two net atoms.

Is pearlite a BCC?

A lamellar structure of metal, consisting of alternating layers of ferrite, with a BCC structure, and cementite, with an orthorhombic structure, in relatively equal measure. Pearlite is formed as austenite is cooled at a slow rate, and is relatively soft and ductile.

Why can simple cubic be base centered?

Combining two lattice points into a single basis hides some of the symmetry of the structure. In fact, the reason the c-centred (or base-centred) cubic lattice does not exist is that it can be respelled as the simple tetragonal lattice without any loss of symmetry, as shown in this diagram: Image source.

What is edge length in face Centred cubic unit cell?

The edge length of a face centred cubic unit cell is 508 pm.

Is gold metal a simple cubic unit cell?

For all unit cells except hexagonal, atoms on the faces contribute 12 atom to each unit cell, atoms on the edges contribute 14 atom to each unit cell, and atoms on the corners contribute 18 atom to each unit cell. Metallic gold has a face-centered cubic unit cell (part (c) in Figure 12.5).

Is cubic close packing FCC?

The FCC arrangement can be oriented in two different planes, square or triangular. … They are called face-centered cubic (FCC) (also called cubic close packed) and hexagonal close-packed (HCP), based on their symmetry.

Is cubic close packing same as FCC?

Close Packed Structures. Face Centered Cubic (fcc) or Cubic Close Packed (ccp) These are two different names for the same lattice.

What is cubic closest packing?

Cubic Close Packing. Face Centered Cubic Cell. Closest packed means that the atoms are packed together as closely as possible. The FCC unit cell is actually made of four cubic close packed layers (click to show the unit cell with layers). The first layer of atoms pack together as close as possible.

Is body-centered cubic close packed?

BCC structures have no close packed planes. Its coordination number is just the number of equidistant neighbors from the atom in the center of the unit cell.

Is graphite FCC or BCC?

MaterialLattice constant (Å)Crystal structureC (graphite)a = 2.461 c = 6.708HexagonalSi5.431020511Diamond (FCC)Ge5.658Diamond (FCC)AlAs5.6605Zinc blende (FCC)

Is martensite FCC or BCC?

For example, it has been shown that martensite has a BCC structure in the low carbon range up to 0.6mass% C.

Why does iron change from BCC to FCC?

Iron atoms are arranged in a body-centered cubic pattern (BCC) up to 1180 K. … The transition from BCC to FCC results in an 8 to 9% increase in density, causing the iron sample to shrink in size as it is heated above the transition temperature.

What is the difference between alpha ferrite and delta ferrite?

Alpha ferrite forms by the slow cooling of austenite, with the associated rejection of carbon by diffusion. … Delta ferrite is the high temperature form of iron, formed on cooling low carbon concentrations in iron-carbon alloys from the liquid state before transforming to austenite.

How many lattice points are in a simple cubic?

In simple cubic lattice(SCC), lattice points are 8 corners. Hence 8 lattice points.

What is difference between lattice and crystal?

What is the difference between Lattice and Crystal? Lattice describes the structure of crystals. When a group of molecules tends to arrange each unit repeatedly at a lattice point, a crystal is made. In a crystal structure, there is a pattern of arranging the atoms or units.

Is crystal lattice and space lattice same?

Crystal lattices The three-dimensional network of imaginary lines connecting atoms is called the space lattice. A crystal is an arrangement in three dimensions of atoms or molecules in repetitive patterns.

What is the difference between a primitive and body centered unit cell?

Primitive cells contains their lattice points at their corners . Unit cells contains their lattice points not only at their corners as well as in its center.

Which one of the following is body centered cubic?

Examples of metals with the bcc structure are alpha iron, tungsten, chromium, and beta titanium.

How many gold atoms are in exactly 1 cm3?

There are about 1024 atoms in a 1 cm cube.

Why is the simple cubic structure so rare?

The simple cubic structure (sc) The simple cubic structure with only one atom per lattice point is relatively rare in nature, as it is fairly unstable because of its low packing efficiency and low number of nearest neighbour around each atom. Polonium (Po) is reported to crystallize in the simple cubic structure.
