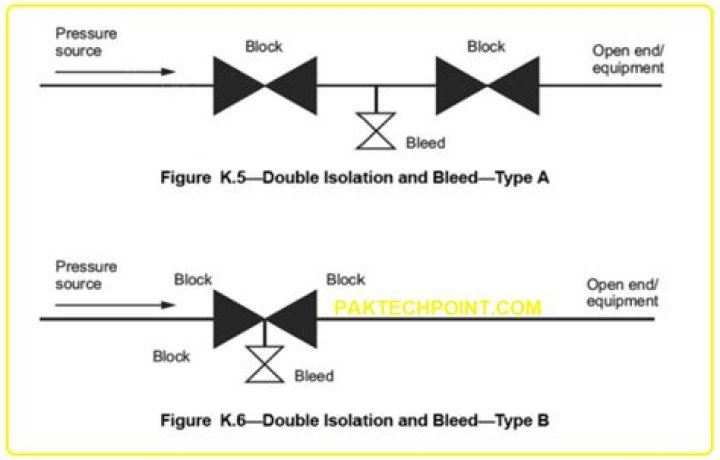

A double block and bleed is often used for a more positive isolation of a process fluid from other equipment. It normally consists of two block valves (Valves 1 and 2 in the pictures) and a bleed valve (Valve 3) to a safe location, consistent with local environmental regulations.

What is double block and bleed?

Double block and bleed (DBB) is the practice of shutting in a section of pipe on both sides of the valve rather than just one. It means you close the ball valves to block both the upstream and downstream sides of your working area, and then bleed any pressure that remains in the piping and valve.

What is meant by double block?

a block having two sheaves or pulleys.

What is a block and bleed valve used for?

The purpose of the block and bleed manifold is to isolate or block the flow of fluid in the system so the fluid from upstream of the manifold does not reach other components of the system that are downstream. Then they bleed off or vent the remaining fluid from the system on the downstream side of the manifold.

What is a double blocked class?

The basic concept of using Double Blocks is to schedule two meetings of the same class. For example, block D is identified as a “Double” block type, and is intended to overlap blocks B and C. The teacher and students can only be scheduled in D. They cannot also be scheduled in B and C.

What does an isolation valve do?

Isolating valves, also known as an isolation valve, are used to regulate the flow of water from the mains to a water service pipe. They can be used to repair a dripping tap where there is no need to turn off the mains water if one of these valves is installed.

Is double block and bleed required for confined space?

Before anyone enters a confined space, steps should be taken to lockout energy hazards, double block and bleed lines that run into the space, ventilate the confined space if it contains a hazardous atmosphere, and remove engulfment hazards. Confined spaces are dangerous enough without these additional hazards.

What is the purpose of a block valve?

A gate valve can stop, or block, the flow of a fluid. A block valve is technically any valve that has the capacity to block movement in one or more directions. In practice, most people refer to a block valve as a valve that can prevent motion or allow motion to happen without restriction.

What is positive isolation?

Positive isolation is the isolation of process piping, equipment, or vessels from hazardous materials such that it is impossible for the material to enter the work area. Positive isolation must remove all risk of accidental reconnection to the source of the hazard due to equipment failure or operator error.

What is a single block and bleed?

Single block and bleed valves are used to achieve positive isolation when performing maintenance activities in a live process plant. Typically one block valve and a bleed valve are manufactured as a single assembly and this block and bleed valve manifold can be readily installed for isolation purpose.

Article first time published on

What is a twin seal valve?

An alternative to the original two-valve system, the GENERAL VALVE Twin Seal plug valve has just. one double-seated bubble-tight valve The upstream and downstream seals provide the same function. as the two block valves The body serves as a spool piece and the body bleed verifies seal integrity

What is valve and types?

• Isolation Valves: Ball, butterfly, diaphragm, gate, pinch, piston, and plug valves.
• Regulation Valves: Ball, butterfly, diaphragm, globe, needle, pinch, and plug valves.
• Safety Relief Valves: Pressure release and vacuum relief valves.

What is bleed valve in gas turbine?

A bleed valve for bleeding air from a compressed air chamber at start-up of a gas turbine engine is self-actuated. The bleed valve moves between open and closed positions based on the pressure within a compressed air chamber.

What is a globe valve?

A globe valve regulates flow in a pipeline. It is used to control or stop the flow of liquid or gas through a pipe. Globe valves are named for their spherical body shape with the two halves of the body being separated by an internal baffle. … Globe valves are also known as throttle valves.

What is SBB valve?

SBB Ball Valves (Single block &bleed) Single block & bleed valves are recommended for low pressure classes ensuring long-lasting seal. Floating type valves are more often required, however it is possible to supply the Trunnion version valve, too. Main applications in the petrochemical field: Cryogenic service.

What does double block mean in high school?

Block scheduling is a term used to describe how classes are scheduled in RRISD high schools. You will have eight classes on your schedule, but you will only attend four each day. … Double blocked classes require two periods from your schedule.

Is block scheduling good or bad?

With the added hour of learning that block scheduling presents, it is harder to make up work in a class if a student is out for a few days. … Block scheduling is not only extremely stressful on students, but in the end, it’s not much more beneficial than having a class during the entire year.

What are block days?

LAST UPDATED: 08.29.13. A block schedule is a system for scheduling the middle- or high-school day, typically by replacing a more traditional schedule of six or seven 40–50 minute daily periods with longer class periods that meet fewer times each day and week.

Is double block and bleed required by OSHA?

The only OSHA standards that make mention of the phrase “Double Block and Bleed” (DB&B) are its Permit-Required Confined Space (PRCS) standards.

What is the acceptable oxygen level in a confined space?

19.5 % Minimum acceptable oxygen level. 15 – 19% Decreased ability to work strenuously.

What does blanking mean OSHA?

Blanking or blinding means the absolute closure of a pipe, line, or duct by the fastening of a solid plate (such as a spectacle blind or a skillet blind) that completely covers the bore and that is capable of withstanding the maximum pressure of the pipe, line, or duct with no leakage beyond the plate.

Is an isolation valve the same as a gate valve?

Both ball valves and gate valves are isolation valves that offer a degree of flow regulation. … They use a quarter turn of the handle to turn the ball horizontally to block off the bore that allows fluids to flow. By contrast, a gate valve uses a plate, disc, or wedge to interrupt or allow flow stream.

Where is the isolation valve?

The isolation valve is usually located under your toilet or tap. To turn it off you’ll need a flat head screwdriver. When the water’s on, the slot on the isolation valve should follow the pipe work. To turn the water off, give the slot a quarter turn in either direction, so it’s going across the pipe work.

What is the difference between a service valve and an isolating valve?

Servie valves are located at a water outlet, taps, showers, cisterns etc and isolation valves isolate a number of appliances like a bathroom or kitchen etc.

What are the 4 types of isolation?

Four isolation categories are widely recognized –standard, contact, airborne, and droplet precautions.

What is isolation method?

1) In the isolation method, the concentrations of all the reactants except one are made to remain constant throughout the course of the reaction by taking them in large excess. … 2) The experiment is repeated by isolating one of the reactants each time and determining the rate law with respect to the isolated species.

What is single valve isolation?

Single valve isolations may be considered as the sole means of isolation for routine, short duration, cold work where pressures on the active side are less than 200 kPa g. The duration of work shall be short (less than 4 hours) and the immediate work site shall not be left unattended.

How do you test a double block and bleed valve?

DBB | Double Block & Bleed testing The pressure test is performed simultaneously from both valve ends while the valve and its cavity are completely filled with test fluid: fluid detection are monitored by overflow through the bleed.

What is considered a block valve?

Generally, block Valves should be considered for the onstream isolation of equipment if the fluid is flammable or otherwise hazardous, or if the fluid is in high-pressure or high-temperature service. Where double block Valves are used, a NPS 3/4 or larger bleed Valve should be installed between the block Valves.

What is a manifold block?

Manifold Blocks comprise interconnections of hydraulic valves. … These valves work to regulate the flow of oil in the circuit and then direct it to a hose system connected to a work device. It is how the Manifold controls distribution. The consolidation of varied parts in a metal chunk comes with its advantages.

What is bleed in piping?

DIB valves are used for providing a double isolation barrier between the pressurized system and the part that requires being open for maintenance or modification. From: A Practical Guide to Piping and Valves for the Oil and Gas Industry, 2021.
