The latest National Electrical Code requires both AFCI and GFCI protection only in kitchens and laundry rooms. And within those rooms, the Dual Function AFCI/GFCI Receptacle provides what is called “feed-through” protection, which means it provides protection for all wiring and extensions attached to the load side.

What is feed through wiring?

One method is the feed-through: uses the receptacle to carry on the circuit elsewhere and the receptacle must be designed to do so (note that not all receptacles allow feed-through), the other method is the pigtail one: wires are twisted inside a wire nut. They are both equally safe if done properly.

Can I run another outlet from a GFCI outlet?

You can replace almost any electrical outlet with a GFCI outlet. Correctly wired GFCIs will also protect other outlets on the same circuit. … We’ll show you how to replace a standard duplex receptacle with a GFCI and wire it to protect other outlets.

How many outlets can a GFCI feed?

There’s no limit. A standard GFCI will protect up to 20 amps, drawn from any combination of receptacles, either the built-in one or any number of additional ones connected to its load terminals.

What are the 3 types of GFCI?

The three most common types of GFCIs are the outlet, the circuit breaker and the portable one.

Is Pigtailing outlets safe?

As long as the receptacle is rated and UL-listed for feed-through wiring, as well as properly installed, it should be safe as intended by UL’s Standard for Safety (UL 498), which covers receptacles. The pigtail method transfers the connection point from the receptacle to a wire nut.

Can GFCI go in middle of circuit?

You can install a GFCI in the middle of a circuit but you have to realize that the GFCI will only protect the outlets downstream. All the outlets that came before the middle outlet won’t have GFCI protection.

Is there a difference between GFI and GFCI?

See All Servies. Ground fault circuit interrupters (GFCI) and ground fault interrupters (GFI) are the exact same device under slightly different names. Though GFCI is more commonly used than GFI, the terms are interchangeable.

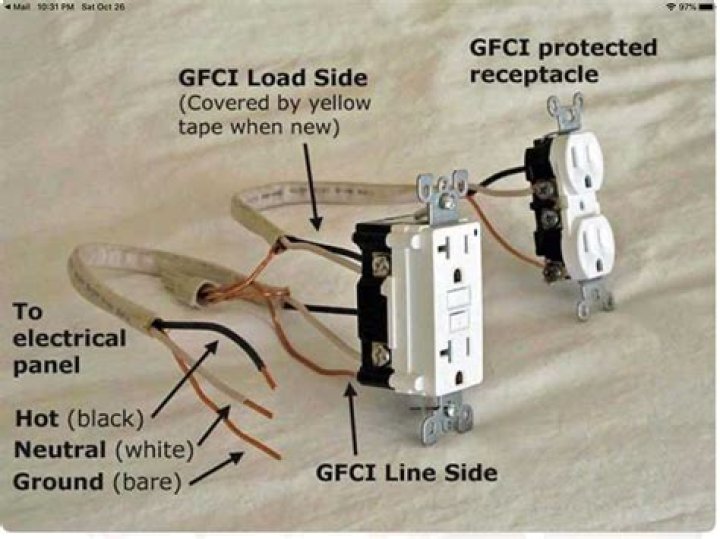

Does power go to line or load on GFCI?

The “line” wires are the incoming power from the breaker box and the “load” wires are the outgoing power that travels down the circuit to the next outlet.

Can you put 2 GFCI outlets on the same circuit?

To save money, you can put in a single GFCI and then wire additional standard outlets to the “LOAD” output from the single GFCI. … This provides the same protection as having a GFCI at each location.

Article first time published on

Do I need GFCI on every outlet?

The NEC requires GFCIs on all exterior and bathroom receptacles (another term for outlets). GFCIs are also required on all receptacles serving kitchen countertops. … In bedrooms, living rooms, and other areas where water fixtures are not found, regular outlets are fine—and they are still installed in today’s new homes.

Can I replace GFCI myself?

After you have removed the old outlet, you can begin replacing it with the new GFCI outlet. Using your needle nosed pliers or wire cutter, make sure the wires are straight and able to be put into the new GFCI outlet. As you begin, turn the outlet over. … You only want to be rewiring your GFCI outlet into the line screws.

What happens if GFCI gets wet?

To turn off a wet GFCI outlet manually, all you have to do is press the reset and the test button at the same time. … Water can result in an interruption that will make the outlet stop working; however, the wires that are connected to the outlet may carry a live electrical current.

Is there a difference between an indoor and outdoor GFCI?

Outdoor electrical outlets differ from indoor outlets because they have watertight covers that protect the outlet even with a cord plugged in. … GFCI outlets trip and turn off automatically when there’s a current leakage or short circuit, which helps prevent fires and accidental shocks.

What is the basic function of GFCI?

The ground-fault circuit interrupter, or GFCI, is a fast-acting circuit breaker designed to shut off electric power in the event of a ground-fault within as little as 1/40 of a second. It works by comparing the amount of current going to and returning from equipment along the circuit conductors.

Where should a GFCI outlet be placed in a circuit?

GFCI outlets must be installed in any area where electricity and water may come into contact, including basements, pools, spas, utility rooms, attached garages and outdoors. At least one GFCI outlet is required in an unfinished basement and for most outdoor outlets.

Are outlets downstream of GFCI protected?

One of the best features of GFCI (Ground Fault Circuit Interrupters) is their downstream protection. That means the same safety feature you get from a GFCI outlet is automatically applied to all other outlets wired further down on the same circuit, as long as the outlets are wired properly.

Why are there two screws on each side of an outlet?

One side of the receptacle has (2) brass screws and the other side has (2) silver screws. The hot side of the circuit (black wire) should be wired to the brass screws while the neutral side of the circuit (white wire) should be wired to the silver screws.

What does pigtail mean in electrical?

An electrical pigtail is a technique used to lengthen short wires or combine multiple wires together and leave one conductor that can connect to electrical devices such as a switch or outlet, and it’s simple enough for homeowners to perform on their own.

How many outlets can you daisy chain?

How many outlets can you daisy chain? – Quora. It depends where you live. In North America the general limit is 12 and in some cases, e.g. the kitchen splits, it is 1. In the UK you are allowed as many outlets as you want on one circuit, as long as the area covered does not exceed 100 square metres.

What might happen if the line and load connections of a feed through GFCI receptacle were reversed?

Here’s what happens when somebody wires a GFCI receptacle with the load and line wires reversed: The GFCI will work, in the sense that you can plug in a hair dryer and the hair dryer will blow hot air. … If the load and line wiring gets messed up, a ground fault (radio in the tub) won’t trip the GFCI.

How do you tell the difference between a line and a load?

The line side of an outlet is where you connect the incoming source power. The load side is where the power leaves the device (or electrical box) and travels down the circuit.

Should a refrigerator be on a GFCI circuit?

Should a refrigerator be plugged into a GFCI outlet? A refrigerator shouldn’t be plugged into a GFCI outlet. GFCI outlets are used in areas of the home with water or moisture. These include bathrooms, basements, and kitchens.

Why does a GFCI trip?

Most often, when a GFCI “trips” it is the result of a faulty appliance plugged into the outlet or an outlet down circuit. … Simply push the TEST button to turn power off to the circuit which should cause the RESET button to pop up. You will need to hit RESET to turn the GFCI back on.

Are GFCI outlets better?

Although proper grounding is still best, a GFCI receptacle can prevent shocks without it. … A faulty appliance may spark flames as it delivers an electrical shock. You can avoid or reduce the severity of both problems with GFCI receptacles. An outlet will trip circuit breakers less frequently if it uses this technology.

How far does a GFCI have to be from water?

According to the National Electric Code, any receptacle within 6 feet of a water source needs to be protected with a GFCI.

When did GFCI become code?

Receptacles in the kitchen were first required to be GFCI-protected by the 1987 edition of the National Electrical Code (NEC), and initially only for counter receptacles within 6 feet of a sink.

How far does a GFCI have to be from a sink?

Generally, all 15 or 20-amp, single phase, 125-volt receptacles “within 6 ft.” of a sink, tub or shower must be GFCI protected. For a sink, the measurement starts “from the top inside edge of the bowl of the sink”. For a bathtub or shower, the measurement starts at “the outside edge of the bathtub or shower stall”.

Do kitchens need GFCI?

Kitchens: All receptacles serving countertop areas and any receptacle within 6 feet of a sink must have GFCI protection. … Laundry, utility, and wet bar sinks: Where receptacles are placed within 6 feet of the outside edge of the sink, they require GFCI protection.

Is GFCI required in garage?

GFCI protection is required for 125-volt to 250-volt receptacles supplied by single-phase branch circuits rated 150 volts or less to the ground. GFCI receptacles are required in bathrooms, garages, crawl spaces, basements, laundry rooms and areas where a water source is present.

Does a dryer need a GFCI?

First, receptacles installed to serve kitchen countertops must be GFCI protected. … Therefore, clothes dryers are now required to be GFCI protected because they are in the laundry area.
