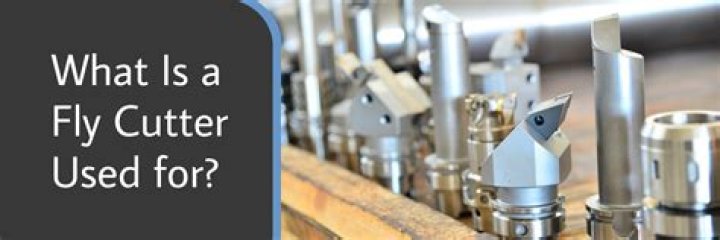

The general definition of a fly cutter is a tool holder for a single-point cutting tool that sweeps the tool in a circle over the surface of a fixed workpiece. The tool flies over the work, unlike a conventional single-point lathe tool, where it is the work that moves.

How is fly cutter used?

Fly cutters are used primarily on a milling machine for machining large, flat surface areas. The fly cutter is a single-point cutting tool similar to a lathe tool mounted in a special holder. The cutter can be adjusted to cut up to a 2.00″ (51 mm) diameter and is easily capable of taking a .

How many teeth does a fly cutter have?

Milling cutters may have from one to many teeth, with two, three and four being most common. Typically, the more teeth a cutter has, the more rapidly it can remove material.

What is a fly cutter bit?

A fly cutter is a single-point rotary cutting tool primarily used on a milling machine for machining large and flat surfaces. The fly cutter is composed of a body into which one or two tool bits are inserted. Most fly cutters are available with a holder, drawbolt, thrust washer, and a left-hand carbide cutting tool.

What do you use a reamer for?

reamer, rotary cutting tool of cylindrical or conical shape used for enlarging and finishing to accurate dimensions holes that have been drilled, bored, or cored. A reamer cannot be used to originate a hole.

What is a side milling cutter?

Definition of side milling cutter : a cylindrical milling cutter with teeth on the circumferential surface and on both sides.

What is a shell mill used for?

Face milling, in general, is defined as the process of cutting surfaces that are perpendicular to the cutter axis, or the faces of a part. Shell mills and fly cutters are most often used for face milling, but depending on what kind of surface finish you’re looking for, you could use an end mill as well.

What is the difference between a right hand and a left hand milling cutter?

Put the edge of the milling cutter vertically upward. If the rising direction of the cutting edge is low left and high right, that is, from left to right, it is a right-hand milling cutter. … Compared with a milling cutter, it is the metal debris cut.

What is a Flycutter a good and inexpensive surface finishing tool?

Fly Cutters are a type of Face Mill that only uses 1 cutting edge. There are 3 big reasons fly cutters are used: They produce a better surface finish than most Face Mills. They’re inexpensive relative to Face Mills.

Which cutting tool is used in milling machine?

Slab mill. Side-and-face cutter. Involute gear cutter. Fly cutter.

Article first time published on

What type of cutting tool is usually used for milling 3D surfaces?

a ball-end milling cutter frequently is employed to machining variable curvature profiles when taking place machining 3D surfaces. The difference in the position of the tool’s contact with the machining surface leads to varying the force, speed, and temperature of cutting.

What is valve pocket?

The purpose of the valve pocket recess in the piston is to allow for clearance between the valve head and the piston crown when the piston is at or near top dead centre and the valve is partially open.

What is valve clearance?

Tappet clearance, also known as valve clearance, is the small gap between the rocker arm and the top of the valve stem (Yoke). Engineers can observe and adjust tappet clearance only when the valves are in a closed position and the engine is cooled at the compression stroke.

What is a fly cut piston?

Product Description. FLY CUTTING PISTONS IS DONE FOR INCREASED VALVE CLEARANCE WHEN RUNNING LARGER THAN STOCK CAMS. PLEASE CALL WHEN ORDERING IF YOU ARE NOT SURE WHAT FLY CUT DEPTH YOU NEED.

What are the types of reamer used?

• Chucking Reamer. High Speed Steel Duplex Chucking Reamer with a Straight Shank. …
• Adjustable hand reamer. Adjustable hand reamer. …
• Straight reamer. A straight reamer is used to make only a minor enlargement to a hole. …
• Rose reamer. …
• Shell reamer. …
• Tapered reamer. …
• Combination reamer. …
• Tapered reamer (non-precision)

What does H7 mean on a reamer?

Hole and shaft basis For example, in H7/h6 (a commonly-used fit) H7 represents the tolerance range of the hole and h6 represents the tolerance range of the shaft. These codes can be used by machinists or engineers to quickly identify the upper and lower size limits for either the hole or shaft.

How many types of reamer are there?

Reamers Designs The lands should be large enough to prevent the deflection back from the cutting edges of sufficiently large sections to contain metal that dissipate the generated heat at the cutting edges adequately. Reamers are classified into two types either hand type or machine type.

How is a milling cutter mounted?

Milling is done using a cylindrical milling tool mounted in a milling tool holder that is then mounted in the tool spindle on the machine. End mills are the most common milling cutters. … A square end mill is used for most general milling applications. It produces a sharp edge at the bottom of pockets and slots.

What is the use of formed cutter?

The form-cutting method uses a cutting tool that has the same form as the space between two adjacent teeth on a gear. This method is used for cutting gear teeth on a milling machine.

What is plain milling cutter?

[′plān ¦mil·iŋ ‚kəd·ər] (design engineering) A cylindrical milling cutter with teeth on the periphery only; used for milling plain or flat surfaces. Also known as slab cutter.

What is a face mill?

Definition of face milling : the process of milling flat surfaces that are at right angles to the axis of rotation of the cutter.

What is milling in engineering?

Milling, simply, is the process of cutting and drilling materials at different angles across multiple axes.

Which type of cutter is used for milling the flute on taps or reamers?

Top and Reamer Cutter Top and reamer cutter is double angle type; these are usually used to create grooves and flutes in taps or reamers. Tap and reamer are use as thread cutting tool for softer material workpieces.

What is angle milling cutter?

Angle cutters are milling cutters with the cutting face angled with respect to the axis of rotation. … Examples include single angle cutters and double angle cutters. Single angle cutters are those which have teeth on the conical or angular face of the cutter and also on the large flat side.

What is the difference between a plain milling cutter and a side milling cutter?

These cutters are used for cutoff operations and for milling deep, narrow slots, and are made in widths from 1/32 to 3/16 inch. Side milling cutters are essentially plain milling cutters with the addition of teeth on one or both sides. A plain side milling cutter has teeth on both sides and on the periphery.

What is a form cutter?

Definition of form cutter : a cutting tool having its edge shaped to the profile to be imparted to the work.

What is a hollow mill?

Definition of hollow mill : a milling cutter with three or more cutting edges enclosing and revolving around the cylindrical workpiece.

What is a slot drill?

Slot drills are a type of milling cutters distinguished from the drill bit in its application, geometry, and manufacture. While a drill bit can only cut in the axial direction, milling or slot drills bit can generally cut in all directions, though some cannot cut axially. They are typically used in: Apply filters.

What is the most common cutting tool for the lathe?

• Chamfering Tool.
• Knurling Tool.
• Parting Tool.
• Thread Cutting Tool.
• Facing Tool.
• Right-Hand Tool.
• Left-Hand Tool.
• Round Nose Tool.

How can you tell if a tool is left or right handed?

A right-hand cutting tool removes metal when moving from right to left. This is the most common turning activity, cutting towards the lathe chuck. The cutting edge is on the left side. Tools where the second letter is “R” are right-hand tools.
