PVC unions and PVC pipe union connectors are pipe fittings designed to connect two pipes together without the use of a sealant or traditional glued coupling. … This means that wherever you use a PVC union to connect pipes together these pipes can be disconnected and worked on with relative ease.

What is the purpose of PVC union?

The union will create a seal between two pipes so that one does not need to use the conventional glued coupling method, of a PVC fitting and glue to connect two pipe lengths together. The union would generally replace the use of a PVC coupling in connecting pipes.

How long will a PVC union last?

This entry was posted on January 9, 2020 by Korey Kashmer. As one of the most-used plumbing materials, PVC pipe is known for being very durable and long-lasting. In fact, PVC pipes last approximately 100 years.

What is the difference between coupling and union?

The basic difference between a coupling and a union is that a coupling is for joining pipe to pipe or pipe to a swedge. A union is made for joining and disassemble of a part of a piping system (a steam trap or control valve, etc) for maintenance or replacement.

Are PVC unions reliable?

Plastic piping and threaded fittings are extremely reliable at providing a leak free service. Issues with stress cracking of PVC threaded fittings can be easily avoided by adhering to proper installation guidelines.

Are all PVC unions the same?

As mentioned in a previous blog post about PVC pipe outer diameter, PVC pipe and fittings use a nominal system for standard sizing. This is so all parts with the same size in their name will be compatible with each other.

How does a pipe union fitting work?

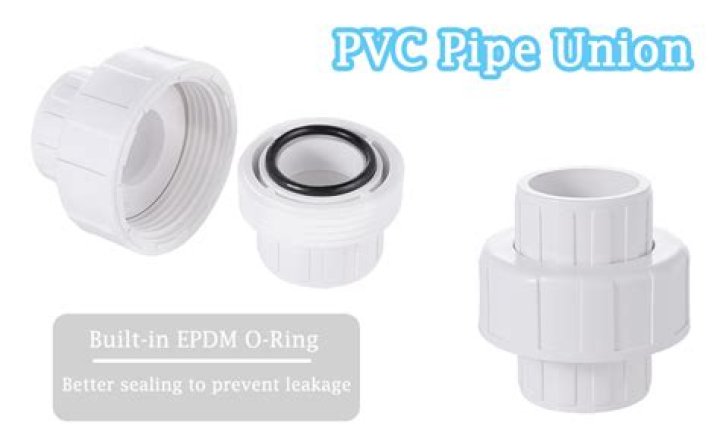

A pipe union consists of three parts – a nut, a female end and a male end. To make an effectively working pipe fitting, both the male and female ends are sealed together with the help of nuts. A female threaded fitting has threads on the inside, while in the male-threaded fitting, the threads are on the outside.

How do you fix a leaking PVC union?

Epoxy. Repair epoxy is putty or viscous liquid that can be used to repair pipe leaks on PVC and its joints. To repair your pipe or joint using epoxy, first clean and dry the damaged area, ensuring water can’t reach the affected area. If necessary, mix the putty or liquid according to the manufacturer’s directions.

Which direction does a PVC union go?

PVC Unions are non-directional in terms of flow, and position is usually determined to allow for easy access and disassembly. Before assembly, remove the O Ring and lube generously with teflon lube so the O ring is coated in lube on all sides.

Are PVC Unions water tight?

On their own, without any type of adhesives or lubricants, PVC fittings will fit fairly snugly. That being said, the connection between the pipe and the fitting will not be watertight.

Article first time published on

What is difference between socket and union?

There are two connection forms for unions, i.e. socket welding and threaded connection. The socket welding is to insert the steel pipe into the socket to get welded. … The union is widely used to connect pipes of different calibers, and is also widely used for connection of instruments, valves and pipes.

Why we are use Union in pipe line?

When two ends of pipes are joined, the pipe fitting used is called union. … It is used to connect pipes of different diameters. A reducer may be of various types like reducer tee, reducer elbow and reducer socket (Fig. 5.12).

Does PVC get brittle with age?

Yes, it does. The time frame is usually measured in decades, but PVC does embrittle with time. Glassy polymers, such as PVC, are known to become more brittle in the course of time due to physical aging.

Is PEX better than PVC?

When a connection to copper or other metal pipes is required, PEX works better than PVC because crosslinked polyethylene won’t corrode. … When you compare the material costs of PEX vs PVC, PEX comes out more expensive. (However, balance this factor against the lower labor cost to install PEX.)

Can PVC pipe crack?

Under normal conditons, PVC pipe is typically very crack-resistant. PVC pipe is both durable and flexible and generally does not form cracks under normal service operation. However, with improper use or installation, or in extreme environments, PVC can crack.

Do you put Teflon tape on PVC fittings?

The right way to assemble a threaded PVC joint-Schedule 40 or 80 is finger tight plus one to two turns-no more. Two turns past finger tight plus the stress of the system pressure is within the tensile strength of one-inch PVC. ([1,788 psi x 2] + 2,000 psi = 5,576 psi). Don’t use Teflon tape, Teflon paste or pipe dope.

Does it matter which way you install a union?

No. In some applications, it is common to flow from the nut side to the external thread side, but this is not required. There are also applications where it may make sense to flow the other direction.

What do you put on PVC threads?

Q. What is the best thread sealant for PVC? Pipe dope generally works best on PVC, and Rectorseal 23631 T Plus 2 Pipe Thread Sealant is a top joint compound for this purpose.

When would you use a union fitting?

It is used for joining two lengths of pipe together that are not locked in place and can be turned. A union is used when you are trying to join two pipes together that are fixed, thus unable to be turned.

Where do unions go in piping?

Thread the male half of the union nut onto the left-side pipe, and tighten it securely. Slip the ring nut portion of the union onto the right-side pipe with the threads facing outward. Thread on the other half of the union nut, and tighten it securely.

How far does PVC go into fitting?

For a good interference fit, the pipe should easily slip into the fitting 1/3 to 2/3 of the way. Too tight of a fit is not acceptable because the pipe may not be able to bottom into fitting during assembly.

Can a PVC union be used underground?

The most popular reason for using PVC pipe in underground plumbing is that it is flexible, lightweight and easy to handle. … Unlike some other pipes, PVC does not rust, scale, pit or corrode. It is good for most warm and cold water applications. Plus, PVC works well for high water pressure.

What is the difference between a elbow and bend?

Bend has a larger radius than elbows. Generally, the most basic difference is the radius of curvature. Elbows generally have a radius of curvature between one to twice the diameter of the pipe. Bends have a radius of curvature more than twice the diameter.

What is the difference between coupler and socket?

Full Coupling is used for connecting small bore pipes. It used to connect pipe to pipe or pipe to swage or nipple. … A socket weld full coupling is used to join small bore plain end pipes where the pipe spec requirement is socket weld. A threaded full coupling is used to join small bore pipes with threaded ends.
