A rabbet is a recess cut into the edge of a workpiece. The piece that extrudes is called the tongue. A rabbet joint is the result of joining a rabbet to another piece of wood, typically to construct shelving and cabinet boxes.

Where are rabbet joints used?

The rabbet joint is used primarily to set backboards onto the back of a case piece or to accommodate the glass on a mirror frame.

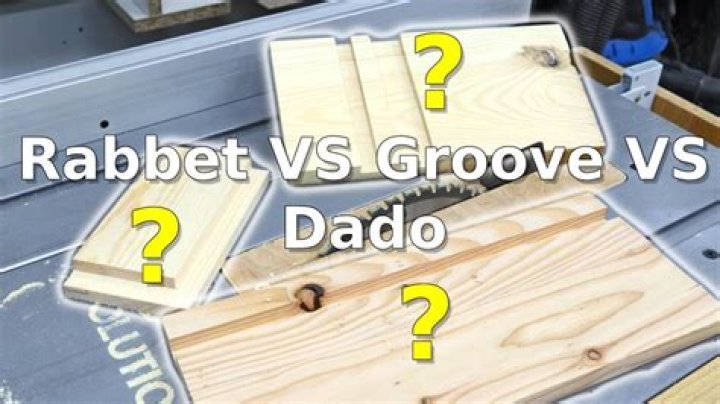

What is the difference between a dado and a rabbet cut?

A rabbet is like a dado that’s missing a side. It’s essentially a notch cut into the edge of a board or piece of plywood.

Why is it called a rabbet cut?

The word rabbet is from Old French rabbat, “a recess into a wall”, and rabattre “to beat down”. According to the Oxford English Dictionary, “In North America the more usual form is rabbet”. The form “rebate” is often pronounced the same way as “rabbet”.

When was the rabbet joint first used?

For woodworking, historically, rabbets come into use in the 15th-century. In the 16th- and 17th-centuries panels are carved or inlaid [see CHAIRS, Figs.

What is a rabbit on a door?

They are always the width or thickness of the door (most exterior doors are 1 3/4″ thick) and around 1/2″ deep or so. Interior doors almost always have a second piece called door stop or simply stop, added onto the jamb instead of the a dado milled into the jamb.

What is a rabbit in woodworking?

A rabbet is a recess cut into the edge of a workpiece. The piece that extrudes is called the tongue. A rabbet joint is the result of joining a rabbet to another piece of wood, typically to construct shelving and cabinet boxes.

Can you cut a rabbet with a router?

Use a piloted rabbet bit in your router and guide it to cut perfect rabbets. … You insert the bit, adjust the depth setting, and rout. It is simple.

Can you rabbet plywood?

Rabbeting is a great way of adding strength to many projects, especially projects where there are shelves which need to be supported. Rather than using hardware to hold the weight of the shelf and whatever is on it, rabbet joints allow the wood itself to carry the weight.

What are some advantages of rabbet joints?

• Simple and easy to make. …
• Easy to glue them. …
• Provide fine finishing. …
• Supports even weight distribution. …
• Useful in small projects. …
• Reduce splitting and cracking. …
• Easy to remove & reinstall. …
• Cost-effective.

Article first time published on

Are rabbet joints strong?

The rabbet joint is much stronger than a simple butt joint, and is easily made either with two table or radial-arm saw cuts (one into the face, the second into the edge or end grain) or with one pass through a saw equipped with a dado head. … Glue and nails or screws are frequently used to fasten rabbet joints.

How do you cut a rabbet without a dado blade?

Move your saw fence over the thickness of your blade’s kerf after each cut. After clearing the groove, remove any ridges at the bottom with a chisel of the same width as the groove or with a strip of adhesive sandpaper applied to the edge of scrap shelf stock. Use this same technique to cut rabbets without a dado set.

What is a rabbit and dado?

A rabbit joint is an ell shaped edge on a board, which is always on the edge. A Dado is a groove run in the middle of a board. Properly, a Dado runs across the grain, and a plow, or more often just called a groove, runs the length of the grain. Showing above is a full dado on the left, and a stopped dado on the right.

What are some disadvantages of rabbet joints?

1. Its strength is completely dependent on a 45 degree end-grain to end-grain glue joint, which is much weaker than gluing side grain to side grain. 2. It is difficult to make eight perfect 45 degree cuts while also making two pairs of sides that are exactly the same length.

What is a dovetail joint used for?

A dovetail joint is a joinery technique used in woodworking, traditionally used to joint wooden furniture. Dovetail joints are known for their inherent strength and resistance to being pulled apart (tensile strength).

What is the strongest wood joint?

What is the strongest woodworking joint? For excellent stability, the mortise and tenon joint is a great choice. It’s a relatively simple joint, yet it holds well. Woodworkers have been using it for generations because of its strength, versatility and simple design.

Is miter joint stronger than butt joint?

Miter joints are commonly used at the visible, outside corners of door, window, and picture frames. They are stronger than butt joints because there is a greater surface area where the two wood pieces meet, but they still require both glue and mechanical fasteners to stay in place.

What is a dado cut?

A dado blade is a circular saw blade that cuts grooves into the wood that are much wider than traditional saw blade cuts. They are used for interlocking applications. Interlocking joints are common in making bookshelves, drawers, door panels and cabinets.

What is a tongue joint?

A tongue and groove joint is a unique woodwork joint that is attached edge to edge with two or more pieces of timber. It is made with one edge consisting of a slot that runs down the entire length of the timber and a tongue which fits into the slot.

What is a double rabbet?

Most frames have a double rabbet profile, which means that there are rabbets on both sides with a stop in the middle. Double rabbet frames may have equal rabbets, where both rabbets typically measure 1-15/16″ wide, or unequal rabbets, where one measures 1-15/16″ (the door rabbet) and the other measures 1-9/16″.

What's a rabbeted door jamb?

RABBETED JAMBS First, exterior doors are framed with a more robust rabbeted jamb. A rabbeted jamb includes a non-adjustable stop cut into solid wood, and Q-Lon® weatherstrip that is inserted into a kerf (or slot) cut into the stop of the jamb.

Can rabbits use cat flaps?

Rabbits can be completely housetrained, and can even learn to use a cat flap or pet access door, so they can go in an out as they please. It is best to provide a ‘barn’-like enclosure for them to nap in. However, just like a cat or dog, a rabbit may prefer to lounge on the couch and sleep the afternoon away.

What is a rabbit jamb?

A rabbeted jamb is milled into a wood door frame or made as part of a metal door frame. A stopped jamb is a wooden door frame with a seperate strip of wood nailed to it to stop the door from swinging through the frame. Rabbetted jambs are generally found on exterior doors and stopped jambs on interior doors.

Why are dado blades illegal in Europe?

Why are dado blades banned in the UK and the EU? Because table saws aren’t allowed to operate without the safety equipment installed.

How deep is a rabbet?

The depth of the rabbet for this joint should be one-half to two-thirds its width. When assembled, the rabbet conceals the end grain of the mating board. The deeper the rabbet, the less end grain that will be exposed in the assembled joint.

How do you cut a rabbet with a chisel?

To cut a rabbet with a chisel, you’ll need to mark the width and depth of the rabbet with a gauge or knife. Once you have those two lines scribed, use a chisel with the bevel down to lever out a small amount of material and create a shoulder that will guide the chisel during deeper cuts.

What is a groove cut?

In joinery, a groove is a slot or trench cut into a member which runs parallel to the grain. A groove is thus differentiated from a dado, which runs across the grain. Grooves are used for a range of purposes in cabinet making and other woodworking fields.

When assembling a rabbet joint What can you do to increase the strength?

The rabbet alone relies on the glue joint for all its strength. This may be OK for a smaller lightweight drawer. But on a bigger drawer or one that gets frequent use, you might want to add some reinforcement. Simply drill a few holes and drive in some dowels to secure the front to the sides.

Can I cut a rabbet with a straight bit?

You can also cut a rabbet with a standard straight bit, using a straightedge (such as a board or level clamped to the workpiece) or an edge guide attachment to guide the router. The straightedge or edge guide sets the width of the rabbet cut. The depth of the cut is set with the router’s cutting depth.

What does a rabbet joint look like?

A rabbet joint looks like two stairs carved into the edge of a workpiece. These “stairs” are then joined together at a 90-degree angle.
