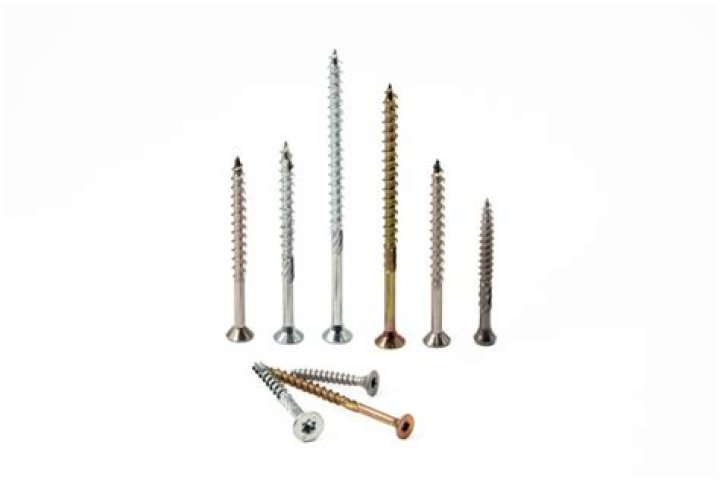

Type 17 Point — This thread cutting screw is ideal for use with wood; it offers a coarse tapping screw thread as well as a special long sharp point that is fluted in order to capture chips. Type BF Point — Type BF points are equipped with Type B threads and a blunt taper point.

What are the 3 types of screws?

3 Common Screw Types at a Glance – Machine, Sheet Metal, and Cap Screws.

What are type screws?

Type A: Found on Sheet Metal (Tapping) Screws. Type A tapping screws have coarse threads and gimlet points. They are used in thin metal, resinous plywood, and various composite boards.

What is a Type A point screw?

Type A point: A thread forming screw for use in thin metal . 015 to . 050 thick. Used with drilled, punched or nested holes in sheet metal, resin impregnated plywood, and combinations of material.

What are screws with a point called?

Torx/TORX Plus Screws: 6-point star indention. Requires TORX driver bits. Design prevents screwdriver from slipping.

How many types of screw are there?

Sometimes if you look around online you’ll see people talking about 35+ types of screws out there, but then you read and they’re describing different types of screw heads and then every tiny sub-type. What is this? In reality, there’s only 9 main screw types.

How do I know what type of screw I have?

Almost all screw head types will either be flat on the top or on the bottom. Most screws are flat on the bottom of the head (pan head; round head; truss head, etc….) All of these are measured from the bottom of the head to the tip. Flat head, countersunk screws are flat on the top of the head.

What are the different types of screw heads?

• Slotted.
• Phillips.
• Phillips tamper-resistant.
• Combination.
• Hex external.
• Hex internal.
• Hex tamper-resistant.
• Square recess.

What is a dog point set screw?

A dog point screw is an industrial fastener that can hold more than one object in place, securely. They are often used to guide parts into holes that have already been drilled and incorporate a flat tip. … The dog point screw can be made from almost any material, to suit the product.

What is a BP screw?

Type BP Point. A thread forming screw with spaced threads and a cone point for use where holes are slightly misaligned. Used in heavier metal .

Article first time published on

What are the 2 types of screws?

• Wood Screws. Wood screws are used for basic wood construction and woodwork projects to attach wood to wood. …
• Deck Screws. Deck screws are similar to wood screws with a few extra specificities. …
• Drywall Screws. …
• Masonry Screws. …
• Sheet Metal Screws. …
• Lag Bolts. …
• Hex Bolts.

What is Type B screw?

Type B Screws are a thread forming screw for use in heavier metal . … The type B screws have a larger root diameter with finer thread pitch for light and heavy sheet metal non – ferrous castings, plastics, impregnated plywood, combinations of materials, and other materials.

What are some examples of screw?

Some examples of the uses of a screw are in a jar lid, a drill, a bolt, a light bulb, faucets, bottle caps and ball point pens. Circular stairways are also a form of a screw. Another use of the screw is in a device known as a screw pump.

How do you match a screw?

1. Lay the screw down on a flat surface. …
2. Place a steel rule down the axis of the screw. …
3. Count the number of thread gaps within 1 inch of the screw.
4. Divide the count of thread gaps into the length. …
5. Place the screw on a flat surface.

How do I identify a wood screw?

The visible difference is in the thread. Woods screws have a wider-spaced, medium-depth screw. Some wood screws – longer ones – often have a threadless shank at the top of them. Sheet metal screws, on the other hand, always have a tighter, sharper thread that cover their entire length.

What is a screw without a point called?

Machine screws have no points and are intended to use in holes that are already tapped or with a nut. They are threaded along the entire shaft are sold in threads per inch.

What are bolt grades?

The grade of a bolt determines the maximum amount of stress (tensile strength) that the bolt can handle. … The SAE marking system uses raised dashes on the bolt head to indicate strength. Metric Bolt Grades—Metric grades are set according to rules set by the ISO (International Standards Organization).

What are screw sizes?

Screw sizes are designated by a number that indicates the diameter and the length of the screw in inches (Table 10-2). The smallest diameter screw is 0, and the largest commonly available is 24. For bench work, the most useful sizes are 4 through 12.

Why is it called a dog point?

The name Dog Point dates from the earliest European settlement of Marlborough and the introduction of sheep to the district. These were days of few fences, of boundary riders and “boundary keeping dogs”.

What is a half dog point?

Notes. Full Dog and Half Dog Points have an extended tip that fits into a hole drilled in a shaft. Use these for permanent location of one part to another. They often replace dowel pins. Length is measured in overall length including the tip.

What is a half dog set screw?

Also known as extended point set screws, dog point and half dog point set screws feature a protruding tip with a flat surface on the end that opposes the hex drive. This protrusion is shorter on the 1/2 dog set screw than on its full dog point relative.

What are the 3 types of screw heads?

• Step 1: Slotted. Slotted screws are the simplest type of screw, consisting of a single slot at the head of the screw. …
• Step 2: Phillips. The Phillips screw, named after Henry F. …
• Step 3: Square Aka “Robertson” …
• Step 4: Torx Aka “Star” …
• 19 Comments.

Why are there different types of screw heads?

Answer: The primary reason for the wide variety of screw head drive types is to ensure the fact that you will never have the proper screwdriver close at hand when you need it.

What are TX screws?

A Torx screw is a type of screw characterized by a six-lobed, star-patterned screw drive. Torx drive is a trademark commonly referred to as star drive or, simply, a six-lobe. It’s often abbreviated to TX or 6lobe. The ISO name is hexalobular.

What is a Type Z screw?

The birth of the stainless steel cross recessed screws type Z Pozidriv (which is later than type H Phillips) initially appreciated for torque much higher and for the output, once you quit, without deforming the imprint or bits like the usual slotted screws (footprint screwdriver) present at the time.

What are blunt screws called?

Types A and AB, which have a standard point, and blunt point Type B, are common sheet metal screws; Types A and AB are usually considered interchangeable. Sizes typically range from #2 to 3/8. If the metal is thicker—and harder—thread cutting screws are used.

What does A and B mean for a screw thread?

Unified threads measure threads per inch. In example A, the screw has 40 threads per inch. Metric threads measure millimeters per thread. … The letter A indicates an external thread and B indicates an internal thread.

What is a Type S drywall screw?

S-type screws are designed for attaching drywall onto metal. Their sharp points make penetrating the surface easier. W-type screws, on the other hand, are longer and thinner. They are designed for installing drywall onto wood.

What are sheet metal screws?

Sheet metal screws are designed for connecting thinner metal objects to one another or connecting metal to wood, plastic, and other materials.

What is an F bolt?

Type F screws have a thread cutting tip. Pan heads are slightly rounded with short vertical sides. Star drive is a Torx® compatible drive, designed to minimize the risk of cam-out (stripping). Zinc plated steel waxed finish. A low carbon steel for general use.

What are 10 examples of screws?

• Screw pump.
• Bulb.
• Jar Lid.
• Drill Machine.
• Bolt.
• Bottle Caps.
• Faucets.
• Car Jack.
