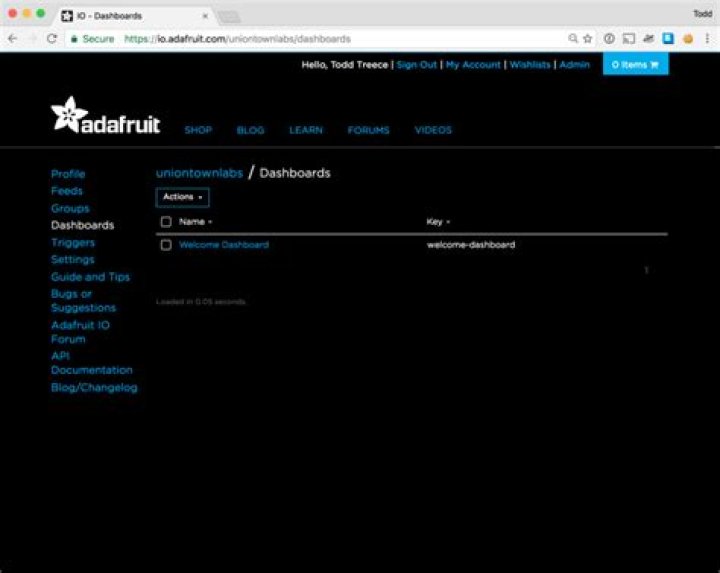

Dashboards allow you to visualize data and control Adafruit IO connected projects from any modern web browser. Widgets such as charts, sliders, and buttons are available to help you quickly get your IoT project up and running without the need for any custom code.

How do I share my adafruit dashboard?

Making your Dashboard Public To make the dashboard public, click the lock icon on the top right of the dashboard page. Doing this will bring up an alert saying that by making a dashboard public, it will make all feeds connected to it public as well. Click OK to publicize the dashboard.

How do I connect ESP32 to adafruit?

Enter your network credentials next to WIFI_SSID and WIFI_PASS . Click the Upload button to upload your sketch to the ESP32-S2. After uploading, press the RESET button on your board to launch the sketch. Open the Arduino Serial monitor and navigate to the Adafruit IO dashboard you created.

How do you delete a block in adafruit?

If you wish to delete a block, you will need to enter dashboard edit mode by clicking on the gear on the upper right hand side of the screen. You can delete a block by clicking on the trash can icon at the top right hand corner of the block while in dashboard edit mode.

How does adafruit IO work?

Adafruit IO Feeds Data on IO is kept in time-series databases called feeds. Each feed contains time-stamped data points. The data points don’t have to be numbers, they can be any type of data. For example, you can store numbers – say for environmental data like temperature or humidity.

What is adafruit MQTT?

MQTT, or message queue telemetry transport, is a protocol for device communication that Adafruit IO supports. Using a MQTT library or client you can publish and subscribe to a feed to send and receive feed data. … To use the MQTT API that Adafruit IO exposes you’ll need a MQTT client library.

What is adafruit server?

Adafruit.io is a cloud service – that just means we run it for you and you don’t have to manage it. You can connect to it over the Internet. It’s meant primarily for storing and then retrieving data but it can do a lot more than just that!

What is the difference between ESP32 and ESP8266?

What’s the difference between ESP32 and ESP8266? … The ESP32 is a dual-core 160MHz to 240MHz CPU, whereas the ESP8266 is a single-core processor that runs at 80MHz. These modules come with GPIOs that support various protocols like SPI, I2C, UART, ADC, DAC, and PWM.

How do I create a block in adafruit?

To add a new block, you can click the + (plus) button on the upper right hand side of the dashboard. You will then be presented with a list of block types to choose from, like the one seen below.

What can I do with an ESP32?

ESP32 can perform as a complete standalone system or as a slave device to a host MCU, reducing communication stack overhead on the main application processor. ESP32 can interface with other systems to provide Wi-Fi and Bluetooth functionality through its SPI / SDIO or I2C / UART interfaces.

Article first time published on

What is ESP32 Wroom?

ESP32-WROOM-32 is a powerful, generic Wi-Fi+BT+BLE MCU module that targets a wide variety of applications, ranging from low-power sensor networks to the most demanding tasks, such as voice encoding, music streaming and MP3 decoding. At the core of this module is the ESP32-D0WDQ6 chip*.

What is adafruit IoT?

Adafruit IO is a platform designed (by us!) to display, respond, and interact with your project’s data. We also keep your data private (data feeds are private by default) and secure (we will never sell or give this data away to another company) for you. It’s the internet of things – for everyone!

How do I get the Adafruit IO key?

The first thing you will need to do is to login to Adafruit IO and visit the Settings page. Click the VIEW AIO KEY button to retrieve your key. A window will pop up with your Adafruit IO. Keep a copy of this in a safe place.

Is adafruit IO free?

Adafruit IO is available and free for anyone with an Adafruit account.

Is adafruit MQTT free?

New Subscription If you do not want to host your own MQTT broker, using Adafruit IO’s MQTT broker is a great way to get started connecting your CircuitPython project to the internet. Best of all – it’s free to use!

Why is adafruit used?

IoT developers prefer Adafruit IO over other IoT cloud providers for the following reasons: Powerful API – Provides us libraries for various programming languages, which also provides the built-in user interface support. Dashboard – Understanding data via charts and graphs enables us to make better decisions.

What is Adafruit Industries LLC ports?

The Adafruit Industries LLC Ports device software is a necessary component of the Arduino USB driver suite, required for Cura to recognize your printer through a USB connection between your 3D printer and your PC.

How do I connect to adafruit io?

1. Host: io.adafruit.com.
2. Port: 1883 or 8883 (for SSL encrypted connection)
3. Username: your Adafruit account username (see the accounts.adafruit.com page here to find yours)
4. Password: your Adafruit IO key (click the AIO Key button on a dashboard to find the key)

How do I add adafruit MQTT library to Arduino?

1. Enter Adafruit IO Arduino into the search box, and click Install on the Adafruit IO Arduino library option to install version 3.2. …
2. Enter Adafruit MQTT into the search box, and click Install on the Adafruit MQTT library option to install version 1.0.

What is ESP8266 NodeMCU?

Overview. NodeMCU is an open source firmware for which open source prototyping board designs are available. … The firmware is based on the eLua project, and built on the Espressif Non-OS SDK for ESP8266. It uses many open source projects, such as lua-cjson and SPIFFS.

What is a MQTT server?

MQTT is a publish-and-subscribe protocol, meaning that instead of communicating with a server, client devices and applications publish and subscribe to topics handled by a broker. MQTT typically uses IP (Internet Protocol) as its transport but can also use other bi-directional transports.

What is Throttle warning in adafruit io?

Adafruit IO’s MQTT server imposes a rate limit to prevent excessive load on the service. If a user performs too many publish actions in a short period of time then some of the requests will be rejected and an error message will be published on your /throttle topic.

Which is better ESP32 or Arduino?

In terms of connectivity, most Arduino boards don’t have Wi-Fi or Bluetooth functionality on their own, and this includes the Arduino Zero. They require the use of an add-on Ethernet shield. On the other hand, the Esp32 has Wi-Fi capabilities onboard. This makes the Esp32 more suitable for IoT projects.

Can I use ESP8266 instead of ESP32?

ESP8266 does not have Bluetooth connectivity, whereas in ESP32 you can use this feature. The GPIO is very less in ESP8266 compared to ESP32.

Which WiFi module is best?

ESP8266. ESP8266 is undoubtedly the most known WiFi module solution in the market. Offering a complete and self-contained WiFi networking solution, it allows users to either host the application or to offload all WiFi networking functions from another application processor.

What is ESP32 S2?

ESP32-S2 is a highly integrated, low-power, 2.4 GHz Wi-Fi Microcontroller supporting Wi-Fi HT40 and having 43 GPIOs. … With an integrated 240 MHz Xtensa® core, ESP32-S2 is sufficient for building the most demanding connected devices without requiring external MCUs.

What is ESP32 Developmentboard?

The ESP32 is the ESP8266 successor (read best ESP8266 development boards). The ESP32 is loaded with lots of new features when compared with its predecessor. It combines Wi-Fi and Bluetooth wireless capabilities and dual-core. You can find the ESP32 as a standalone chip or as a full-featured development board.

What can I do with ESP8266?

• Smart security devices, including surveillance cameras and smart locks.
• Smart energy devices, including HVACs and thermostats.
• Smart industrial devices, including Programmable Logic Controllers (PLCs)
• Smart medical devices, including wearable health monitors.

What programming language does ESP32 use?

Re: What code language is used for ESP32? The compiler is for c/c++ which is officially supported. But there are various interpreters for python, lua, JavaScript, and more available.

Can ESP32 replace Arduino?

The ESP32 dev kit is actually cheaper than Arduino Uno, which means that you get a more powerful board for a lower price. At the level where you use your existing Arduino skills to work with the ESP32, you can treat the ESP32 as a supercharged Arduino Uno: faster, better in many respects.

What is the difference between Arduino and ESP32?

So some of the differences of Arduino and ESP32 are: ESP32 is a single board while Arduino has different types of Boards. ESP32 has Wireless Connectivity such as Wi-Fi and Bluetooth while most of the Arduino boards don’t have Wireless Connectivity except a few and require external Wi-Fi and Bluetooth modules.
