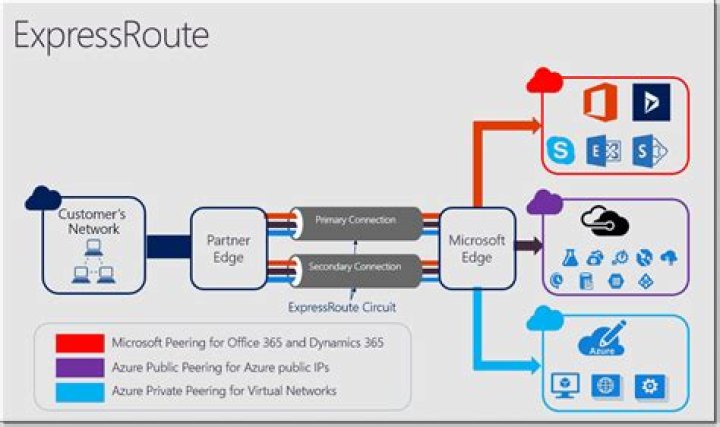

An ExpressRoute circuit represents a logical connection between your on-premises infrastructure and Microsoft cloud services

What is ExpressRoute circuit in Azure?

ExpressRoute is an Azure service that lets you create private connections between Microsoft datacenters and infrastructure that’s on your premises or in a colocation facility.

How do you create an ExpressRoute circuit?

1. On the Azure portal menu, select Create a resource. …
2. After you select ExpressRoute, you’ll see the Create ExpressRoute page.

How does ExpressRoute work?

ExpressRoute lets you extend your on-premises networks into the Microsoft cloud over a private connection with the help of a connectivity provider. With ExpressRoute, you can establish connections to Microsoft cloud services, such as Microsoft Azure and Microsoft 365.

How many ExpressRoute circuits are there?

One Azure virtual network can connect with up to 4 ExpressRoute circuits. These circuits can be in one peering location/cloud on-ramp, or spread out among up to four locations. One ExpressRoute circuit can connect with up to 10 virtual networks.

What is express route in AWS?

VNet Gateway: A VNet gateway is a logical routing function similar to AWS’s VGW. ExpressRoute VNet Gateway is used to send network traffic on a private connection, using the gateway type ‘ExpressRoute’. This is also referred to as an ExpressRoute gateway.

What is the difference between VPN and ExpressRoute?

ExpressRoute provides direct connectivity to Azure cloud services and connecting Microsoft’s global network. … VPN Gateway provides secured connectivity to Azure cloud services over public Internet. All transferred data is encrypted in a private tunnel as it crosses the internet.

How secure is express route?

The answer is that Power Apps and the Microsoft cloud is still very secure, even when we access it over the public Internet. … Azure ExpressRoute is designed for use case scenarios where organisations want to completely eliminate any possibility of an attack, by avoiding the public Internet.

Which peering configuration would you use for your ExpressRoute circuit?

You can configure private peering and Microsoft peering for an ExpressRoute circuit (Azure public peering is deprecated for new circuits). Peerings can be configured in any order you choose.

What advantages does express route have over standard routing?

ExpressRoute connections don’t go over the public Internet. This allows ExpressRoute connections to offer more reliability, faster speeds, consistent latencies, and higher security than typical connections over the Internet.

Article first time published on

How do I connect ExpressRoute to VNet?

1. Prerequisites.
2. Connect a VNet to a circuit – same subscription.
3. Connect a VNet to a circuit – different subscription.
4. Configure ExpressRoute FastPath.
5. Enroll in ExpressRoute FastPath features (preview)
6. Clean up resources.
7. Next steps.

What is VPN in Azure?

A VPN gateway is a specific type of virtual network gateway that is used to send encrypted traffic between an Azure virtual network and an on-premises location over the public Internet. You can also use a VPN gateway to send encrypted traffic between Azure virtual networks over the Microsoft network.

What is peering in Azure?

Virtual network peering enables you to seamlessly connect two or more Virtual Networks in Azure. The virtual networks appear as one for connectivity purposes. … Like traffic between virtual machines in the same network, traffic is routed through Microsoft’s private network only.

What is the difference between ExpressRoute and ExpressRoute direct?

ExpressRoute Direct provides the same enterprise-grade SLA with Active/Active redundant connections into the Microsoft Global Network. ExpressRoute infrastructure is redundant and connectivity into the Microsoft Global Network is redundant and diverse and scales correctly with customer requirements.

Is ExpressRoute encrypted?

ExpressRoute supports a couple of encryption technologies to ensure confidentiality and integrity of the data traversing between your network and Microsoft’s network.

Is VNet mandatory for VMs?

Yes. All network interfaces (NIC) attached to a VM deployed through the Resource Manager deployment model must be connected to a VNet. VMs deployed through the classic deployment model can optionally be connected to a VNet.

Is ExpressRoute more secure than VPN?

With ExpressRoute, your traffic is not encrypted but it is private and you would experience lower latency than with VPN Gateway (think of ExpressRoute like plugging your device straight into the Ethernet port for faster internet speed vs.

What is express route VPN?

With ExpressRoute, you can establish connections to Azure at an ExpressRoute location (Exchange Provider facility) or directly connect to Azure from your existing WAN network (such as a MPLS VPN) provided by a network service provider.

How do I setup a VPN gateway?

1. Prerequisites. An Azure account with an active subscription. …
2. Create a virtual network. Create a virtual network (VNet) using the following values: …
3. Create a VPN gateway. …
4. Create a local network gateway. …
5. Configure your VPN device. …
6. Create a VPN connection. …
7. Verify the VPN connection. …
8. Connect to a virtual machine.

What is dynamic routing GCP?

The dynamic routing mode of a VPC network—either regional or global— determines which subnet routes the Cloud Routers in that network advertise. See Default route advertisements for details. The dynamic routing mode also controls how each Cloud Router applies learned prefixes as custom dynamic routes in a VPC network.

What is GCP interconnect?

Cloud Interconnect extends your on-premises network to Google’s network through a highly available, low latency connection. You can use Dedicated Interconnect to connect directly to Google or use Partner Interconnect to connect to Google through a supported service provider.

What is AWS Direct Connect locations?

About AWS Direct Connect locations An AWS Direct Connect location, often referred to as an on-ramp, is a data center or colocation environment. For high availability, AWS recommends that you use more than one location. To learn more about AWS Direct Connect, visit the AWS FAQ page.

What is ExpressRoute peering?

When you connect to Microsoft through Azure ExpressRoute(Microsoft peering), you have multiple links to Microsoft. One link is your existing Internet connection, and the other is via ExpressRoute. Some traffic to Microsoft might go through the Internet but come back via ExpressRoute, or vice versa. Warning.

What is express route global reach?

ExpressRoute Global Reach enables connectivity from on-premises to on-premises fully routed privately within the Microsoft global backbone. This capability can be a backup to existing network infrastructure, or it can be the primary means to serve enterprise Wide Area Network (WAN) needs.

What is Route filter in Azure?

A route filter is a new resource that lets you select the list of services you plan to consume through Microsoft peering. ExpressRoute routers only send the list of prefixes that belong to the services identified in the route filter.

Why is ExpressRoute not encrypted?

Since ExpressRoute is a dedicated connection between on-premises and Azure that does not use the public Internet the traffic is not encrypted.

Why is express route not recommended for Office 365?

We do not recommend ExpressRoute for Microsoft 365 because it does not provide the best connectivity model for the service in most circumstances. As such, Microsoft authorization is required to use this connectivity model for Microsoft 365.

What is Express Route premium?

Standard ExpressRoute – A standard circuit gives you access to all Azure regions in a geopolitical area. Premium ExpressRoute – circuits can connect to any Azure region in the world for an additional fee.

Are there any limits on the amount of data that can be transferred using ExpressRoute?

ExpressRoute allows for burst speeds of up to two times a client’s bandwidth limit. … There is no limit to the amount of data that can be transferred from a client’s network to an Azure datacenter.

What is used to route the traffic between virtual machines inside your private virtual network?

Azure routes traffic between all subnets within a virtual network, by default. … Deploy virtual machines (VM) into different subnets.

Is it true that you can distinguish services that are generally available and those that are in public preview in the Azure portal?

Suggested Answer: Services in private preview can be viewed in the regular Azure portal. However, you need to be signed up for the feature in private preview before you can view it. Access to private preview features is usually by invitation only. You can use services in public preview in production environments.
