CDP is a device discovery protocol that runs over Layer 2 (the data link layer) on all Cisco-manufactured devices (routers, bridges, access servers, and switches) and allows network management applications to discover Cisco devices that are neighbors of already known devices.

What is Cisco CDP used for?

CDP is a Cisco proprietary protocol that is used for collecting directly connected neighbor device information like hardware, software, device name details and many more… CDPV1:- The initial version which is capable only to collect device information connected to next end.

What does CDP enable do?

For a variety of reasons Cisco Discovery Protocol (CDP) may need to be enabled or disabled on portions of your network. CDP, when fully enabled, essentially allows you to identify Cisco devices on your network and see how they are connected.

What is CDP command?

cdp enable. To enable Cisco Discovery Protocol (CDP) on an interface, use the cdp enable command in interface configuration mode. To disable CDP on an interface, use the no form of this command.

Should CDP be enabled?

Unless your router is connected with wan link or untursted device, you should keep CDP enable. CDP protocol take extra caution of bandwidth. CDP information is only 80 bytes in length. If you still need to disable CDP, use following commands.

Is CDP enabled by default Cisco?

CDP is enabled by default on all supported interfaces to send and to receive CDP information. Device clusters and other Cisco devices (such as Cisco IP Phones) regularly exchange CDP messages.

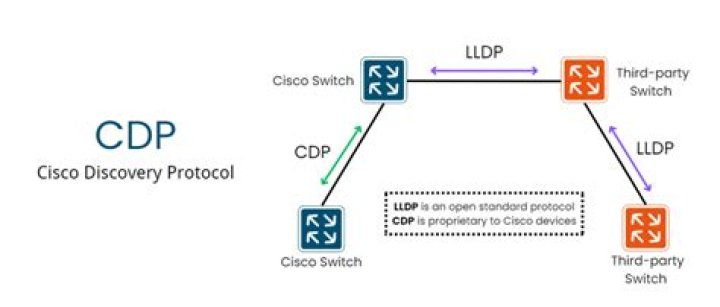

What is LLDP and CDP?

LLDP (Link Layer Discovery Protocol) and CDP (Cisco Discovery Protocol) are link layer protocols for directly-connected LLDP and CDP-capable neighbors to advertise themselves and their capabilities. … In LLDP and CDP, advertisements are encoded as TLV (Type, Length, Value) in the packet.

What is CDP timer?

The CDP hold timer can be configured from 10 seconds to 255 seconds, with the holdtime always larger than the CDP packet timer; otherwise, other devices could remove the information about their neighbor right before getting the second CDP packet, which does not make much sense.

What is Port ID in CDP?

Port ID – the neighbor device’s interface on which the CDP packets were sent, in this case Fa0/1.

What is CDP Interface?

CDP is a protocol that runs over Layer 2 (the data link layer) on all Cisco routers, bridges, access servers, and switches. CDP allows network management applications to discover Cisco devices that are neighbors of already known devices, in particular, neighbors running lower-layer, transparent protocols.

Article first time published on

Why do we have to disable CDP?

By disabling CDP packets from certain interfaces, the attached devices cannot sniff/read these packets. Disabled on: WAN interfaces. Desktop access ports.

Is CDP a Layer 2?

CDP is a Layer 2 proprietary protocol that is default-enabled on all Cisco devices including routers and switches and runs on all LAN and WAN media that support Subnetwork Access Protocol (SNAP).

Is CDP Secure?

CDP’s comprehensive and centralized security features include user authentication, resource access authorization, data encryption, and data governance.

Is Cisco CDP a security risk?

The most obvious risk associated with CDP is the information leak; that is, an attacker learns a lot by listening to CDP. … After a maximum of 60 seconds, the attacker discovered four Cisco devices, including a Catalyst 3524, as well as information about VTP and native VLAN.

What is LLDP Cisco?

LLDP is a neighbor discovery protocol that is used for network devices to advertise information about themselves to other devices on the network. This protocol runs over the data-link layer, which allows two systems running different network layer protocols to learn about each other.

Why CDP and LLDP is used?

Cisco Discovery Protocol (CDP) and Link Layer Discovery Protocol (LLDP) in Data Link Layer are layer 2 (Datalink layer) protocols. They both help to discover how devices are connected to each other in a network. They both run independently of protocols IPv4/IPv6. They also help to verify and create documentation.

Why do we need LLDP?

LLDP enables Ethernet network devices, such as switches and routers, to transmit and/or receive descriptive information, and to store such information learned about other devices. The data sent and received by LLDP is useful for many reasons: ∎ devices can discover neighbors—other devices directly connected to it.

Is CDP proprietary?

Cisco Discovery Protocol (CDP) is a proprietary Data Link Layer protocol developed by Cisco Systems in 1994 by Keith McCloghrie and Dino Farinacci. It is used to share information about other directly connected Cisco equipment, such as the operating system version and IP address.

What is CDP advertise v2?

To enable Cisco Discovery Protocol Version 2 advertising functionality on a device, use the cdp advertise-v2 command in global configuration mode. To disable advertising Cisco Discovery Protocol Version 2 functionality, use the no form of the command.

What information can you get from CDP info?

By using CDP, Network Engineers can gather information about neighboring network devices, determining the type of hardware or equipment, software version, active interfaces the device is using (whether physical or VLAN), how they are configured, and other useful information.

How do I enable LLDP?

1. Enter global configuration mode.
2. Issue lldp holdtime seconds command. …
3. Issue lldp reinit command. …
4. Issue lldp timer seconds command. …
5. Issue lldp tlv-select command. …
6. Save the configuration.

Does CDP use native VLAN?

It uses the main interface since it is in VLAN 1 by default and VLAN 1 is considered the native VLAN on the router. The CDP packets in this default situation are sent untagged.

How do I show ip route?

To display the current state of the routing table, use the show ip route command in user EXEC or privileged EXEC mode. The show ip route command is a powerful tool to use at this point in your search. You can directly examine the routing table to determine if an entry for the host exists.

How do I find CDP information?

1. Log into ESX/ESXi via SSH or the console as root.
2. Run this command to view the CDP information: For ESX 4.x: # vmware-vim-cmd hostsvc/net/query_networkhint. …
3. We can also find the same CDP information by running this command: # esxcfg-info | less.

How do I find CDP neighbors on a Cisco switch?

To display information about neighbors, use the show cdp neighbors privileged EXEC command. (Optional) Type of the interface connected to the neighbors about which you want information.

How do I reset my CDP timer?

Use the following commands to customize and view CDP information. Use the no cdp holdtime command to reset the value to its default. Use the no cdp timer command to reset the value to its default.

What is STP Cisco?

The Spanning Tree Protocol (STP) is responsible for identifying links in the network and shutting down the redundant ones, preventing possible network loops. In order to do so, all switches in the network exchange BPDU messages between them to agree upon the root bridge.

What is LLDP multicast?

Link Layer Discovery Protocol (LLDP), defined in the IEEE 802.1AB standard, is a Layer 2 protocol that allows network devices to advertise their identity and capabilities on a LAN. … LLDP Multicast address is 01-80-C2-00-00-0E. LLDP provides support for a set of attributes used to discover neighbor devices.

What is OSPF in networking?

Open Shortest Path First (OSPF) is a link-state routing protocol that was developed for IP networks and is based on the Shortest Path First (SPF) algorithm. … In an OSPF network, routers or systems within the same area maintain an identical link-state database that describes the topology of the area.

How can CDP be used for troubleshooting?

1. Check the connectivity ( whether the link connected to switch3 is up ) # show interface status.
2. Ping to switch IP address ( Whether switch is powered on or not)
3. Check CDP is enabled or not on the particular interface( #show cdp )

What is a Cisco device?

Products in this category are Cisco’s range of routers, switches, wireless systems, security systems, WAN acceleration hardware, energy and building management systems and media aware network equipment.
