Linear Velocity is nothing more than the velocity of an object in a straight line, whereas Angular Velocity is how much an objects spins, rotates, or turns, as nicely summarized by Chegg. … Ok, so angular velocity is the rate of change of angular displacement of an object per unit of time.

What is relation between angular velocity and linear velocity?

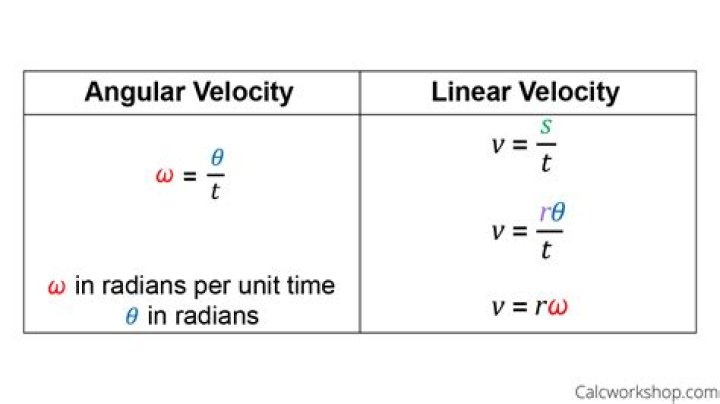

The greater the rotation angle in a given amount of time, the greater the angular velocity. Angular velocity ω is analogous to linear velocity v. We can write the relationship between linear velocity and angular velocity in two different ways: v=rω or ω=v/r.

What are two significant differences between angular and linear motion?

Linear motion is translation from one position to another while angular motion is rotation about an axis or center of rotation. Linear motion can also be viewed as motion of a point and have two types: rectilinear (straight path) and curvilinear (curved path).

What is the difference between angular velocity?

Velocity is the rate of change of displacement over time. Whereas, angular velocity is the rate of change of angle with time. eg. If you are walking in a circle, Angular velocity is the rate at which you are turning, whereas velocity is the rate at which you are walking.

What is the difference between linear speed and linear velocity?

Linear velocity is the speed and direction of an object moving in a straight line. … Rotational velocity is the rotation rate of an object. Or to be more technical, it’s the rate of change of angular position. It’s measured in radians per second.

What is the difference between linear and angular frequency?

Linear frequency is measured in cycles per second a.k.a. “hertz”. It measures how many times a second some periodic phenomenon occurs. Angular frequency measures angular speed of something (at least imagined as) rotating. Its unit is radians per second.

What is the example of linear velocity?

Linear velocity is defined as distance over a period of time. For instance if a person ran 1 mile or approximately 1600 meters in 7 minutes, the they would have covered about 230 meters per minute.

What is value of linear velocity if?

v =ω ×r.

What is linear velocity?

Linear velocity is simply an object’s velocity in a straight line, whereas Angular Velocity is how much an object spins, rotates, or turns. … Velocity denotes the distance that a moving body travels in a specific direction in a given amount of time.

Can angular velocity be infinite?

As such the corresponding angular velocity Uθ is literally zero everywhere and goes to infinity as we approach the singularity point.

Article first time published on

What is the relationship between angular and linear motion?

FormulaLinearAngularAccelerationa=ΔvΔta=ΔωΔtDisplacements=vit+12at2Θ=vit+12αt2Motion with time cancelled outv2f−v2i=2asω2f−ω2i=2αΘ

What is the difference between linear and angular displacement?

Angular displacement is measured in units of radians. Two pi radians equals 360 degrees. The angular displacement is not a length (not measured in meters or feet), so an angular displacement is different than a linear displacement. … Angular velocity is a vector quantity and has both a magnitude and a direction.

What is the main difference between linear motion and rotational motion?

Linear motion involves an object moving from one point to another in a straight line. Rotational motion involves an object rotating about an axis. – Examples include a merry-go-round, the rotating earth, a spinning skater, a top, and a turning wheel.

What is dimension of angular velocity?

In general, angular velocity has dimension of angle per unit time (angle replacing distance from linear velocity with time in common). The SI unit of angular velocity is radians per second, with the radian being a dimensionless quantity, thus the SI units of angular velocity may be listed as s−1.

How do you calculate angular velocity?

Angular velocity is the rate of change of the position angle of an object with respect to time, so w = theta / t, where w = angular velocity, theta = position angle, and t = time.

What is the symbol of linear velocity?

Linear VelocitySymbolThe symbol for the linear velocity is v.Formulav = ΔSΔt = 2πrtQuantityIt is a vector quantity that implies it has both magnitude & direction.Measuring UnitWe measure the linear velocity in m/s.

What is angular velocity in trigonometry?

Definition. angular speed. Angular speed is the ratio of revolutions that occur per unit of time. Angular Velocity. The angular velocity of a rotating object is the change in angle of an object divided by the change in time.

How do you solve linear velocity?

Calculate the car’s linear velocity using the formula v = d / t. The linear velocity can be given in miles per hour if the 20 minutes to hours. There are 60 minutes in an hour, so 20 minutes divided by 60 = 1/3 of an hour.

What is the difference between angular velocity and angular frequency?

Angular velocity is that velocity which act on revolution or rotation of a body with a certain angle with axis with valid radius. … Angular frequency also known as radial or circular frequency, measures angular displacement per unit time. Its units are therefore degrees (or radians) per second.

What is relationship between linear and angular frequency?

From the knowledge of circular motion, we can say that the magnitude of the linear velocity of a particle travelling in a circle relates to the angular velocity of the particle ω by the relation υ/ω= r, where r denotes the radius. At any instant, the relation v/ r = ω applies to every particle that has a rigid body.

What is the difference between linear velocity and tangential velocity?

Tangential velocity is the linear speed of any object moving along a circular path. … In other words, the linear velocity is its tangential velocity at any instant.

What is the unit of linear velocity?

The unit of linear velocity is metres per second (m/s). The speed of revolution of a wheel or a shaft is usually measured in revolutions per minute or revolutions per second but these units do not form part of a coherent system of units.

Is linear velocity constant?

Therefore, the linear velocity, v, is not constant. The acceleration required to keep the object on the circular path is called the centripetal acceleration and is directed towards the center of the circle.

Is angular velocity constant?

Thus, while the object moves in a circle at constant speed, it undergoes constant linear acceleration to keep it moving in a circle. However, it’s angular velocity is constant since it continually sweeps out a constant arc length per unit time. Constant angular velocity in a circle is known as uniform circular motion.

What is the angular velocity of Earth?

When calculating the angular velocity of the Earth as it completes a full rotation on its own axis (a solar day), this equation is represented as: ωavg = 2πrad/1day (86400 seconds), which works out to a moderate angular velocity of 7.2921159 × 10-5 radians/second.

What is the relation between angular acceleration and linear acceleration?

α = a t r . These equations mean that linear acceleration and angular acceleration are directly proportional. The greater the angular acceleration is, the larger the linear (tangential) acceleration is, and vice versa.

What is the angular speed of the Earth in its orbit around the sun?

We know the Earth goes round the Sun, all the way around is 2 radians (360 degrees). We also know that it takes a year (approx 365 days) which is therefore about 3.2×107 secs. Therefore = 2 / 3.2×107 = 2.0×10-7 rad/s. We have calculated the angular velocity.

Is RPM angular velocity?

Revolutions per minute can be converted to angular velocity in degrees per second by multiplying the rpm by 6, since one revolution is 360 degrees and there are 60 seconds per minute. If the rpm is 1 rpm, the angular velocity in degrees per second would be 6 degrees per second, since 6 multiplied by 1 is 6.

Is linear velocity a vector?

Linear velocity is a vector quantity.

What devices use angular rotation?

tachometer, device for indicating the angular (rotary) speed of a rotating shaft.

What is the difference between linear and angular acceleration?

Linear means in a straight line. Angular means (at least) not in a straight line. Mostly, angular acceleration is used to mean circular angular acceleration.
