An EBS snapshot is a point-in-time copy of your Amazon EBS volume, which is lazily copied to Amazon Simple Storage Service (Amazon S3). EBS snapshots are incremental copies of data. This means that only unique blocks of EBS volume data that have changed since the last EBS snapshot are stored in the next EBS snapshot.

What is an EBS volume used for?

You can use EBS volumes as primary storage for data that requires frequent updates, such as the system drive for an instance or storage for a database application. You can also use them for throughput-intensive applications that perform continuous disk scans.

Where are EBS snapshots stored?

Where Are EBS Snapshots Stored? EBS snapshots are stored in Amazon S3. However, you are not going to find your snapshots in any of your S3 buckets. AWS uses the S3 infrastructure to store your EBS snapshots, but you cannot access them while they reside in S3.

Can EBS volume be used during snapshot?

You can take a snapshot of an attached volume that is in use. However, snapshots only capture data that has been written to your Amazon EBS volume at the time the snapshot command is issued. … You can remount and use your volume while the snapshot status is pending .

What tasks can be performed using EBS volume snapshot?

You can perform all snapshot operations, such as restore, delete, and copy across Regions or accounts, just as you would with a single volume snapshot. You can also tag your multi-volume snapshots as you would a single volume snapshot.

Which are EBS volume types?

The three types that are now available include Magnetic, Provisioned IOPS (SSD) and General Purpose (SSD) EBS volumes. All three have their merits and offer similar functionalities, such as snapshot capabilities, though they differ largely in cost and performance.

Who uses EBS?

CompanyUnited Parcel Service IncCompany Size>10000

Does EBS snapshot impact performance?

When you create a snapshot of a Throughput Optimized HDD ( st1 ) or Cold HDD ( sc1 ) volume, performance may drop as far as the volume’s baseline value while the snapshot is in progress. … For more information about calculating throughput for HDD volumes, see Amazon EBS volume types.

How long does EBS snapshot take?

It can take several hours, but it generally doesn’t matter how long it takes. If you need a completely consistent snapshot you shut the server down, trigger the snapshot, then start the server immediately.

How do snapshots work?

When you take a snapshot, the metadata recording where each block of data is stored is copied to the snapshot. … Then every block of data is as it was at the time the snapshot was taken. And since your files are made up of blocks of data, every file is now as it was when the snapshot was taken.

Article first time published on

Why do we need EBS snapshot?

EBS Snapshots are a point-in-time copy of your data, and can be used to enable disaster recovery, migrate data across regions and accounts, and improve backup compliance. … EBS Snapshots are stored incrementally, which means you are billed only for the changed blocks stored.

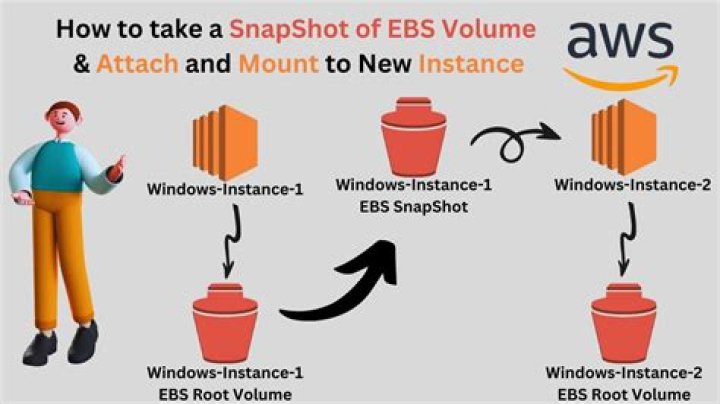

How does EBS snapshot work?

An EBS snapshot is a point-in-time copy of your Amazon EBS volume, which is lazily copied to Amazon Simple Storage Service (Amazon S3). EBS snapshots are incremental copies of data. This means that only unique blocks of EBS volume data that have changed since the last EBS snapshot are stored in the next EBS snapshot.

How are EBS snapshots created?

Snapshots are incremental backups, which means that only the blocks on the device that have changed after your most recent snapshot are saved. … When you create an EBS volume based on a snapshot, the new volume begins as an exact replica of the original volume that was used to create the snapshot.

What is general purpose SSD?

General Purpose SSD ( gp2 ) volumes offer cost-effective storage that is ideal for a broad range of workloads. These volumes deliver single-digit millisecond latencies and the ability to burst to 3,000 IOPS for extended periods of time.

How do I view my EBS snapshots?

Open the Amazon EC2 console at . In the navigation pane, choose Snapshots. To view only your snapshots that you own, in the top-left corner of the screen, choose Owned by me. You can also filter the list of snapshots using tags and other snapshot attributes.

How are EBS snapshots stored?

These snapshots are stored in Amazon S3 storage device. The first EBS snapshot performs a full copy from EBS to S3. All further snapshots are incremental snapshots. Only blocks that have changed since your last snapshot are copied from EBS to S3.

How is the data stored in EBS?

EBS is basically a network-based storage service that stores data in a persistent manner. You can detach an EBS volume and attach it to any machine, but you will need an EC2 instance to access the data. You can configure any file system and mount any of the available EC2 instance type on it.

What is the difference between EBS and SSD?

EBS are more flexible, since you can attach and detach it from instances, but is a little bit slower, as more suitable for general purpose. Now, in Step 4, you should choose if you want a SSD or a magnetic-like storage. You can roughly compare it as if you were choosing between a SATA drive or a SSD.

What is EBS in Amazon Web Services?

Amazon Elastic Block Store (Amazon EBS) is an easy-to-use, scalable, high-performance block-storage service designed for Amazon Elastic Compute Cloud (Amazon EC2).

What is an IOP storage?

Introduction to IOPS IOPS stands for input/output operations per second. It’s a measurement of performance for hard drives (HDDs or SSDs) and storage area networks. IOPS represents how quickly a given storage device or medium can read and write commands in every second.

What is gp2 in AWS?

gp2 is the default EBS volume type for Amazon EC2 instances. These volumes are backed by solid-state drives (SSDs) and are suitable for a broad range of transactional workloads, including dev/test environments, low-latency interactive applications, and boot volumes.

Which EBS provide best performance?

Amazon EBS-Optimized instances The dedicated throughput minimizes contention between Amazon EBS I/O and other traffic from your EC2 instance, providing the best performance for your EBS volumes. EBS-optimized instances are designed for use with all Amazon EBS volume types.

Why is snapshot slow?

The most common cause for slow creation of AMIs or snapshots is the amount of dirty data that must be copied to Amazon S3. This dirty data is measured by the number of blocks. The following factors might result in a large number of dirty blocks: … Time since last snapshot.

Can we still continue working on EBS while creating a snapshot of it?

While it is completing, an in-progress snapshot is not affected by ongoing reads and writes to the volume. You can take a snapshot of an attached volume that is in use. However, snapshots only capture data that has been written to your Amazon EBS volume at the time the snapshot command is issued.

Do AWS snapshots slow down VM performance?

1 Answer. While the snapshot is in progress it is possible you will notice performance degradation. As far as I know it is typically recommended by Amazon for customers stop doing read/writes (especially database read/writes) to a volume while it is being snapshotted to ensure data consistence.

How can I increase my EBS volume?

1. Initialize your restored EBS volumes. …
2. Confirm the workload demand, average queue length, and IOPS rate. …
3. Make sure the size of your I/O operations aren’t limiting provisioned IOPS. …
4. Avoid unnecessary charges by reviewing your use of EBS snapshots. …
5. Use Amazon CloudWatch to analyze and view EBS performance metrics.

How many EBS volumes is an instance?

Although you can attach up to 20 volumes on a single instance, we recommend attaching no more than 10 volumes, where each volume can range in size (1GB – 1TB). With EBS, you no longer have to use large or x-large instances if you require more than the 160GB that are available on a small instance.

Which type of EBS volume is best suitable for MongoDB solution?

There are two types of EBS volumes you should consider for MongoDB deployments: General Purpose (SSD) volumes offer single-digit millisecond latencies, deliver a consistent baseline performance of 3 IOPS/GB to a maximum of 10,000 IOPS, and provide up to 160 MB/s of throughput per volume.

Is snapshot a backup?

Snapshot by itself is not a backup. But it can be used as an essential part of the backup process. Snapshot is used as a part of the data movement process to a backup file. It is removed when the backup job is completed.

What exactly is a snapshot?

While the term “snapshot” is often used in photography, it is also a computing term that refers to a copy made of a disk drive at a specific moment in time. Snapshots are useful for backing up data at different intervals, which allows information to be recovered from different periods of time.

What is the benefit of snapshot?

A key benefit of snapshots is that they allow a faster roll-back to a previous point-in-time than from backups. Another plus is that snapshots allow much more frequent protection than backup.
