What is house wiring system

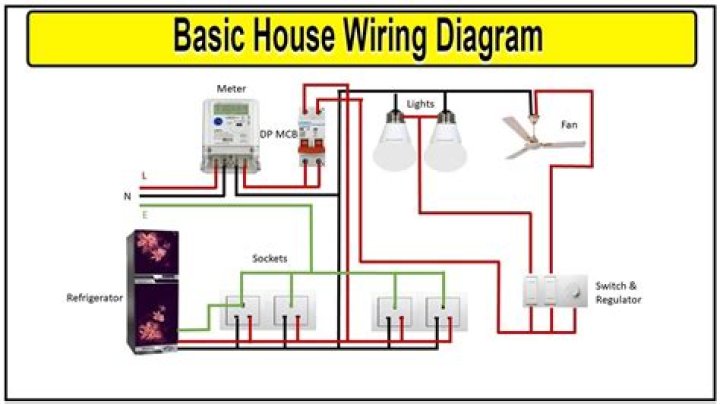

Rachel Fowler House wiring consists of an electrical wiring system that distributes energy to be used in equipment and appliances around the house. It also involves the proper installation and operation of the electrical outlets, switches, breakers, meter base and different electrical circuits.
What wiring is used in houses?
The most common type of home electrical wiring is the NM cable, also known as the Romex cable, after the most popular electrical wiring brand name. The NM cables contain three or more individual conductors, wrapped together in a sheathing, which is a flexible plastic jacket.
What are the 3 types of wiring connection?
And there are three basic house wiring types that each outlet has points for, namely live wire, a neutral wire, and the ground wire.
What are the two systems of house wiring?
The two main systems of wiring are: (i) the tree system, and (ii) the ring system. … The reason is that this system of wiring is cheaper because a low rating wire can be used for connection of appliances.What are the different types of wiring system?
- Cleat Wiring. This wiring comprises of PVC insulated wires or ordinary VIR that are braided and compounded. …
- Casing and Capping Wiring. …
- Batten Wiring. …
- Lead Sheathed Wiring. …
- Conduit Wiring.
Which place the three system of wiring is most suitable?
Ring system of house wiring:Ring system of wiring is more used in place of tree system. The wires start from the main fuse box, run around all main rooms of the house & then come back to fuse box forming ring.
Which wire is better for house wiring?
If what you need the wire for is the wiring of your home, copper wires will be most appropriate for you. Copper is more conductive than aluminum but is also heavier and more expensive.
Which wire is best for AC?
As the a/c draws 8 amperes 4 mm wire is advisable . 1790 watts at 230 volts is about 8 amps. I would use a power cable rated for at least 10 amps or more. You would need a wire of about 8.3 sq mm, 1.63 mm diameter, or 14 awg to run this load.What are the 5 types of wires?
- Communications Cable. Coaxial Cable. …
- Direct-Buried Cable (DBC)
- Non-Metallic Sheathed Cable (NM, NM-B)
- Metallic Sheathed Cable (Armored Cable, AC or BX, MC) Armored Cable (AC) …
- Multi-Conductor or Multicore Cable:
- Paired Cable.
- Portable or Extension Cord.
- Ribbon Cable.
- Havells.
- Wipro North West.
- Anchor.
- Schneider Electric.
- Legrand.
- Larsen and Tourbo.
- Orpat Electricals.
- Polycab Wires Pvt. Ltd.
Which wire is good copper or Aluminium?
Copper is the preferred wiring for your home over aluminum because of its ease of use and ability to effectively conduct electricity. It is more stable, durable, and performs better than aluminum wires. Copper is known to have better Conductivity than Aluminium.
Which type of wiring have very long life?
Advantages of conduit wiring: It is the safest wiring system, and its appearance is very beautiful. No risk of mechanical wear and tear and fire in the case of metallic pipes. It is a reliable and long-lasting wiring system.
What is CTS wiring?
In the CTS wiring system, CTS stands for Cable tyre sheathed. It is the type of internal wiring. Electrical wiring is the electrical power distribution through the wires in a perfect manner for economic use of wiring conductors inside a room or building with better load control.
What is the difference between wire and cable?
The basic key difference between wires and cables is that a wire is a single conductor whereas a cable is a group of conductors. … And in case of cables, they run parallelly and are twisted or bonded together to form a single case.
What is meant by 720 wire?
7/20 wire is electrically equivalent of 12 gauge solid wire. It is one of several stranded wire constructions available.
How do I calculate what size wire I need?
How do you determine cable wire size? Divide the voltage running through the cable by your target current. If, for instance, 120 volts will act on the cable, and you want 30 amps to run through it: 120 / 30 = 4. This is your target resistance, measured in ohms.
What are the 4 types of switches?
- SPST (Single Pole Single throw)
- SPDT (single pole double throw)
- DPST (double pole, single throw)
- DPDT (double pole double throw)
What are modular switches?
Modular switches are modern switches, which can be found in any home, office, or commercial premises. They have a number of advantages over conventional non-modular electrical switches. The main features that distinguish them from traditional ones are aesthetics and ease of use.
What is two way switch?
The 2 way switch acts as 2 switches that can control a single appliance. This is a 2 switch for a single appliance. … Suppose you are on the top of stairs and want to turn on the light above the stairs then using the 2 way switch you can turn on/off the same light with two different areas or locations.
Which wire is the best?
- Polycab Wires.
- Havells India Ltd.
- Finolex Cables Ltd.
- Sterlite Tech cables.
- Plaza Cables.
- KEI Industries Ltd.
- RR Kabel.
- V-Guard Industries Ltd.
Is aluminum wiring safe in a house?
The wiring itself isn’t a problem; aluminum conducts electricity safely. … The U.S. Consumer Product Safety Commission (CPSC) reports that homes with aluminum wiring are 55 times more likely to have “fire hazard conditions” than homes wired with copper.
Can aluminum wire be used in homes?
Aluminum wiring is permitted with the appropriate installation methods and materials. Electrical wiring in homes has traditionally been copper since the introduction of electricity in homes in the late 19th century. Aluminum wiring was introduced to homes in North America in the mid-1960s.
Which is the cheapest wiring system?
The cheapest system of wiring is cleat wiring. Used in hospitals, drawing rooms, high precision workshops etc.
Which wiring is costly?
2. Metal conduit wiring is very costly.
What Colour is the life wire?
WireColourLiveBrownNeutralBlueEarthYellow and Green
What is CTS or TRS or PVC wiring?
CTS or TRS or PVC sheath wiring (Batten wiring): In this form of wiring, single core, double core, or three core TRS cables with a circular oval shape are used. Single-core cables are most commonly used. TRS cables are chemical, water, and steam resistant, but lubricating oil has a minor effect.
What is CTS and TRS wire?
Helens cable Co., under the name C.T.S (cab tyre sheath) is usually lapped on to the already insulated conductor. In tough rubber sheathed cable, the conductor is insulated with vulcanized rubber insulation. T.R.S cables are manufactured in this way that the cables are with stand the mechanical damage.
What is PVC in cable?
PVC (Polyvinyl chloride) is widely used in electrical cable construction for insulation, bedding and sheathing. … Cable with a PVC insulation or sheathing is flame retardant, which is an important consideration for electric cables in most applications.
What is uninsulated wire?
Uninsulated wire is used for electrical grounding and craft use. This single-strand wire is annealed for improved ductility and meets the QQ-W-343 standards for uninsulated wire. This copper wire is suitable for uninsulated wiring applications as well as in crafts such as jewelry and weaving. …
What is an example of a wire?
An example of wire is a thin round thread used to make a netting. An example of wire is a telephone cable. An example of a wire is a microphone hidden in a shirt of an undercover police officer. The definition of wire is made of metal in long, thin rods or threads.
How many types of wire are there?
Types of Electrical Wire There are mainly 5 types of wire: . Triplex Wires : Triplex wires are usually used in single-phase service drop conductors, between the power pole and weather heads. They are composed of two insulated aluminum wires wrapped with a third bare wire which is used as a common neutral.
