Loopback (also written loop-back) is the routing of electronic signals or digital data streams back to their source without intentional processing or modification. It is primarily a means of testing the communications infrastructure. … It may be a communication channel with only one communication endpoint.

What is a loopback used for?

The loopback device is a special, virtual network interface that your computer uses to communicate with itself. It is used mainly for diagnostics and troubleshooting, and to connect to servers running on the local machine.

What does loopback interface mean?

A loopback interface is a virtual interface that is always up and reachable as long as at least one of the IP interfaces on the switch is operational. As a result, a loopback interface is useful for debugging tasks since its IP address can always be pinged if any other switch interface is up.

What is IPv4 loopback traffic?

IPv4 has special reserved addresses called as loopback addresses. An entire Class A network itself is reserved as loopback network. The loopback network in IPv4 is 127.0.0.0 with a subnet mask of 255.0.

Is loopback necessary?

Why do we need a loopback interface in Cisco? – Quora. A loopback interface is an always-up interface that serves as a stable terminus point for a router. This can be very useful for BGP peering, tunnel peering, management access, and device identification. An ordinary interface may go down due to technical failures.

What does IP 0.0 0.0 mean?

In the Internet Protocol Version 4, the address 0.0. 0.0 is a non-routable meta-address used to designate an invalid, unknown or non-applicable target. This address is assigned specific meanings in a number of contexts, such as on clients or on servers.

What is loopback test in Android?

A loopback test is a test in which a signal in sent from a communications device and returned (looped back) to it as a way to determine whether the device is working right or as a way to pin down a failing node in a network.

How do I advertise a loopback in RIP?

1. Configure IP addresses in the interfaces connecting R1 and R2.
2. Create one loopback interface in each router and configure IP address.
3. Enable RIP and advertise the network between the routers and the network of loopback.

How do I delete a loopback address?

1. Display System in the Windows Control Panel.
2. In the Hardware tab, click Device Manager.
3. For Microsoft Windows 7, in the Device Manager window, expand Network adapters. …
4. For Microsoft Windows 7, right-click Microsoft Loopback Adapter and select Uninstall. …
5. Click OK.
6. Restart the computer.

How do I set up loopback?

1. Select Network > Loopback. The Loopback page appears.
2. Select the Enable check box.
3. (Optional) In the Interface Description text box type a description for this interface.
4. In the IP Address text box, type the IPv4 address and subnet mask.
5. Click Save.

Article first time published on

How do you test a loopback plug?

To perform an external loopback test on an Ethernet interface, connect a loopback plug to the Ethernet interface. The device sends test packets out of the interface, which are expected to loop over the plug and back to the interface.

What is packet loopback test?

A loopback test is the process of sending digital data streams from a source back to the same point without any intentional modifications. It’s generally performed to determine whether a device works properly and whether there are failing nodes in a network.

What is audio loopback?

Loopback enables you to combine the audio from multiple sources, including microphones and applications, then provide that combined audio to voice chat applications to be heard by all participants. … app, or Spotify) with your own voice, then send that audio to others via a voice chat app (like Zoom, FaceTime, or Skype).

What are the loopback addresses?

A loopback address is a special IP address, 127.0. 0.1, reserved by InterNIC for use in testing network cards. This IP address corresponds to the software loopback interface of the network card, which does not have hardware associated with it, and does not require a physical connection to a network.

Can a host IP address end in 0?

For example, IP addresses of networks with subnet masks of at least 24 bits ending in . 0 or . 255 can never be assigned to hosts. Such “last” addresses of a subnet are considered “broadcast” addresses and all hosts on the corresponding subnet will respond to it.

What is host and localhost?

In computer networking, localhost is a hostname that refers to the current device used to access it. It is used to access the network services that are running on the host via the loopback network interface. Using the loopback interface bypasses any local network interface hardware.

How do I disable loopback?

Method 2: Disable the authentication loopback check Click Start, click Run, type regedit, and then click OK. Right-click Lsa, point to New, and then click DWORD Value. Type DisableLoopbackCheck, and then press ENTER. Right-click DisableLoopbackCheck, and then click Modify.

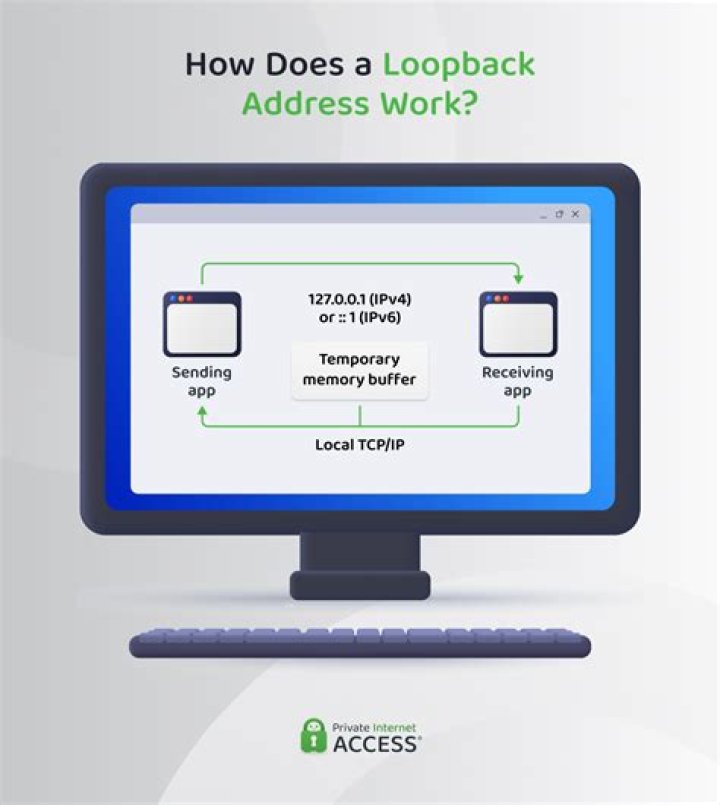

How do you use a loopback address?

The IP address 127.0. 0.1 is called a loopback address. Packets sent to this address never reach the network but are looped through the network interface card only. This can be used for diagnostic purposes to verify that the internal path through the TCP/IP protocols is working.

How do you do a loopback in Cisco?

1. Create the loopback interface using the interface loopback number global configuration command.
2. Add a description. Although optional, it is a necessary component for documenting a network.
3. Configure the IP address.

What is loopback interface in OSPF?

Loopback interfaces are logical interfaces, which are virtual, software-only interfaces; they are not real router interfaces. Using loopback interfaces with your OSPF configuration ensures that an interface is always active for OSPF processes. They can be used for diagnostic purposes as well as OSPF configuration.

What is the use of loopback interface in BGP?

Normally the loopback interface is used to make sure that the IP address of the neighbor stays up and is independent of a hardware that might be flaky. In the case of EBGP, most of the time the peer routers are directly connected and loopback does not apply.

How do I change a loopback address?

Navigate to the Configuration > Network > Controller > System Settings page and locate the Loopback Interface section. Modify the IP Address as required. Click Apply. If you are use the loopback IP address to access the WebUI, changing the loopback IP address will result in loss of connectivity.

Is loopback adapter a diagnostic tool?

Hardware Tools It tests the integrity of circuits and the quality of electricity in computer components. A digital multimeter displays the information on an LCD or LED. A loopback adapter, as shown in Figure 2, also called a loopback plug, tests the basic functionality of computer ports.

What is loopback testing Why do we need this?

Not getting a link? A loopback test eliminates superfluous connections and confirms that a transceiver or port is functioning properly by connecting the transmitter and receiver of the same module. It requires a self-contained loopback module or a single strand of fiber.

Is loopback any good?

Bottom line. Loopback 2 offers significant improvements over the initial release across the board, even though version 1 was quite useful and good. The interface change to allow a more visual drag-and-drop approach helps considerably, as does exposing Pass-Thru as yet another element in sources.

How do I remove loopback from my Mac?

Open Loopback, then run the Uninstall ACE option in the Loopback menu. Once you’ve completed the steps in the uninstaller process, all Loopback devices on your system will be removed and the software will be fully uninstalled. You can then delete Loopback from your Mac.

Why are there so many loopback addresses?

These loopback IP addresses are managed entirely by and within the operating system and enable testing of communications in client-server architecture systems on a single machine. … This might be helpful if you wanted to have a number of different web servers running locally on port 80 for some reason.

What happens when you ping a loopback address?

In a TCP/IP network, the loopback IP address is 127.0. 0.1, and pinging this address will always return a reply unless the firewall prevents it. The loopback address allows a network administrator to treat the local machine as if it were a remote machine.

How do you find a loopback address?

1. At the command line, type NETSTAT .
2. Select option 1 (Work with TCP/IP interface status) for IPv4 interfaces, or select option 4 (Work with IPv6 interface status) for IPv6 interfaces.
3. Scroll down to find the loopback interface (127.0.
