Metallic conduit is very simply described as conduit made from metal material. However, there are varying types of metallic conduits that include: rigid metal conduit (RMC), galvanized rigid conduit (GRC), intermediate metal conduit (IMC), and electrical metal tubing (EMT).

What is the difference of metallic conduit to non metallic conduit?

While metallic conduits serve to shield sensitive circuits from electromagnetic interference from enclosed power cables, non-metallic conduits resist corrosion and are lightweight, reducing labor and installation costs.

What are the conduit types?

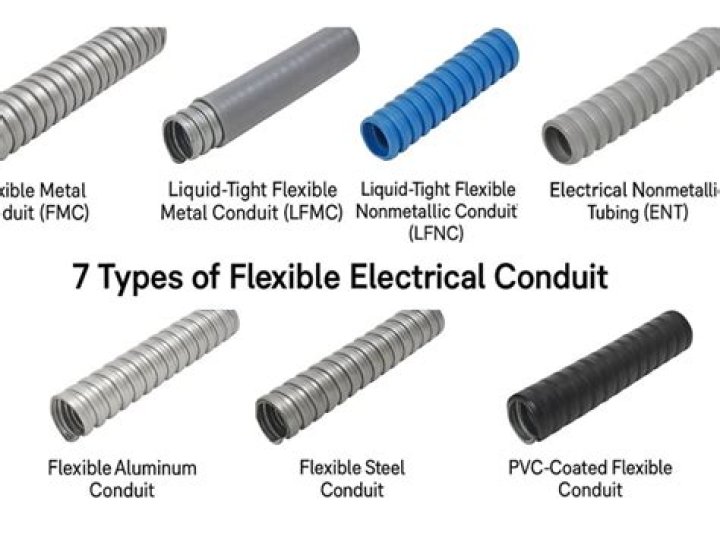

• Electrical Metallic Tubing (EMT) …
• Rigid Metal Conduit (RMC) …
• Intermediate Metal Conduit (IMC) …
• Flexible Metal Conduit (FMC) …
• Liquid-tight Flexible Metal (LFMC) …
• Electrical Non-Metallic Tubing- ENT. …
• Rigid PVC Conduit.

What is non metallic conduits?

non metallic conduit is a type of non metallic sheathed cable used in damp or corrosive locations as wiring for an electrical system.

What are the 4 types of conduit?

• Electrical Conduit.
• Rigid Metal Conduit.
• Galvanized Rigid Conduit.
• Intermediate Metal Conduit.
• PVC Conduit.
• Liquid-Tight Non-Metallic Conduit.
• Electrical Metallic Tubing.
• How to Bend Conduit.

What type of conduit should be used outdoors?

Out of the many conduit forms available, PVC conduit is considered best for outdoor applications. Among all conduit types, PVC is lightweight and versatile. Available in a variety of thicknesses or grades, PVC is well suited for direct burial or above ground work.

What are 3 types of conduit?

• Rigid Metal Conduit (RMC)
• Electrical Metallic Tubing (EMT)
• Intermediate Metal Conduit (IMC)
• Flexible Metal Conduit (FMC)

What are the different types of non metallic conduits?

• ELECTRICAL CONDUIT, NON-METALLIC.
• ENT ELECTRICAL NONMETALLIC TUBING – rigid plastic conduit.
• ENT & LFNC NON-METALLIC ELECTRICAL CONDUIT- flexible plastic & liquid-tight flexible plastic conduit.
• FLEXIBLE LFNC PRE-WIRED WHIPS – flexible, liquid-tight, with wire.

What is ENT conduit used for?

1.1 Electrical Nonmetallic Tubing (ENT), is designed to replace EMT, flexible metal conduit or other raceway or cable systems, for installation in accordance with Article 331 of the National Electrical Code, other applicable sections of the Code, and local codes.

Is it OK to run Romex in conduit?

Running Romex in a Conduit When using any non metallic wire outdoor, including Romex, it is a good idea to run it through a conduit. Yes, they can be used outdoors, it is better to be safe than sorry. We recommend using a conduit when running the wire underground.

Article first time published on

What is aluminum conduit called?

Rigid aluminum conduit is also known as rigid metal conduit, or RMC. It has threads as well as thick walls, with sections connected by screws. Thanks to its thickness, RMC is not only very strong and durable, it also does a great job of protecting cables from impacts and other types of damage.

What is Type B conduit?

Type B PVC Conduit. Also known as FNMC-B, or. Its uses include air conditioning hookups, machine. LFNC-B, this is the most popularly used conduit. tools, cable carriers, outdoor wiring, automation.

What is Greenfield conduit?

Flexible Metal Conduit, commonly referred to Greenfield, is available in either Reduced Wall Steel (RWS) or more often Reduced Wall Aluminum (RWA). The main difference between Flexible Metal Conduit and Liquid Tight is the absence of the PVC sheathing and the integrated copper ground bonding strip.

What is rigid PVC conduit?

Schedule 40 & 80 rigid PVC conduit systems are sunlight resistant and are used exposed, encased in concrete, concealed in walls and in direct burial applications including systems for: Utilities. Cable, data and communication lines. Institutional, commercial, industrial buildings.

What is flexible metallic tubing?

Flexible Metallic Tubing (FMT). A metal raceway that is circular in cross section, flexible, and liquidtight without a nonmetallic jacket.

Can I use metal conduit outside?

Its threaded ends require threaded fittings. This rigid metal conduit is approved for all interior applications but can also be used outside. Liquid Tight Conduit is available in both metallic and nonmetallic configurations; the metallic configurations generally have a plastic coating to prevent water from penetrating.

What is difference between Thhn and THWN?

THHN stands for Thermoplastic High Heat-resistant Nylon-coated. THWN wire is the same, but the “W” stands for water-resistant. The main difference between these two standards is their maximum temperature in wet locations. … However, most of these wires, so you can use THHN and THWN interchangeably.

Should I use metal or plastic conduit?

Instead of PVC, you should instead consider using aluminum electrical metallic tubing (EMT) for your conduit needs. It’s just as lightweight as PVC, and can also be used in moist, damp environments – as long as you make sure the fasteners and fittings are resistant to corrosion.

What is the standard length of rigid metallic conduit?

Electroline® Rigid Conduit (RSC) is produced in normal trade sizes from 1/2″ to 6″ in standard lengths of 10 feet (3.05 m).

Can I use white PVC pipe for electrical conduit?

The most noticeable difference between regular PVC and electrical PVC is the color of the pipes. PVC pipe that is used for plumbing is usually white while electrical conduit PVC is usually gray. … Therefore, Schedule 80 pipes should not be used as an electrical conduit.

Can you bury ENT conduit?

Article 362 of the 2002 National Electrical Code, Uses not Permitted, prohibits ENT from being direct buried. … See Section 362.12(9) of the 2002 National Electrical Code. Carlon make Liquid tight Flexible Nonmetallic Conduit (Carflex), which is listed by UL for use outdoors (Article 356).

Can you use ent in concrete?

Since ENT is manufactured in 1/2 inch through 2 inch, it can be installed quickly in most types of concrete floors, either slab on grade or in multi-story building.

What is Smurf conduit?

A Smurf tube is a conduit for all those TV wires and cables. The tube is blue so many builders in Olympia WA nickname it a Smurf tube. … The Smurf tube’s ending point is to the side of the fireplace where all your TV components would be like the cable box, DVD, etc. This system keeps cables and wires neat and secure.

What is the name of the conduit accessory?

A range of PVC and steel electrical conduits and accessories including angle boxes, couplers, compression glands, adaptors, inspection bends & tees, lock rings, spacer saddles, through boxes, slip tight bends & flexible conduit.

How many types of electrical conduit are there?

There are seven different types of conduit used commonly in residential and light commercial wiring.

Where can ENT not be used?

ENT shall not be used in the following: In any hazardous (classified) location, except as permitted by other articles in this Code. For the support of luminaires and other equipment. Where subject to ambient temperatures in excess of 50°C (122°F) unless listed otherwise.

Can I put Romex in PVC conduit?

Yes, NM cable can be in conduit. In fact. NEC calls for it to be in conduit, when protection from physical damage is required.

Can Romex be exposed in garage?

No, you cannot expose Romex wires or non-metallic sheath wires in the detached garage or anywhere. Because it’s not safe to expose it on the outside. Besides, it goes against the National Electrical Code or NEC.

How often should Romex be stapled?

General Cable Support Runs of NM cable must be supported at least every 54 inches. 1 They also must be secured within 12 inches of an electrical box that includes a cable clamp or within eight inches of a box or enclosure without a cable clamp.

What is seal tight conduit?

Top Definition. Originally invented by Anaconda in 1947, Sealtite® is the Trade name for flexible, liquid-tight conduit. It can be found in applications as mundane as an air conditioning whip all the way to nuclear power plants.

Is flexible conduit code?

You may use flexible metal conduit in any length as long as you follow the Code rules for support (Sec. 350-18) and grounding (Sec. 250-18). Section 250-18 limits flexible metal conduit to 6 ft only for grounding.
