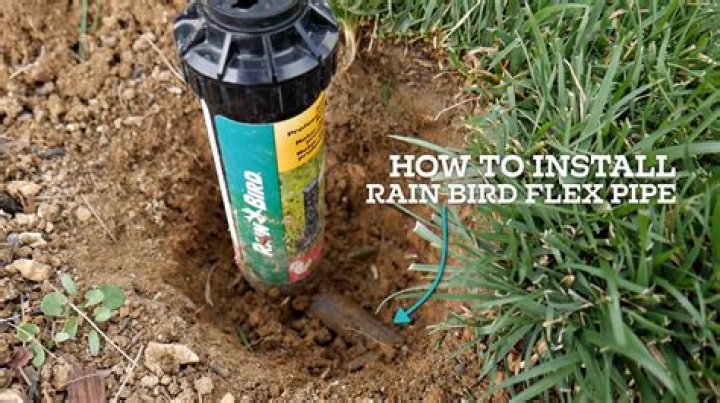

Swing pipe is flexible tubing made from high quality polyethylene that is used to connect pop-up spray heads and rotors to PVC and poly pipe lateral lines in an irrigation system. … Even in wet and muddy conditions, the surface texture of our swing pipe is easy to grip.

What is a sprinkler swing pipe?

Swing pipe is flexible tubing made from high quality polyethylene that is used to connect pop-up spray heads and rotors to PVC and poly pipe lateral lines in an irrigation system. … Even in wet and muddy conditions, the surface texture of our swing pipe is easy to grip.

How long can you run swing pipe?

Re: Swing pipe max length No more than 24″ of swing pipe or pressure losses will be very high.

Is swing pipe same as funny pipe?

The key to an easy DIY sprinkler installation project is using swing pipe, also commonly referred to as “Funny pipe”.

Does funny pipe reduce water flow?

Funny pipe is very flow restrictive. I also like to bush down to 3/4″ in your situation, though for a homeowner, your fine not doing it and saving a few bucks on some fittings. At this point, bucks is not the issue.

What is funny pipe used for?

Funny Pipe lets you place sprinklers at the correct depth without cutting and gluing PVC risers. This allows for an eco-friendly method of connecting to sprinkler heads since no cement or clamps are required.

What type of pipe is used for sprinkler systems?

The two piping types most commonly used for irrigation systems are white PVC (polyvinyl chloride) and “black roll pipe ” (polyethylene).

How do you get rid of a barbed elbow?

Soak the tubing in scalding hot water. If the tubing is in an area where the use of water isn’t possible, heat the hose with a hair dryer. Twist the tubing back and forth until it pulls off of the barbed fitting. The heat will help expand and soften the tubing until it can be pulled off the barbs.

What is funny pipe made of?

Flexible, Thick-walled Polyethylene Pipe Super Funny Pipe is a high-strength poly tubing that solves tough sprinkler installation and replacement problems. It acts as an extension cord between the water line and the sprinkler.

Do sprinkler heads need Teflon tape?

Standard Teflon tape or plastic compatible Teflon sealant around the riser or swing joint threads is all that is required to prevent leaks around the inlet threads of Hunter sprinklers. The Teflon also provides a long-lasting lubricant should it become necessary to remove the sprinkler for servicing.

Article first time published on

Do you use Teflon tape on irrigation fittings?

Always use Teflon tape on pipe threaded plastic irrigation products and PVC fittings and nipples. Teflon tape alone does an excellent job of sealing plastic pipe thread connections, and it will hold up for many years if it is applied properly.

Does decreasing pipe size increase pressure?

Because if the diameter of a pipe decreased, then the pressure in the pipeline will increase. As per Bernoulli’s theorem, pressure can be reduced when the area of conveyance is reduced. In the narrower pipe, the velocity can be high, and pressure can be higher.

Does pipe diameter affect head pressure?

Pipe diameter is also an extremely important factor when calculating head pressure. As a general rule of thumb, using a smaller diameter pipe than the return pump output will drastically increase head pressure. For minimum head pressure, using the largest diameter pipe possible is best.

How do I increase water pressure in my pipes?

Look on the main supply pipe near your water meter for a conical valve that has a bolt sticking out of the cone. To raise pressure, turn the bolt clockwise after loosening its locknut. Keep an eye on the gauge to make sure the pressure is within bounds, then retighten the locknut.

What is sprinkler pipe made of?

The most commonly used steel pipe for sprinkler systems is black steel pipe. Copper tubing is another piping material listed for sprinklers in NFPA 13. Also, plastic pipe (namely, CPVC and PEX tubing) is permitted for certain types of sprinkler systems.

What size pipe is used for sprinklers?

The sprinkler pipe size from the water supply source to a sprinkler shall be not less than 3/4 of an inch (20 mm) in diameter. Threaded adapter fittings at the point where sprinklers are attached to the piping shall be not less than 1/2 of an inch (15 mm) in diameter.

Is it better to use PVC for sprinkler system?

Pressure Ratings The standard 1″ PVC pipe used for lawn sprinkler systems is rated to withstand 200 PSI. Comparable 1″ Poly pipe is rated to withstand 100 PSI. In fact, to achieve the same pressure rating as PVC, the walls of poly would have to be 2 times thicker.

Is funny pipe flexible?

About Funny Pipe. … One of the most flexible as well as durable options to consider is funny pipe. This pipe is a type of rubber used mostly in sprinklers and outdoor applications.

What is the inside diameter of funny pipe?

20′ Super Funny Pipe Flexible, thick-walled (. 10) polyethylene pipe Inside diameter: . 495 Outside diameter: .

How do I stop my sprinkler lines from digging?

The map should indicate where the underground sprinkler lines are laid between those heads. Mark along their path with flags so that when you’re digging, you can steer clear of the line. Avoid the flag line by six inches on each side, just in case.

How deep are sprinkler pipes?

Basic Depth Requirements In most areas, burying the pipes 8 to 12 inches below the surface is adequate. This measurement is from the top of the pipe to the surface of the soil, which means your trenches must be slightly deeper to accommodate the pipes.

Can I use PEX for lawn sprinkler system?

Setting Up a Homemade In-Ground Sprinkler With PEX Is Easy PEX is approved for underground usage. It is also subject to failing when frozen, but it seems to be less likely to fail compared to PVC pipe.

When should you not use Teflon tape?

An important thing to remember is that PTFE tape should not be used when connecting PVC fittings or valves with a female (FPT) thread. If the tape is used on female connections, a wedging action can occur which will cause major stress on the joint during assembly. PTFE tape does not guarantee a leak free connection.

How tight should sprinkler heads be?

Also, you want to be assured it works. Even brand-new sprinklers can be flawed and you don’t want to have to dig back up what you just buried. So, go ahead and run your sprinkler for a bit and get it set in the direction you need it facing before tightening it down to a snug, but not overly tight fit.

What is pink Teflon tape used for?

PTFE Thread Seal Tape (also known as ‘PTFE Tape’, ‘Teflon Tape’, or ‘Plumber’s Tape’) is a polytetrafluoroethylene (PTFE) film tape commonly used in plumbing for sealing pipe threads. It lubricates, allowing for a deeper seating of the threads, thereby helping to prevent the threads from seizing when being unscrewed.

What is the difference between white and pink Teflon tape?

Teflon tape is less messy High-density pink tape is used on water lines; yellow tape is designed for gas-line use. White tape (often low density) is used on water lines. Teflon tape, which is available in 1⁄2-in. to 1-in. widths, comes in high- and low-density versions.

How many times do you wrap Teflon tape?

You always want to wrap seal tape around threaded pipe fitting in a clockwise direction. In most cases for a new joint you should apply only two or three wraps of tape. On older fitting where the threads may be damaged you may consider adding a few more wraps, but keep the number of warps to a minimum.

Do pipe bends reduce water pressure?

Yes, bends or elbows in pipes cause a reduction in the available pressure head at the discharge end of the pipe. Even running through a length of straight pipe reduces the available pressure head, which can be quite noticeable when using a long, small-diameter pipe.

How do I choose a pipe size?

The equation for pipe diameter is the square root of 4 times the flow rate divided by pi times velocity. For example, given a flow rate of 1,000 inches per second and a velocity of 40 cubic inches per second, the diameter would be the square root of 1000 times 4 divided by 3.14 times 40 or 5.64 inches.

What causes pressure drop in a pipe?

A pressure drop occurs when frictional forces, caused by the resistance to flow, act on a fluid as it flows through the tube. … High flow velocities and/or high fluid viscosities result in a larger pressure drop across a section of pipe or a valve or elbow. Low velocity will result in lower or no pressure drop.
