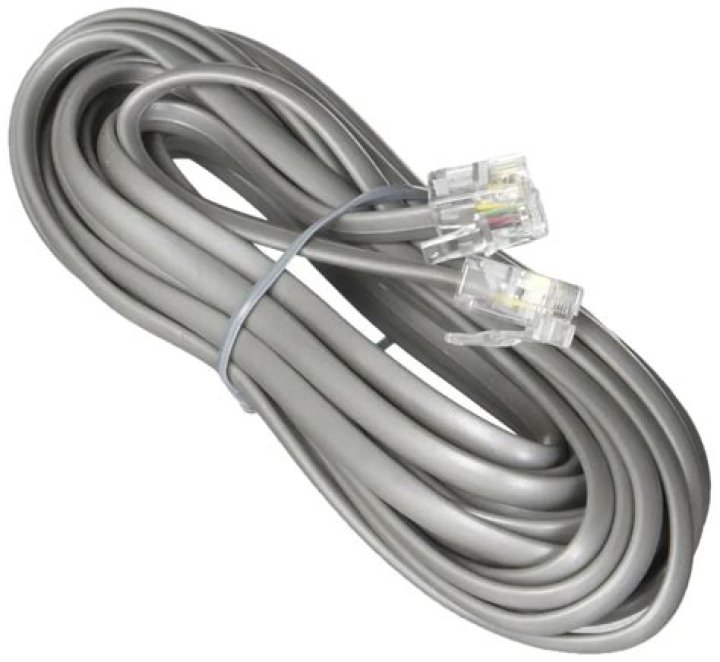

The wiring scheme for a single line phone was identified as “RJ11”, and the name stuck to describe the connector used on a phone cord. Today, RJ-11 is widely used in the connectivity industry to denote a 6-position, 4-conductor modular connector or jack.

What type of cable is telephone cable?

Modern telephones use either RJ11 (6P4C) or RJ12 (6P6C). Having more wires inside the telephone cable allows more signal pairs to run through a single cable, such as having a telephone and fax machine both hooked up through one line.

What is cable RJ-11?

(Registered Jack-11) A telephone interface that uses a cable of twisted wire pairs and a modular jack with two, four or six contacts. RJ-11 is the common connector for plugging a telephone into the wall and the handset into the telephone. See modular connector.

What is the telephone wire called?

A telephone jack and a telephone plug are electrical connectors for connecting a telephone set or other telecommunications apparatus to the telephone wiring inside a building, establishing a connection to a telephone network.

Which is better CAT 5 or Cat6?

What are the Advantages of a Cat6 Ethernet Cable? Compared to Cat5/5e cables, Cat6 cables have stricter performance specifications and significant higher data transfer speeds at greater distances. They are more tightly wound than Cat5 cables, and the cable conductors and cable sheath are thicker as well.

What is the difference between RJ11 and RJ12?

RJ12 is the most common, being used on flat line cords that connect the base of a telephone to the wall. RJ11 is an older version of RJ12, and they are the same size. The difference is that RJ11 uses four internal wires (called conductors) while RJ12 uses six.

Can I use Cat5e cable for telephone?

Cat 5 cable and RJ-45 jacks have eight wires. … Therefore, you can run both ethernet and telephone over the same wire, and still have two wires left over. In fact, you could run two Ethernet jacks from a single cat-5 cable, or four telephone lines (though I don’t know why you would run multiple phone lines.)

Can I use RJ11 for Ethernet?

No, RJ11 is a phone connector. You could crimp an RJ11 connector on an Ethernet cable, but it would only use 2 pairs. You’d have to cut off the others.

What is the difference between RJ11 and RJ45?

RJ45 is mostly used with Ethernet cables while RJ11 is connecting to telephone units. RJ45 has 8 wires inside while Rj11 has 4 wires. RJ45 is bigger in size than RJ11. You cannot plug-in the RJ45 cable connector into an RJ11 jack/interface/port/slot, however, you can do the opposite.

What is RJ cable?

RJ abbreviated for the Registered Jack. It used as a medium in telecommunications or network interface. It enables network devices to connect voice and data equipment. These RJ cables are categorised on the basis of structure and functions, such as size, PIN number, and their reliability on different devices. …

Article first time published on

What is a RJ45 connector?

The eight-pin RJ45 connector is a standardised interface which often connects a computer to a local area network (LAN). An 8 Position/8 Contact connector, called an 8P8C, is a modular connector for telecommunication cables. … It is also informally referred to as an RJ45.

What are RJ45 and RJ11 connectors?

RJ45 connectors commonly connect to Cat5 and Cat6 cables, while RJ11 simply connects to a telephone cable. RJ45 can connect to various devices in a copper cable network such as switches, cables, computers, routers, and so on. Switches with RJ11 connectors comprise mainly two sockets for a 2-line telephone system.

Can you mix Cat5 and Cat 6?

Yes, cat6 and cat5 both use the same RJ-45 connectors, though the wire order is slightly different.

Can you use Cat5 cable with Cat 6?

A Cat6 cable is similar to a Cat5 ethernet cable — it consists of four pairs of twisted copper wire. … It’s also compatible with both Cat5 and Cat5E cables.

Can you use a CAT 6 cable on a Cat5 network?

CAT6 is a standardised twisted pair cable for Ethernet that is backward compatible with CAT5/5e and CAT3 cable standards. Like CAT5e, CAT6 cables support Gigabit Ethernet segments up to 100 m, but they also allow for use in 10-Gigabit networks over a limited distance.

What are the 4 wires in a phone line?

In a typical home, the telephone cables connecting your phones within you home contain four wires… red, green, yellow and black. They are used in pairs for each phone line you have. Repairmen in fact refer to the wires in terms of “pairs”, so technically a standard four wire telephone line has two pairs.

What is the difference between Cat5 and telephone cable?

Network cables are usually thicker and rounder than a telephone cable. Network cables, including Cat5, Cat5e, Cat6, Cat6a, etc., are twisted pair cables for carrying signals in structured cabling for computer networks such as Ethernet. … While phone cables are narrower and flat, and are made up of four wires.

Can I plug Ethernet into phone line?

With an Ethernet cable, and the right adapter, you can connect your mobile device to an Ethernet port on your router or modem for a fast and dependable connection. It may seem odd to connect a mobile device via Ethernet, since Wi-Fi is built-in and easily available, but there are times when it makes sense.

Can you plug Rj12 into RJ11?

RJ11 is a 6P4C wiring standard and only has four wires connected and the remaining two slots are no longer used. Because of this, you would need to pay close attention to the cables that you are utilizing as cable used four RJ11 might not be suitable for RJ12, even if they look identical.

Is Cat 3 the same as RJ11?

A Cat3 cable is typically thinner and features a smaller RJ11 or RJ24 connector. Cables usually have their specifications printed along the plastic covering at regular intervals to aid easy identification.

Is RJ11 a DSL cable?

DSL cables transmit voice, data and video together. These cables can be equipped with RJ11 and RJ45 connectors which are commonly used for standard telephones.

Can you plug a RJ11 into RJ45?

Warning – Don’t plug an RJ11 plug into an RJ45 socket RJ11 plugs can permanently damage your RJ45 socket. … It’s easy to insert an RJ11 plug into an RJ45 socket and it will probably work for a voice connection if the other end of the link has the right wiring or the correct adapter.

Does DSL use RJ11?

A DSL router consists of a box with an RJ11 jack to connect to a standard subscriber telephone line. It has several RJ45 jacks for Ethernet cables to connect it to computers or printers, creating a local network.

What is the DSL cable?

DSL stands for digital subscriber line. It is a type of connection that transmits data over a telephone network through a telephone cable. DSL is the most popular connection in the world. … Unlike cable, DSL bandwidth is not shared. But on the downside, DSL internet speeds are affected by how far you are from your ISP.

Can I use 6 wire for Ethernet?

So as long as both ends of the cable have the same color wires, it should work for a 100 Mbps connection.

Can an Ethernet cable be used as a DSL cable?

Yes. This is the function of a DSL modem. This can provide a single Ethernet output, which can be connected to a single device such as a PC or a router with an Ethernet WAN port. Ethernet and DSL both are used for connectivity or data transfer.

What is BNC?

(Bayonet Nut Coupling) A commonly used plug and socket for audio, video and networking applications that provides a tight connection. Using a mount somewhat similar to the way a bayonet (knife) is mounted onto the end of a rifle, BNCs are used to connect a variety of different coaxial cable types.

What is the difference between RJ11 and RJ25?

RJ11 is a cable adapter for internet, ADSL and modem cable applications, etc., whereas RJ25 jackets for telephone systems are used in networking. RJ11 is a connector with four slots, whereas RJ25’s a six-slot plug. RJ11 has 6 positions of 4 wires, whereas RJ25 has 6 cable positions.

What is the difference between RJ45 and Ethernet cable?

RJ45 connectors are commonly seen with Ethernet network cables. Ethernet cables with RJ45 connectors are also called RJ45 cables. These RJ45 cables feature a small plastic plug on each end, and the plugs are inserted into RJ45 jacks of Ethernet devices.

What is CAT 5 cable?

Category 5 cable, commonly referred to as Cat 5, is a twisted pair cable for computer networks. The cable standard provides performance of up to 100 MHz and is suitable for most varieties of Ethernet over twisted pair. Cat 5 is also used to carry other signals such as telephony and video.

What are the different types of LAN cables?

There are three cable types commonly used for Ethernet cabling: coaxial, twisted pair, and fiber-optic cabling. In today’s LANs, the twisted pair cabling is the most popular type of cabling, but the fiber-optic cabling usage is increasing, especially in high performance networks.
