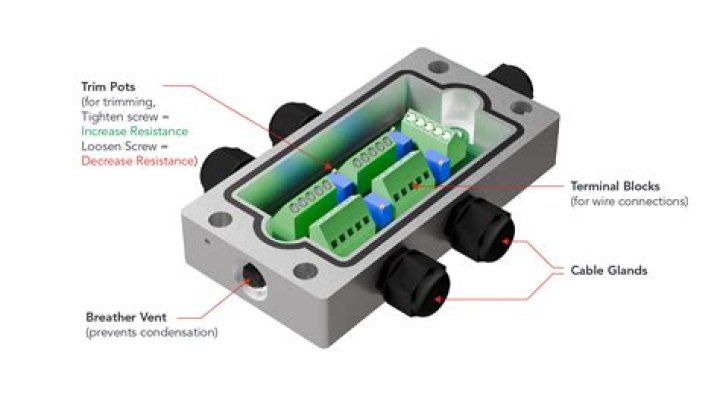

What are Junction Boxes and What Are They Used For? A junction box is an enclosure that protects a connection (the junction) of two or more wires carrying electrical current. This level of protection is needed to prevent fires and to maintain solid, reliable connections that stay tight over many years.

What's the function of junction box?

An electrical junction box (also known as a “jbox”) is an enclosure housing electrical connections. Junction boxes protect the electrical connections from the weather, as well as prevent people from accidental electric shocks.

What does junction box mean?

junction box in American English noun. Electricity. an enclosure that houses electric wires or cables that are joined together and protects the connections.

Where is the junction box in a house?

It’s a standard electrical box usually found mounted to the framing of a home or building that contains the connection of two or more circuit cables or wires. Junction boxes are usually metal or plastic and can range from 2 ½” to 3 ½” deep.

What is panel box?

A metal box in which electrical switches and fuses for branch circuits are located.

Where are junction boxes allowed?

Junction box covers must remain accessible; they cannot be covered with drywall or other surface material. A junction box is most often used where an electrical circuit branches off in two or more directions from a location where an outlet or fixture is not practical.

Does a junction box need to be mounted?

Often known as a junction box, this metal or plastic box includes a cover to protect the wiring within and protect you from the wiring. This rule is demonstrated nicely by wall switches, receptacles, and standard light fixtures, all of which require a junction box to mount the device and house the wiring connections.

How many junction boxes can you have in a house?

There are no limits on the number of junction boxes (without devices) in any particular circuit. Each piece of ‘utilization equipment’ reduces the maximum allowable load by it nameplate rating, 180va for each receptacle, and each light fixture at its maximum labeled lamp wattage.

Can junction box be in attic?

The primary requirement for junction boxes is that they remain permanently accessible. … However, the accessibility requirements do not prohibit you from installing a junction box in the attic. A common solution to accessibility problem is to have the box open to the underlying room’s ceiling.

How are device boxes mounted?

Electrical boxes typically are mounted to the sides of studs for stability. Whether nailed to the studs or screwed in with adjustable brackets, boxes on studs tend to stay in place for a long time. But sometimes, it’s not always possible to find a suitable mounting point against the studs.

Article first time published on

What is the difference between a junction box and a terminal box?

Terminal box is used for specific connections, no space for future expansion or does not require expansion of connections in future. On the other hand, junction box is with minimum specific size, plenty of woking space. Future expansion can also be planned for new connections.

What is enclosure box?

An electrical enclosure is a cabinet or box that protects electrical or electronic equipment and prevents electrical shock. Enclosures are usually made from rigid plastics or such metals as steel, stainless steel, or aluminum.

What is the function of circuit breaker?

A circuit breaker is an electrical switch designed to protect an electrical circuit from damage caused by overcurrent/overload or short circuit. Its basic function is to interrupt current flow after protective relays detect a fault.

How do home circuit breakers work?

Inside each circuit breaker is a spring hooked over a small piece of solder (a melt-able fusible alloy). Each breaker is connected to an electrical wire that runs through your house. The electricity that flows through your house runs through the solder. … When the alloy cools down, it can be reset.

Can you use a junction box to extend wiring?

Yes. You can definitely use a junction box to extend your wiring. To do this, start by turning off the power. Then inspect the place and cut the required openings.

Are junction boxes bad?

Junction boxes are designed to protect your wiring connections from damage. Making electrical connections outside of a junction box will damage the wiring and increase the risk of heat and sparks.

Can you install a vanity light without a junction box?

If you’re wondering how you install a light fixture without an electrical box, the short answer is that you don’t. … You can’t install a light fixture without a junction box, but the fact that there’s no box at the spot where you want to install the light doesn’t mean you can’t install the light.

Can a junction box be in a crawlspace?

Yes, you can put your junction box in a crawl space. At the same time, the biggest concern you need to think about is the accessibility of the junction box. You need to make sure that people can easily get to the junction box if something is wrong. In addition, you need to make sure your junction box is well protected.

When would you use an electrical junction box?

You’ll need a junction box if you can’t make the connections inside an existing electrical box. You should install the box with the opening facing out from the wall so all the wires inside are accessible. Like any electrical box, it should be installed so that the edge of the opening is flush with the wall.

Can a junction box be covered by insulation?

“Junction boxes can be covered by insulation in such a manner that it can be removed without damaging it to access the box. Foamed-in-place insulation isn’t removable and therefore not permissible.”

What can I use for an attic junction box?

1. Noncontact voltage tester.
2. 4-inch-square junction box with blank cover.
3. 3/8-inch drill-driver with Phillips screwdriver bit.
4. Hammer.
5. Nonmetallic sheathed cable staples.
6. Cable connectors.
7. Wire cutters.
8. Cable ripper or utility knife.

How many wires can you pigtail together?

More Than Two Cables in the Box The only appropriate way to wire a receptacle in a box with three cables is to use pigtails to connect the receptacles. ​Never connect more than one wire under a single screw terminal.

Can you put two circuits in box?

The answer is yes you can have 2 separate circuits in the same box (they can have a splice also but not needed in your case).

What are switch boxes?

Definition of switch box : a metal box containing the working parts of an electrical switch.

What are some applications of device boxes?

Device boxes are used to house wiring devices such as switches or receptacles. Device boxes are used to house wiring devices such as switches or receptacles. Device boxes are used to house wiring devices such as switches or receptacles. Device boxes are used to house wiring devices such as switches or receptacles.

How do you install a wall junction box?

1. Step 1: Trace Box. For your safety, turn off power before starting this project. …
2. Step 2: Cut Hole. Cut the hole with a drywall saw. …
3. Step 3: Thread Cables. Run cable through the hole. …
4. Step 4: Insert Box. Push the box into the hole. …
5. Step 5: Secure Box to Wall.

What are the rules of a box junction?

These have criss-cross yellow lines painted on the road. You MUST NOT enter the box until your exit road or lane is clear. However, you may enter the box and wait when you want to turn right, and are only stopped from doing so by oncoming traffic, or by other vehicles waiting to turn right.

What is a junction box for sockets?

Junction Box Amp Rating A ring main (more about ring mains can be found in our project here) and also a radial circuit (more about radial circuits in our project here) will need a 30 amp junction box, whereas a lighting circuit (although you can buy 5amp junction boxes) will need a 20amp junction box.

What is the purpose enclosure in electrical?

An electrical enclosure is a housing for electrical or electronic equipment. Its purpose is to protect that equipment from the environment (especially in the case of external electrical enclosures) and also to protect people from the equipment (e.g. to prevent electric shock or the propagation of an explosion).

What are 4 common types of motor enclosures?

• The most common types of enclosures are:
• Open Drip Proof (ODP)
• Weather Protected (WP1 / WP2)
• Totally Enclosed Fan Cooled (TEFC)
• Totally Enclosed Non-Ventilated (TENV)
• Totally Enclosed Air Over (TEAO)
• Totally Enclosed Forced Ventilated (TEFV)
• XP (Explosion Proof)

What are NEMA standards?

The National Electrical Manufacturers Association (NEMA) defines standards used in North America for various grades of electrical enclosures typically used in industrial applications. Each is rated to protect against personal access to hazardous parts, and additional type-dependent designated environmental conditions.
