Casing is typically made from carbon steel, but as the primary structural component of the well the grade of steel used to make the casing, and the specifications of the finished material, are very important.

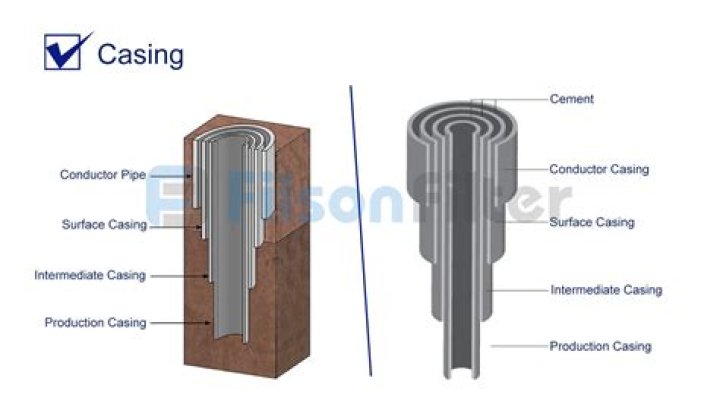

What is surface casing in well?

A large-diameter, relatively low-pressure pipe string set in shallow yet competent formations to protect fresh-water aquifers onshore.

How much does it cost to fix a well casing?

Installing or replacing well casing costs $6 per foot for PVC casing to $130 per foot for stainless steel pipe casing. An average well needs 25′ of casing below the surface that costs $250 to $2,500 depending on soil conditions.

Do all wells have a casing?

A well will either have a PVC or a steel well casing. Older wells will use metal casings, the majority of well drillers now using PVC because it won’t rust over time. … Pitless adapters connect to piping below ground that has been threaded through a hole drilled in the side if the well below frost line.

How does water get into a well casing?

Water travels through this casing via a well pump. The well system gets capped off above ground. The water then enters your home from a pipe connected between the casing and a pressure tank (generally located in your home’s basement). From there, it gets distributed to faucets throughout your home.

What can I use for a well casing?

The most common materials for well casing are carbon steel, plastic (most commonly, but not exclusively, PVC), and stainless steel.

How is a well casing installed?

Also known as setting pipe, casing a well involves running steel pipe down the inside of a recently drilled well. The small space between the casing and the untreated sides of the well is filled with cement to permanently set the casing in place.

What is the difference between casing and a liner?

Casing is very necessary for smooth drilling operations in deep and ERD wells so that hole collapsing may be got rid of. Liner is a string of casing which does not extend to the surface but is hung from inside the previous casing string and is cemented in place.

How deep is the casing in a well?

Well Casing Depth Modern drilled wells reach greater depths, with a foot or two of casing above the well, a minimum of 18 feet of casing below the surface, if the well goes through bedrock, at least 5 feet of casing within bedrock.

How much does it cost to put a liner in a well?

Drilling the well hole, installing the casing (a tubular lining that prevents the well hole from collapsing) and adding a well cap (a tight-fitting, vermin-proof top seal) typically costs $15-$30 per foot, or $1,500-$3,000 for a 100′ deep well, and $6,000-$12,000 for a 400′ well.

Article first time published on

What's at the bottom of a well?

At the bottom of wells, based on formation, a screening device, filter pack, slotted casing, or open bore hole is left to allow the flow of water into the well.

Can a well casing be replaced?

Contact a well contractor to get your well inspected and maintained once a year. During a maintenance session, your contractor will check the casing for leaks and other issues. They will either repair or replace a damaged casing to prevent problems.

Can a cracked well casing be repaired?

Repairs are done by placing a new liner inside the casing. … If the crack is above the ground, the well service may recommend that you extend the casing while repairing it and change the grade of the surrounding soil so it slopes away from the casing so it is easier to see and avoid in the future.

How deep should a well be for drinking water?

For drinking water wells it’s best to be at least 100 feet deep so that surface contaminants cannot enter the well. The average well depth for private homes is between 100 to 800 feet [2]. You may need a deeper or shallower well if your area has different geology than another region of the country.

How long do residential wells last?

Most wells have a lifespan of 20-30 years. Since sediment and mineral scale build up overtime, water output may wane over the years.

Can you drink well water?

Well water can be safe for drinking and all other household needs, as long as you make sure to test your water supply regularly and select treatment solutions in line with your results. Learn more about the well water treatment options that are available for your specific needs.

What size is well casing?

A well casing is a steel pipe that is used to seal and support the sides of a drilled water well. The diameter of a residential water well casing is 4″, 5″, 6″ or less-often, 8″ across.

Does well casing rust?

The inside of your well casing is likely a bit rusted if it’s made of steel (rather than plastic) and the well is more than a few years old. … However, if you have a problem with rust and suspect the casing, you should have a well inspection just to make sure.

What is a well liner?

Typically, a well liner is a repair part for a damaged well casing. So, if you have a well casing that leaks, your well experts may simply install a liner in the damaged portion of the casing. If your liner is giving out, your well experts may simply replace it.

How much water is in a well casing?

The typical 6-inch diameter well will hold approximately 1.5 gallons of water per foot of casing. The height of the water above the pump when it is not operating, multiplied by the gallons of water per foot of casing approximates the amount of available storage within the well casing.

How many feet Should a well be dug?

In order to allow for maximum ground filtration to remove impurities, your well depth should be at least 100 feet. As a general rule, the deeper you drill, it’s more likely that there will be minerals present.

What is better well water or city water?

As a natural source from the Earth, well water automatically tastes better than city water. Well water is also healthier because it’s full of minerals and isn’t treated with harsh chemicals. … Because of this, city water has a longer, more intense cleaning process that causes more problems than benefits to our health.

How is casing setting depth determined?

Two main factors determine the depth of the casing shoe, namely, the fracture pressure and the pore pressure. A third factor is the lithology, because it is desirable to place the casing shoe in a competent shale section. Methods to predict fracture gradients for deeper wells already exist.

How does a casing hanger work?

The subassembly of a wellhead that supports the casing string when it is run into the wellbore. The casing hanger provides a means of ensuring that the string is correctly located and generally incorporates a sealing device or system to isolate the casing annulus from upper wellhead components.

What does casing grade mean?

A system of identifying and categorizing the strength of casing materials. … The casing grade P-110 designates a higher strength pipe with minimum yield strength of 110,000 psi [758,422 KPa]. The appropriate casing grade for any application typically is based on pressure and corrosion requirements.

Can a borehole casing be removed?

Ream the borehole if the casing breaks below the ground surface to break the casing into small pieces that will exit the borehole with the soil cuttings as the augers rotate. Drillers may manually pull very shallow well casings from the ground without the use of a drill rig.

Can PVC be used for well casing?

PVC well casing and drop pipe have gained broad acceptance since their introduction almost 40 years ago. Today, due to its outstanding physical and mechanical properties, PVC is the predominant and preferred material used for water wells.

How did they dig a well in the old days?

Historically, dug wells were excavated by hand shovel to below the water table until incoming water exceeded the digger’s bailing rate. The well was lined with stones, brick, tile, or other material to prevent collapse, and was covered with a cap of wood, stone, or concrete.

Should I cover my well head?

DO NOT use any well coverings. Even though the sight of your wellhead may not be your favorite thing, you should not cover it up with any fake rocks, gravel, treated wood, or wishing wells.

How do you know if your casing is leaking?

The conventional technology to detect leaks is the temperature survey, which identifies either up flow or dumping leaks. The method is executed on quarterly basis to identify any casing leaks in a timely manner.
