Venturi masks

Which oxygen device is best for COPD?

The venturi or air-entrainment mask is a high flow device that delivers a fixed oxygen concentration of 24% to 50%. This device is appropriate for patients who have a hypoxic drive to breathe but also need supplemental oxygen; for example, those with chronic obstructive pulmonary disease (COPD).

Why is venturi mask used for COPD?

Venturi masks, calibrated to deliver Fio2 between 24% and 50%, are most useful in patients with COPD because the Po2 can be titrated, thus minimizing the risk of CO2 retention. Oxygen saturation of hemoglobin of approximately 80% to 90% can be achieved with nonbreathing masks.

Is non rebreather mask good for COPD?

In severely hypoxemic patients with COPD, O2 may be delivered using a non-rebreathing mask with a target O2 flow rate of 10–15 L/min. Arterial blood gases must be analyzed regularly.

What is a normal oxygen level for someone with COPD?

Anything between 92% and 88%, is still considered safe and average for someone with moderate to severe COPD. Below 88% becomes dangerous, and when it dips to 84% or below, it’s time to go to the hospital. Around 80% and lower is dangerous for your vital organs, so you should be treated right away.

Which is better oxygen mask or nasal cannula?

Average SpO2 with mask on was 98% (range 96.1-99.9%), with mask off 95% (range 89.8-98.8%) and with cannula 97% (range 90.8-99.3%). We conclude that nasal cannulae are more likely to remain in position than face masks and maintain an adequate saturation in most patients.

Is portable oxygen good for COPD?

Oxygen has been a mainstay of treatment for patients with chronic obstructive pulmonary disease and low oxygen levels. Previous research showed that long-term treatment with portable oxygen improves survival in COPD patients with severely low levels of blood oxygen.

Is 4 liters a lot of oxygen?

Room air is 21% O2. So if a patient is on 4 L/min O2 flow, then he or she is breathing air that is about 33 – 37% O2. The normal practice is to adjust O2 flow for patients to be comfortably above an oxygen blood saturation of 90% at rest. It is often, however, the case that patients need more oxygen for exercise.

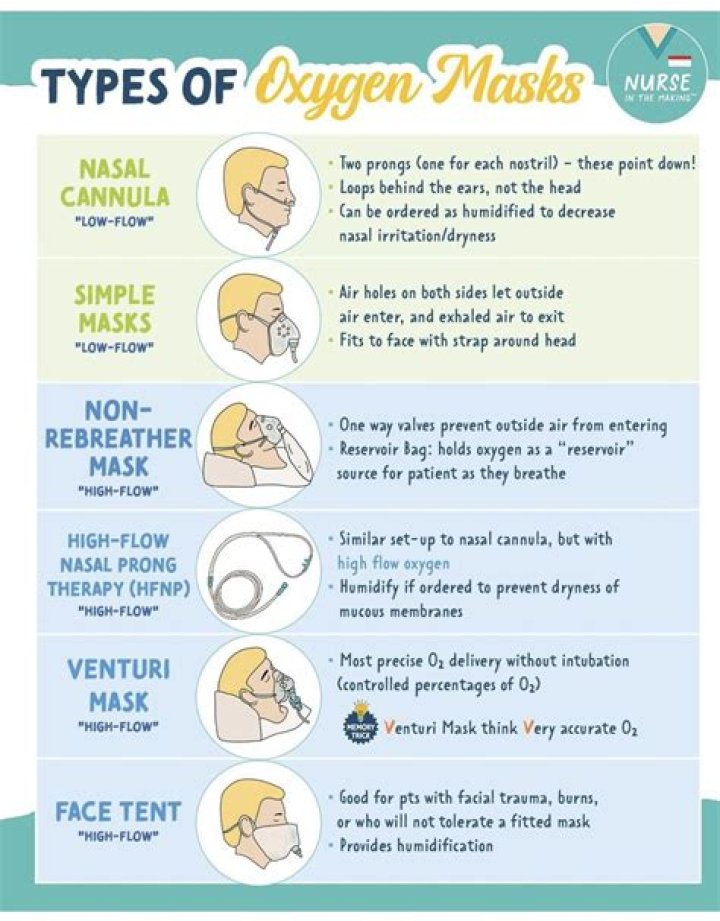

What are the different types of oxygen masks?

There are generally three basic styles of oxygen delivery devices based on their design: low-flow, reservoir and high-flow.

Why do you not give oxygen to COPD patients?

In some individuals, the effect of oxygen on chronic obstructive pulmonary disease is to cause increased carbon dioxide retention, which may cause drowsiness, headaches, and in severe cases lack of respiration, which may lead to death.

Article first time published on

Can COPD patients use nasal cannula?

The use of nasal cannulas is common for patients with chronic obstructive pulmonary disease (COPD). This is often patient choice, as cannulas allow them to eat, drink and speak, and are often more comfortable than masks when they are receiving oxygen for long periods of time.

How many liters of oxygen do you need for a non-rebreather mask?

A non-rebreather mask can deliver between 60 percent to 80 percent oxygen at a flow rate of about 10 to 15 liters/minute (L/min). They’re useful in situations when people have extremely low levels of blood oxygen, since they can quickly deliver oxygen to your blood.

Should I wear a mask if I have COPD?

Most people with a lung condition, even if it’s severe, can manage to wear a face mask for a short period of time, and shouldn’t worry if they need to wear one. Wearing a mask does not reduce a person’s oxygen supply or cause a build-up of carbon dioxide.

What is the difference between Venturi mask and oxygen mask?

One of the commonly used, conventional face masks for oxygen delivery is the ‘Venturi’ or air-entrainment system (1). While the Venturi mask is effective at delivering accurate oxygen concentrations (FiO2), it requires relatively high oxygen flow rates to achieve this.

What is the best sleeping position for COPD?

Sleeping in a slightly upright position helps reduce stress on your lungs. It also can reduce acid reflux symptoms.

Is 83 a good oxygen level?

Your blood oxygen level is measured as a percentage—95 to 100 percent is considered normal. “If oxygen levels are below 88 percent, that is a cause for concern,” said Christian Bime, MD, a critical care medicine specialist with a focus in pulmonology at Banner – University Medical Center Tucson.

Is a 98 oxygen level good?

In healthy patients, oxygen saturation levels lie between 96 and 98 %. Values below 95 % can indicate a health disorder and make it necessary to supply the patient with additional oxygen. If your oxygen saturation value is below 95 %, please consult your physician.

What oxygen level is fatal?

Oxygen saturation values of 95% to 100% are generally considered normal. Values under 90% could quickly lead to a serious deterioration in status, and values under 70% are life-threatening.

Does oxygen help with shortness of breath?

Oxygen therapy can help you by decreasing your shortness of breath or breathlessness. Oxygen won’t completely take away your shortness of breath, but it can help many lung disease patients feel less breathless during everyday activities.

Is high flow oxygen bad for COPD?

Conclusions. Thus, short-term use of HFOT is safe in both normocapnic and hypercapnic COPD patients. Lower oxygen levels were effective in correcting hypoxemic respiratory failure and reducing hypercapnia, leading to a reduced amount of oxygen consumption.

What is the maximum oxygen flow rate for a nasal cannula?

A nasal cannula is generally used wherever small amounts of supplemental oxygen are required, without rigid control of respiration, such as in oxygen therapy. Most cannulae can only provide oxygen at low flow rates—up to 5 litres per minute (L/min)—delivering an oxygen concentration of 28–44%.

What are the disadvantages of nasal cannula?

Oxygen is generally provided via face masks and nasal cannula. Several drawbacks are associated with these devices, which may limit efficacy and tolerance of oxygen delivery. Usually, oxygen is not humidified at low flow, and complaints, especially dry nose, dry throat, and nasal pain, are common.

What is a full oxygen mask?

From Wikipedia, the free encyclopedia. An oxygen mask provides a method to transfer breathing oxygen gas from a storage tank to the lungs. Oxygen masks may cover only the nose and mouth (oral nasal mask) or the entire face (full-face mask). They may be made of plastic, silicone, or rubber.

What are the 3 types of oxygen?

• Compressed gas systems.
• Portable oxygen concentrators (POCs)
• Liquid oxygen systems.

What is the danger of having a low oxygen flow through the Hudson mask?

Simple (Hudson) mask The flow should be at least 5L/min because lower flows can cause resistance to inspiration and rebreathing of exhaled CO2 .

What's the difference between oxygen masks?

Apart from the physical differences of each device, the primary difference is that face masks allow higher concentrations and rates of flow of oxygen. A simple face mask can deliver oxygen concentrations from 40 to 60% at flow rates between 10 to 12LPM.

How many liters of oxygen do you need for COPD?

Therefore, give oxygen at 24% (via a Venturi mask) at 2-3 L/minute or at 28% (via Venturi mask, 4 L/minute) or nasal cannula at 1-2 L/minute. Aim for oxygen saturation 88-92% for patients with a history of COPD until arterial blood gases (ABGs) have been checked .

What is the highest liter of oxygen you can be on?

Conventional low-flow devices (e.g., nasal cannula or simple face mask) provide 100% FiO2 at a maximum of 15 liters per minute. Even during quiet breathing, inspiratory flow rates are approximately 30 liters per minute, which exceeds supplemental oxygen flow (3).

Is 6 liters of oxygen high?

The normal flow rate of oxygen is usually six to 10 litres per minute and provides a concentration of oxygen between 40-60%. This is why they are often referred to as MC (medium concentration) masks, as 40%-60% is considered to be a medium concentration of oxygen.

Is BiPAP used for COPD?

If you have moderate to severe COPD, you may use a BiPAP machine at the hospital to help with sudden, intense symptoms. You can also use them at home to help with sleep. They’ll keep your blood oxygen levels up and remove carbon dioxide.

How does a Venturi mask work?

The Venturi mask uses the Bernoulli principle, described in 1778, in delivering a predetermined and fixed concentration of oxygen to the patient. … As the flow of oxygen passes through the constriction, a negative pressure is created. This causes the ambient air to be entrained and mixed with the oxygen flow (Fig. 6.14).
