Although expansion tanks can be installed on the hot side, we strongly recommend they be installed on the cold line, downstream of the shutoff valve.

Where should the expansion tank be installed?

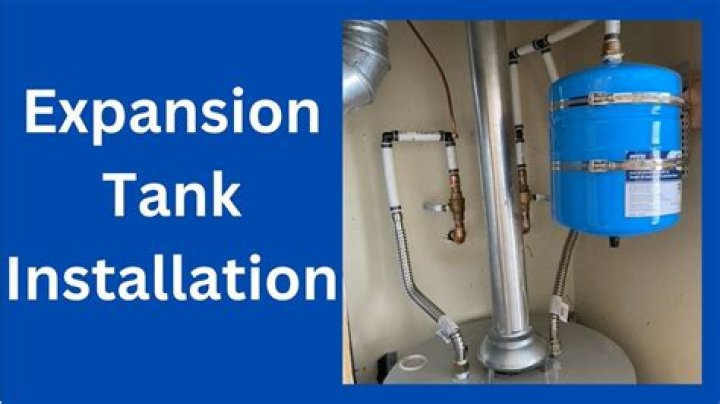

An expansion tank is generally installed directly above the water heater by means of a tee-fitting installed in the cold water delivery pipe. The expansion tank is usually installed vertically, though it is acceptable to install it horizontally if it is necessary because of space limitations.

Why is expansion tank on cold water side?

One expansion tank manufacturer states: “We recommend the cold water side installation because the tank is not insulated. When the expanded volume enters the tank, it will cool down. With the tank on the cold water side, this expanded volume will pass through the water heater before going out to the faucets.”

Does it matter which way an expansion tank is installed?

Expansion tanks can be installed in any direction. Whether oriented uprightly, horizontally, or even upside down, the expansion tank will function properly without any adverse effects. … Without proper support, the expansion tank could break off its mounting pipe — especially if the tank fails and fills with water.

On which side of the pump should an expansion tank be installed?

Location: The expansion tank should always be tied into the system on the suction side of the system pump, never on the discharge side of the pump. This is also called the point of no pressure change in the system.

Where does the expansion tank go in a hydronic heating system?

The typical location for the expansion tank is on the suction line of the hydronic hot water pump, near or on the fill line. Another possible location that is used less often is at the highest point in the system.

Can you install an expansion tank sideways?

Can a water heater thermal expansion tank be installed sideways/horizontally? Most expansion tanks are designed to be installed vertically (stem up or stem down). You can install one sideways, but it will shorten the lifespan unless it is designed and specified by the manufacturer for horizontal installation.

Is an expansion tank required for a water heater?

While expansion tanks are required by code in most closed-loop water heater systems, they have a reputation for failing. Common expansion tank issues include: Rubber Diaphragm Wear Out.

How do I know if my expansion tank is working?

The tank should be full of air and therefore sound hollow. If it makes a dull thud rather than a hollow sound, your tank is full of water and needs repair or replacement. You can also gauge this by feeling the tank, which will be cool where it’s holding air and warm where it’s holding water.

How do you check pressure in an expansion tank?

Once you completely open the valve, you can measure and note the pressure. You can also check your expansion tank’s pre-charge pressure by knocking on the side of the tank with your knuckles to determine if it’s full of air or water. Pre-charge pressure that’s too low may be indicated when the tank is full of water.

Article first time published on

What pressure should a expansion vessel be set at?

Expansion vessels, also known as expansion tanks, keep the pressure in a combi boiler stable while water heats and cools. They are typically located inside the boiler casing. The typical pressure a boiler system should be set to is 1 bar.

Where should pressure tank be?

The tank used should always be at the end of the small water line, or without water flowing past or through it. When the switch is placed in this location, the volume of water inside the bladder tank must change before the pressure switch will see any difference in pressure.

How close should an expansion tank be to a water heater?

The items which should be installed in sequence in the cold water line are (1) the EXPANSION TANK must be installed at least 18 inches away from the cold water inlet fitting on the water heater, (2) the PRESSURE GAUGE, and (3) the PRESSURE REDUCING VALVE, if required, see Figure 1.

What is the difference between an expansion tank and a pressure tank?

The most significant difference between expansion and pressure tanks is their functionality. An expansion tank handles water expansion and provides protection for water valves and heaters. On the other side, the pressure tank lengthens the lifespan of the pump.

Should an expansion tank be vertical or horizontal?

In general, the tank can be installed vertically above or below the plumbing, or horizontally. Typically, the tank is only required to be supported when installed in the horizontal position. Most smaller tanks are designed to be supported by the plumbing, when installed in the vertical orientation.

Can a hot water tank be installed horizontally?

Can a tankless water heater be set horizontally? Yes a tankless water heater can also be set horizontally. But for a tankless water heater to be installed, you’ll need a vent adapter.

What does a white expansion vessel do?

How Does an Expansion Vessel Work? The purpose of an expansion vessel is to help prevent overpressure situations with an unvented cylinder. As water is heated, it expands. The air within the expansion vessel compresses and absorbs additional pressure to help ensure that your water heater operates in a stable way.

How does a bladder expansion tank work?

A bladder expansion tank is a system which is used for heating and cooling purposes by absorbing the expansion force. It uses compressed air to adjust with the pressure changes by eliminating or accepting the water volume changes as it expands or contracts due to heating and cooling.

How does an expansion tank work on a water heater?

The expansion tank is designed to handle the thermal expansion of water as it heats up in the water heater, preventing excessive water pressure. If water pressure gets to high it can damage valves in plumbing fixtures, joints in supply pipes and the water heater itself.

What pressure should my boiler expansion tank be?

Expansion tanks are pre-charged with a 40 PSI air charge. If the inlet water pressure is higher than 40 PSI,the expansion tank’s air pressure must be adjusted to match that pressure but must not be higher than 80 PSI.

How do you bleed an expansion tank?

1. Turn off the valve that auto-fills the system from your cold water line.
2. If you have one, open a valve or bleeder on the top of your expansion tank. …
3. Open a drain valve and drain a suitable amount of water.
4. Close drain valve and re-open valve you closed in step 1.

Can an expansion tank explode?

In fact, the tank may explode! Thermal Expansion Can Cause Hot Water Heaters to Explode! A typical hot water heater in an “open” sys- tem has only a temperature and pressure (T&P) valve to prevent a rupture of the hot water heater (figure A). Open systems allow expanding hot water to push into the cold water line.

Do you need dielectric union on water heater?

Dielectric Unions If either the tank nipples or the pipes are galvanized steel, however, and you are connecting them to copper, you must use a fitting called a dielectric union to make the connection. … Both the hot and cold water pipes must have this fitting — it’s a code requirement.

How do I know if I have an open or closed water system?

If you see a backflow prevention device (like a check valve or pressure-reducing valve) connected to your main water shutoff valve, then you have a closed plumbing system. … Your water shutoff valve is usually located: On an outside wall.

Will a bad expansion tank cause low water pressure?

Before installing an expansion tank, measure the tank’s air pressure charge. When taken from the box, the air pressure in the expansion tanks will likely be lower than your home’s water pressure.

Why must the expansion tank always be located higher than the boiler?

protect the boiler from excessive water temperatures. … Why must the expansion tank always be located higher than the boiler? To allow air to be pushed up into the expansion tank when adding water into the boiler. The pressure relief valve _____.

How do I add air to my water pressure tank?

Drain the tank by opening the closest faucet. Check the tank’s pressure by placing an air pressure gauge on the air charging valve on the top of the tank. Add air if the pressure is more than 2 psi below the pump cut-in pressure. Use caution when using an air compressor or air pump.

What is expansion tank fill pressure?

Most expansion tanks come pressurized to 12 – 40 psi, but before you install the tank you have to match the system pressure. Start by removing the protective cover from the air valve on the tank. Use a tire gauge to check the pressure.

Where should a pressure switch be installed?

Except for special installations such as constant pressure water pump systems in-well systems that do not use a conventional water pressure tank or water storage tank, the pressure control switch should be located as close to the pressure tank as possible.

Where is the pressure switch located on a well pump?

You’ll find the pressure switch mounted on a 1/4-in. tube near the pressure tank. It’s what senses when water pressure has dropped to the point where the pressure tank requires more water. The switch then powers up the well pump.

Where is end of line pressure switch installed?

This switch must be fitted at the end of the main line or at the end of a particularly important secondary line And is electrically connected to another pressure switch mounted on the other end of the line.
