You can look up the recommended footing size, based on the size and type of house and the bearing capacity of the soil. As you can see, heavy houses on weak soil need footings 2 feet wide or more. But the lightest buildings on the strongest soil require footings as narrow as 7 or 8 inches.

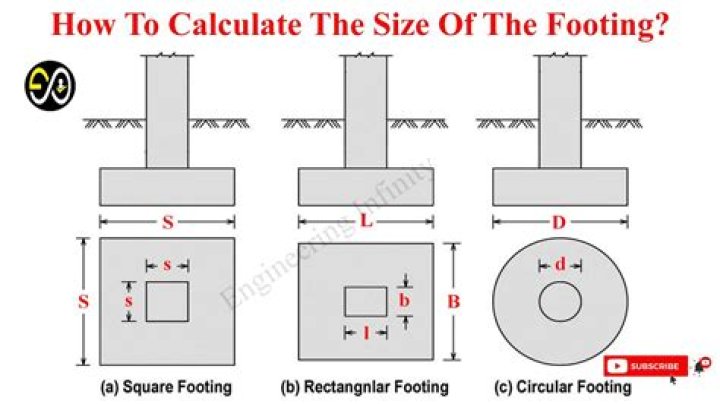

How do you know what size footing to buy?

1. Determine the width and length of the cement slab in inches.
2. Divide the width by 12 to convert it to feet. …
3. Divide the length by 12 to convert it to feet. …
4. Determine the depth or thickness that is required for the footing in inches. …
5. Multiply the width by the length and then by the depth.

How deep should footings be for a 3 foot wall?

For a wall that will be higher than 750mm make the footing three times the thickness. All footings should be a minimum of 150mm (6″) in depth, with the bottom 350 – 400mm (14-16″) below ground level on most soils. For clay soil however, thicker and deeper footings should be used.

How deep and wide does a footer need to be?

Footers must be a minimum of 24 inches deep. There must be a minimum of 6 inches of concrete in the footer, 2 story home-8 inches deep. wide).

How deep should footings be in clay?

Seasonal changes affect clay soils – causing them to swell in winter and shrink in summer. That’s why there are minimum foundation depths for each type of clay. Strip, trench fill or pad foundations must be cast at a minimum of 750mm in low plasticity clays, 900mm in medium, and 1000mm in the highest risk areas.

How deep should a wall footing be?

Start digging at the lowest part and go down until firm ground is found. For a light garden wall, a trench 30 cm (12 inch) deep should be sufficient if the soil is firm and well drained. But on unstable or weak ground, make it 46 cm (18 inch) deep.

How thick should concrete footings be?

The minimum thickness for pier footings is 8 inches or 1-1/2 times the length of the footing projection from the pier, whichever is greater. (HORIZONTAL). Reinforce footings when the projection on each side of the wall, pier, or column exceeds 2/3 of the footing thickness, or when required because of soil conditions.

Does a 2 foot retaining wall need drainage?

These walls need a drainage system regardless of the wall height. If there are poor draining soils such as clay behind the wall, there needs to be drainage incorporated the wall system. Clay when wet is very weak, so it is essential to provide a way for water to escape from behind the wall.

Do I need rebar in footings?

Footings, that sit on undisturbed soil or sand or multiple combination of this and that natural material, don’t require rebar. Vertical walls and posts that do require rebar, the steel rods provide both remarkable lateral ductile strength while over many decades become the weakest link.

Can you use breeze blocks as footings?

No. A concrete slab is reinforced with steel and anchored to the earth, which means it resists falling apart and moving across the surface. Concrete blocks will separate and move independently, which is bad for your house.

Article first time published on

Why is clay bad for foundations?

Soils rich in clay and silt have the greatest potential to damage a foundation. Clay absorbs water easily, expanding in volume as it becomes more saturated. So-called “expansive clays” can cause foundations to crack, heave and shift.

Can you build on sand?

4 Answers. You don’t construct houses on sand. Sand can’t be compacted and, as such, will never be a solid piece of earth to place a foundation on top of. Houses that are built on beaches are typically built upon concrete piers which go down to solid earth under the sand.

How deep do foundations need to be?

Generally a depth of 700mm is acceptable, as long as the ground has adequate bearing capacity. If the water table is high (for instance if the gravel is submerged), the bearing capacity will be halved, so it’s important to keep the foundations as high as possible.

Do you put gravel under footings?

You do need gravel under a concrete slab, footing, or patio. Gravel provides a solid foundation for your concrete as it can be compacted. It also improves drainage, preventing water from pooling beneath the concrete.

How deep should a concrete footing be for a retaining wall?

The general rule of thumb is to bury about one-eighth of the height of the wall. For example, if your wall will be three feet (36 inches) tall, the first course of blocks should start five inches below soil level. The gravel base should start three inches below this.

How deep do foundations need to be for a retaining wall?

Type of wallWall heightDepth of concreteSingle-skinUp to 1m300mmDouble-skinUp to 1m150mmDouble-skinOver 1m, up to 2m375-450mmRetaining wallUp to 1m150mm-300mm

How long should a footing cure before laying block?

Assuming you are using 3,000-psi concrete for the footings, you should be safe installing the anchors after 28 days in most circumstances. But there are a few things that can greatly alter the “normal” rate of strength gain: concrete temperature and the use of fly ash or admixtures.

How deep should footings be for a garage?

“For a single-story garage we look for an 8-inch foundation wall,” says Farrell. “A two-story structure would require at least a 10 inch foundation wall.”

Where should rebar be placed in a footing?

Placement of Rebars It is a general rule that reinforcements should be placed at the tension side at the bottom of the footing. In a square footing, rebars are placed uniformly in both directions. ACI code requires that the rebars be placed not more than 18 apart.

Does a 4 foot retaining wall need drainage?

The design and performance of most retaining walls are based on keeping the area behind the wall relatively dry. … Any reinforced wall or walls over 4 ft. (1.2 m) in height or with slopes or other surcharges above the wall will need a toe drain.

Can you use sand as a base for a retaining wall?

To keep the blocks on your retaining wall level and structurally sound, you need a base layer of several inches of well compacted, sharp gravel. … Be sure to use coarse builder’s sand, and tamp it down firmly to keep the sand from shifting and settling after the wall is built.

Do I need a French drain behind a retaining wall?

If you’re building a retaining wall, add a French drain behind the first course of stones or blocks. Otherwise, water moving down the hill will build up behind the wall and undermine it. The pipe should rest on the same compacted gravel base or concrete footing that supports the wall.

Can I use concrete block for footings?

Ensure a solid footing. Footings should be a minimum of twice the width of the concrete block (i.e., a typical 8x8x16 block would require a 16-inch wide footing) and extend below the frost line. NOTE: it is important to check local building codes for construction requirements in your area.

Can you use cinder blocks as footers?

Block foundations use cinder blocks (8 x 8 x 16 inches) that are stacked on each other and cemented in place with mortar. The process starts on the top of the footings with each row forming its own course. The blocks are then reinforced with rebar placed vertically in the holes or cells and filled with concrete.

What blocks do I need for footings?

• Airtec Standard or Airtec Seven Wall Blocks or Foundation blocks.
• Ultralite Concrete blocks of 7.3N/mm² compressive strength or above.
• Insulite Concrete block of 7.3 N/mm² compressive strength or above.
• Dense Concrete blocks of any strength.

Do foundations need a level?

Foundations should be placed below the level where annual seasonal movement would be expected to occur. This level varies according to the volume change potential (VCP) of the soil i.e: High VCP = 1.0 m minimum depth, Medium VCP = 0.9 m minimum depth, Low VCP = 0.75m minimum depth.

How deep should footings be for a one storey extension?

“The depth depends on what the ground is like you have to dig to solid ground. For a single storey building strip foundations will typically be 450mm wide and at least 200mm deep, and for two storeys 600mm wide and 200mm deep.”

What is the best soil type for foundations?

Loam is a good soil for supporting a foundation, as long as no miscellaneous soils find their way onto the surface. Rock – Types such as bedrock, limestone, sandstone, shale and hard chalk have high bearing capacities. These are very strong and good for supporting foundations because of their stability and depth.

What is the best ground to build on?

Loam. Loam is the best soil type for construction due to its ideal combination of silt, sand, and clay. It combines the best of all their qualities into the ideal balance for supporting a foundation. Loam generally does not shift, expand, or shrink drastically and handles the presence of water very well.

What do you put around the foundation of a house?

Spread 3 inches of fresh topsoil over the surface and till it in to the existing soil. Spread an additional 3 inches of topsoil and rake it into a smooth surface, sloping it away from the house. Lay a 4-foot carpenter’s level on the ground perpendicular to the house with one end butting up against the foundation.

Can I pour concrete on sand?

Simply put, sand isn’t sturdy enough to work well as a subbase for something like a driveway. … It is also difficult to maintain a level sand surface when pouring concrete, and therefore difficult to maintain a uniform thickness of the concrete slab.
