Generally, two sizes of user-replaceable fuses are found: the 1/4” x 1-1/4” and 5×20 mm. Each is available in a variety of volt and amp ratings. There are two basic types of fuses available for appliances and consumer electronics: fast-acting or time-delay.

How many sizes of fuses are there?

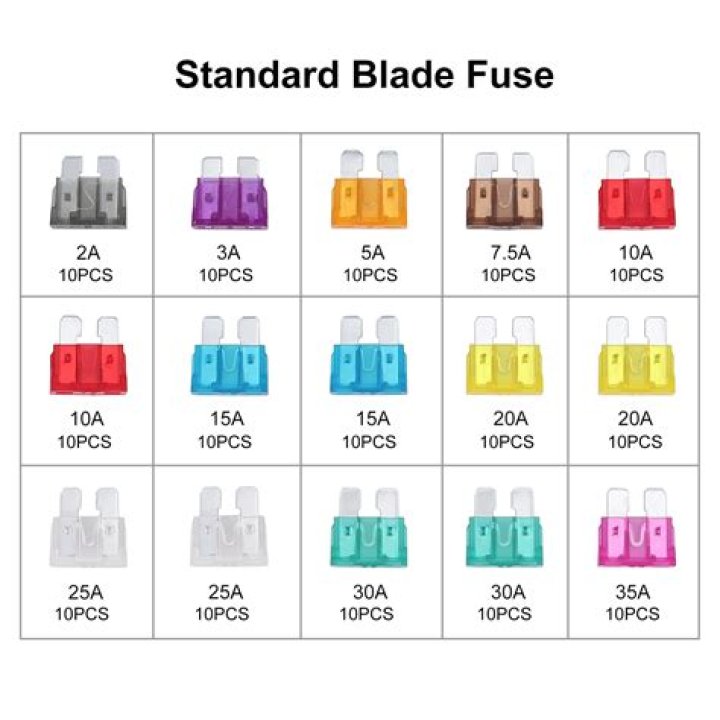

There are 4 main types of fuses: Micro, Mini (APM, ATM), Standard (APR, ATC, ATO), and Maxi (APX). Each fuse can be color coded with the appropriate amperage rating on top.

How do I know what size fuses to use?

B Calculate MINIMUM FUSE AMPERAGE by multiplying product amperage rating by 125%. Minimum fuse amperage provides more protection for the wire but may result in nuisance blows. Example: 80A x 125% = 100A. C Choose FUSE AMPERAGE near the middle of this range.

How do you size a fuse?

Find the size of fuse by multiplying the amps required by the device (2) by 1.5. 2×1.25 = 2.5 then we will round up to the nearest fuse size (in multiples of 5 amps) which would call for a 5 amp fuse. Cross Reference that fuse size to verify that it’s below the Maximum fuse size called out by this chart.

Why are there different size fuses?

The primary difference between the various types of blade fuse is the size, and as a general rule, larger fuses are typically used for higher current applications. As a result, you must ensure the fuse you select has the right current rating for the equipment.

What happens if you use a smaller fuse?

A fuse of a lower rating doesn’t cause any damages as no overcurrent occurs, but it results in unwanted power interruptions and causes the inconvenience of replacing or resetting the fuse very often. … Then the fuse will not blow out even the current rises above the permitted value.

What are the 3 types of fuses?

• DC Fuses.
• AC Fuses.
• Cartridge Fuses.
• D – Type Cartridge Fuse.
• HRC (High Rupturing Capacity) Fuse or Link Type Cartridge Fuse.
• High Voltage Fuses.
• Automotive, Blade Type & Bolted Type Fuses.
• SMD Fuses (Surface Mount Fuse), Chip , Radial, and Lead Fuses.

What fuse is for cigarette lighter?

What is the cigarette lighter fuse called? The fuse for the cigarette lighter may be listed as: 12v Power point. 12v Outlet.

Can I use a 30 amp fuse instead of 20?

Replacing a 20-amp fuse with one rated at 30 Amp is dangerous because it may not blow soon enough and damage an electrical component or start a fire.

What types of fuses are used in houses?

Types of Fuses Fuses for residential use are of two types: screw-in or cartridge. A screw-in fuse is small and round, with a glass body that protects the fusing element (a thin metal strip) and a conductive metal base that screws into the fuse box, much like a light bulb.

Article first time published on

What are 13 amp fuses used for?

Plugs for appliances rated between about 700 watts and 3000 watts (the maximum rating of a wall socket) should be fitted with a 13-amp fuse (coloured brown). For example: 13A Fuse – Washing machine, dishwasher, microwave, kettle, toaster, iron.

What's the difference between ATM and ATC fuses?

An ATM fuse is considered to be a mini fuse and it came out in the early 1990s. The only difference is it is smaller than an ATC fuse in actual size. It generally cannot be used in a fuse block that is made for an ATC fuse, as it will not fit in properly.

What size fuses for 60 amp disconnect?

You will find that a 60amp disconnect uses the large fuses that are only available in 40amp and above, although you can use the smaller fuses with a reducer. 30 amp disconnects are not uncommon and should be available any big box store.

What are the two general types of fuses available?

Fuses can be divided into two major categories, AC fuses, and DC fuses.

Can I use a circuit breaker instead of a fuse?

A circuit breaker can be used and an ON/OFF switch. A blown fuse can be easily replaced with the wrong size, or even jerry-rigged (using a wire or small copper bar to replace the fuse) creating a safety issue. … A circuit breaker can provide ground fault protection, a fuse cannot.

What are the things to be considered when replacing fuses?

Proper Fuse Replacement Usually, there’s an amperage and voltage rating marked on the fuse. If you aren’t sure of the size, use the smallest sized fuse. If it’s a smaller size, it’ll blow. Whereas, if the fuse is too big, it won’t protect from excessive currents and can cause safety hazards.

Can I use a 3 amp fuse in place of a 1 amp fuse?

If you replace a fuse with a higher amp one it will work but create an unsafe circuit. It could cause a failure of the device burn it up, start a fire. The fuse is designed as a safety device. It should not only be the correct amperage but also the correct voltage and fast or slow blow.

Is it OK to use a bigger fuse?

Do not replace a blown fuse with one that has a higher amperage rating. The fuse has a specific amperage rating because it is intended to be the weak link in the circuit to protect the electrical components. A blown fuse indicates excessive current has entered the circuit.

Is it OK to use lower amp fuse?

Do not use a fuse with a lower rating— don’t put a 20 amp fues in a 30 amp circuit–because it probably will blow prematurely. Conversely replacing a 20-amp fuse with one rated at 30 amps is dangerous because it may not blow soon enough and damage an electrical component or start a wiring fire.

What happens if you replace a 15 amp fuse with a 20 amp fuse?

It would not be a good idea to replace a 15 amp fuse with a 20 amp fuse. If you do and you actually load to circuit to more than 15 amps, you will shorten the life of the insulation and increase the risk of a fire.

Can you put 20 fuses in a 15?

The 15 amp slot is designed for handling current upto 15 amps so if you put a 20 amp fuse in a 15 amp slot and draw a current greater than 15 amps there will be heating and other issues like molten insulation you can put a 20 amp fuse only if u know that u are not going to draw more than 15 amps. Yes.

Can I replace a 15 amp fuse with a 10 amp fuse?

Can I use a 10 amp fuse in place of a 15 amp in my car? – Quora. You can, it will may immediately blow, but it won’t hurt anything other than the fuse.

What size fuse do I need for a 12V cigarette lighter?

Individual 12 volt accessories usually have fuses inside their cigarette plugs that are appropriately rated for the particular accessory. The fuse in the plug will normally blow before the 20 amp fuse does. The 20 amp fuse protects the wiring between the battery and the socket in case a short develops there.

What fuse do I need for 12V?

if the device load is known in watts, divide the wattage by voltage-(i.e 100watts divided by 12v = 8.3 amps) -use 10 amp fuse.

Why do my fuses keep blowing?

When a circuit breaker regularly trips or a fuse repeatedly blows, it is a sign that you are making excessive demands on the circuit and need to move some appliances and devices to other circuits. Or, it may indicate that your house has too few circuits and is in need of a service upgrade.

What size of fuses should I use in a house?

A 15-amp screw-in fuse is typically used for household lighting and receptacle circuits wired with 14-gauge wire. A 20-amp screw-in fuse is generally used for outlet and appliance circuits wired with 12-gauge wire.

Are screw-in fuses legal?

But the National Electrical Code (NEC) has safety standards for old screw-in type (Edison) fuse panels that are still in use. … Edison-type fuse bases are not allowed for 240-volt circuits. [240.51(A)] Type-S fuse adapters screw into place over an existing Edison-type base, and only allow a particular fuse rating.

What does the T stand for on a fuse?

T = slow burn fuse. F = fast acting fuse. TT = very slow burn fuse. FF = very fast acting fuse.

Can I replace a 3A fuse with a 13A?

A 3A fuse is the safest to use and should be used for appliances at 700w or less. Appliances rated above 700w should use a 13A fuse. Be extra cautious when using a 13A fuse and try using a 3A fuse if and when it’s possible.

Can I use 13A fuse in 10A?

If you replaced it with 13A fuse, it will allow current more than 10A, so it may possible that other components may get damage due excessive current flow than specified. If TV components can sustain up to 13 A current, you can replace it.

What are 5A fuses used for?

5A Fuse. Used mainly for lighting circuits.
