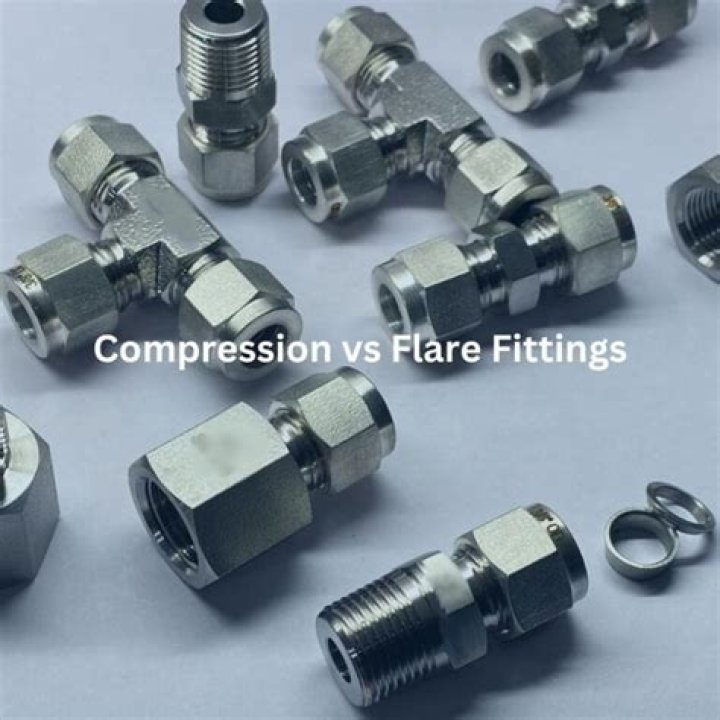

This fitting received its name because the thread is compresses the pipe tube inserted into it to seal it. Compression fittings have straight threads and are made of brass or plastic and are often used on soft copper pipe and small-diameter tubing. The angle stop under your sink is one example of compression threads.

Is a compression fitting NPT?

The fittings we sell may have compression or National Pipe Thread tapered ends (NPT). Compression ends are made for a tube which has a specific outside diameter (OD). For example, a ¼” compression fitting is designed to connect a section of tubing which has an OD of ¼”.

What thread is on a 22mm compression fitting?

The threads on compression fittings are usually 1/2″ BSP and 3/4″ BSP (for the 15mm and 22mm fittings).

What thread is a 1/4 compression fitting?

Midland 18-035 Brass Compression Nut, 1/4″ Size, 7/16″-24 Thread, 0.50″ Hex.

What is the difference between MIP and MPT?

MPT stands for Male Pipe Thread and MIP stands for Male Iron Pipe which both indicate a male fitting with NPT threads.

What are the different thread types?

• UN/UNF.
• NPT/NPTF.
• BSPP (BSP, parallel)
• BSPT (BSP, tapered)
• metric parallel.
• metric tapered.

Can I use brass compression fittings on steel pipe?

Compression fittings are not recommended to be used with steel tube. When using compression fittings with any type of plastic tubing, a brass insert must be used for further support. … No matter the application required, there is most likely a compression fitting that will work perfectly.

What is a ferrule fitting?

A pipe ferrule is one of the types of pipe fitting which are manufactured by using various materials. … A pipe ferrule includes a circular clamp to connect together and join wires, fibers, or posts. It is a type of ring or cap that is connected to an object to protect from splitting, damage, or wear.

What is a compression fitting used for?

A compression fitting is a fitting used in plumbing and electrical conduit systems to join two tubes or thin-walled pipes together.

What size is 3/8 compression thread?

ApplicationFinger tight assemblies, low working pressure laboratory use on plastic tubingTemperature-10°F – 180°FThread Size9/16″-18Tube Outer Diameter3/8″ TubeTypeInstrumentation Nut

Article first time published on

Is MIP thread the same as NPT?

Yes, NPT (national pipe thread) has the same thread dimensions as an MIP (male iron pipe) and FIP (female iron pipe).

What does IPS mean in plumbing?

Iron Pipe Size (IPS) is an old pipe sizing system that came was started in the early 19th century. It remained in effect until after WWII and was mainly used in the US and UK. When IPS was introduced, pipes were cast in halves and welded together.

Is 3/4 BSP the same as 22mm?

If your ball valve is 22mm it is a copper compression fitting otherwise all screw threads in the UK even on 22mm metric fittings have 3/4 BSP threads.

What size thread is a 15mm isolation valve?

Washing machine isolation valve / tap with 15mm compression pipe connection on one end, 3/4 inch male BSP thread on the other (standard thread size for washing machine inlet hoses).

What does MHT mean in plumbing?

Common acronym designations have been adopted to easily describe the different types of fittings: MHT = Male Hose Thread. FHT = Female Hose Thread. MPT= Male Pipe Thread. FPT = Female Pipe Thread.

Is MIP pipe threaded?

MIP is Male Iron Pipe. As the Pure Water Gazette points out, sometimes FIP is called FPT or Female Pipe Thread. And MIP is called MPT or Male Pipe Thread. To make matters worse, sometimes they are referred to as NPT or National Pipe Thread.

Are FIP and NPT compatible?

Most pipe thread types are not interchangeable. NPT, MIP, and FIP work together but do not mate with any other types. … Many times, the fitting itself will tell you what thread type you need.

Do Copper compression fittings Work?

Compression fittings in the world of plumbing are very common. They are a safe way to connect copper pipe without the use of heat making them popular with DIY’ers. Many different types of valves, tees, connectors and utilities require compression fittings in order to make them water tight and safe.

What happens if you over tighten a compression fitting?

If proper tightening procedures aren’t followed, it’s possible for tubing or fittings to become deformed. … This, in turn, will constrict flow and thin the wall of the tubing. Subsequently, this increase of local pressure and weakening of the tubing will cause compression fittings to catastrophically release the tubing.

Are copper compression fittings reliable?

Although compression fittings are generally considered more reliable than threaded fittings, there are some potential problems. In general, compression fittings are not as resistant to vibration as soldered or welded fittings. Repeated bending may cause the ferrule to lose its grip on the tube.

What are the 3 basic thread types?

There are three standard thread series in the Unified screw thread system that are highly important for fasteners: UNC (coarse), UNF (fine), and 8-UN (8 thread).

What kind of thread is used for sewing?

Polyester/Cotton is a multipurpose weight (50) and suitable for all types of fabric including stretch. This is the most commonly used thread for most of your sewing.

What are the parts of a compression fitting?

Compression fittings are simple to install but require a wrench in most cases. They consist of three components: the sleeve, nut, and fitting body. All components work together to create a watertight seal.

Can I use compression fitting on plastic pipe?

Many, but not all, compression fittings are suitable for use with plastic fittings and pipe. … The connection should not need more than 2 full turns after the olive has gripped the pipe. Copper olives are preferable to brass olives. Ensure nut and olive are in place before inserting pipe insert.

What is the most common use of type B compression fittings?

Type-B or manipulative fittings: Installation of Type-B fittings require flaring or belling the tubing. In order to remove this type of fitting, a specialized pulling tool is often used for siding the nut and olive away from the pipe or tube. The type-B fitting is mostly used for gas lines.

What does NPT stand for in plumbing?

The best known and most widely used connection where the pipe thread provides both the mechanical joint and the hydraulic seal is the American National Pipe Tapered Thread, or NPT.

Is NPT same as FIP?

FIP Female Iron Pipe (interchangeable with NPT) FIP, Female Iron Pipe, or Female International Pipe- Similar to FPT, FIP connect NPT pipe together with internal threads. … Threads used with NPTF, has external threads for a dry-seal connection.

How do I know what size NPT I need?

To determine the NPT size, with a caliper, measure the diameter of the 2nd or 3rd thread on your pipe, fitting or valve as shown below. Find the caliper measurement in the chart and cross reference the nominal NPT pipe size. Don’t get confused, the actual measurement is not the same as the NPT pipe size.

What is a MIP adapter?

MIP typically stands for Male Iron Pipe (it might also refer to other building materials such as copper or steel). … The female fitting is threaded on the inside to accept a threaded male pipe fitting of equal diameter, whose threads taper down to create a tight seal.

What is MPT and FPT?

MPT and FPT are simply names for identifying the type of pipe thread for an application. MPT and FPT are both sub-types of NPT. National Pipe Threads (NPT) have tapered threads. NPT threads are used for joining and sealing pipe fittings in low pressure air or liquid applications.

What is MNPT fitting?

Hi Joey, mnpt stands for Male National Pipe Thread Taper (MNPT), sometimes called NPT or MPT. It means the threads are on the outside of the connector. … As others have said, it means Male National Pipe Thread, which is a Standard.
