Electrical conduit PVC’s main purpose is for use in electrical systems as a housing for electrical wires or cables. PVC conduit is often used in underground and wet location applications where electrical cables need to be protected.

Where can I use PVC electrical conduit?

PVC Conduit: Schedule 40 vs. The fittings (such as adapters and turns) are the same for Schedule 40 and 80.

Can you run PVC conduit in a house?

Some code-compliant PVC fittings can be used with ENT inside walls, floors, some ceilings or encased in concrete. Outdoor flexible nonmetallic tubing is strong, watertight, non-corrosive and weighs less. Metal or plastic boxes can be used with nonmetallic conduit. Always run a ground wire when using PVC conduit.

Can you use PVC conduit outside?

PVC conduit provides protection for electrical work that is buried underground. Out of the many conduit forms available, PVC conduit is considered best for outdoor applications. … Available in a variety of thicknesses or grades, PVC is well suited for direct burial or above ground work.

Can I run PVC conduit in garage?

Combining metal boxes and PVC conduit is fine, but unlike an all-metal system, PVC requires you to run a separate ground wire and bond it to each metal box or light fixture with either a screw or a special grounding clip.

Is it OK to run Romex in conduit?

Running Romex in a Conduit When using any non metallic wire outdoor, including Romex, it is a good idea to run it through a conduit. Yes, they can be used outdoors, it is better to be safe than sorry. We recommend using a conduit when running the wire underground.

How do I run conduit outside my house?

1. Step 1: Drill an opening in the wall.
2. Step 2: Bend and cut the conduit.
3. Step 3: Insert the conduit into the hole. …
4. Step 4: Install conduit supports.
5. Step 5: Pulling the wire through the conduit.
6. Step 6: Seal gaping holes in walls with caulk.

Does PVC conduit need to be glued?

Yes, an electrical PVC conduit needs to be glued properly with PVC solvent cement or water and insects could get in there to damage the electrical wires, especially if the conduit is buried underground.

What is the difference between white and GREY PVC?

Grey PVC is used as electrical conduit and is better suited for sunlight resistance. The fittings for this type of pipe are made to pull wires into and not intended for containing pressured fluids. White is for plumbing applications. Both use the same solvents and glues.

Can I use PVC conduit for service entrance?

Exposed — PVC conduit is permitted to be used for exposed work. PVC conduit used in an area subject to physical damage must be identified for the application [Sec. 352.10(F)]. Schedule 40 PVC conduit is permitted for exposed locations where not subject to physical damage.

Article first time published on

Can Schedule 40 PVC be used indoors?

Indoor Applications PVC Schedule 40 is approved to be used indoors. It can be used behind wall or on the surface of the wall (provided it’s not subject to physical damage).

Can you use plumbing PVC for electrical conduit?

Applications. Electrical PVC is not intended to be exposed to high pressure, as in water lines, and is not rated for use with high-pressure air. … Conversely, plumbing PVC should not be used for electrical conduit applications as it does not handle ultraviolet radiation well, and is of reduced rigidity.

Can you use conduit in a house?

Electrical conduits are primarily used to protect circuit wires that are exposed in exterior and interior environments. Conduits offer a layer of protection against moisture and damage. Moreover, you can use it in the unfinished areas, such as attics and basements.

Is PVC cheaper than EMT?

Aluminum EMT is much more cost-effective than either PVC – or steel, for that matter – and it’s just as strong and durable.

Does outdoor wiring need to be in conduit?

Generally speaking, yes, outdoor wiring needs to be in conduit to protect it from physical damage. Type UF cable needs conduit when exposed, no need for conduit on the buried sections.

Who is responsible for power line from pole to house?

The customer/owner is responsible for installing, maintaining and repairing all equipment beyond theservice connection point except for the electric meter. If you receive overhead electric service, your electric system con- sists of the following: 1. Electric Lines that run from the utility pole to your residence.

Can 12 2 Romex run in PVC conduit?

7 Answers. Yes, NM cable can be in conduit. In fact. NEC calls for it to be in conduit, when protection from physical damage is required.

Can Romex be exposed in garage?

No, you cannot expose Romex wires or non-metallic sheath wires in the detached garage or anywhere. Because it’s not safe to expose it on the outside. Besides, it goes against the National Electrical Code or NEC.

How often should Romex be stapled?

General Cable Support Runs of NM cable must be supported at least every 54 inches. 1 They also must be secured within 12 inches of an electrical box that includes a cable clamp or within eight inches of a box or enclosure without a cable clamp.

Can you use PVC for electrical?

Regular PVC pipe shouldn’t be used in electrical applications, and PVC conduit won’t work well in plumbing situations. But when you use them correctly, they are both effective and reliable.

Why is PVC conduit so expensive?

In fact, PVC prices went up three times in two months as a result of “a very tight market, a robust increase in demand from construction, significantly higher export prices, much lower availability, and the late-settling September ethylene contract price increase,” which only added to PVC production costs, according to …

Can you put PVC conduit in concrete?

The best time to run conduit is before your pour the concrete slab. This allows you to install the conduit under the slab in a location where it is well protected. PVC conduit is typically used for these applications because it is weather-tight and doesn’t corrode due to exposure to the acidic concrete.

How do you join PVC conduit?

When joining lengths of conduit, you simply solvent-glue the smooth end of one piece into the hubbed socket of another piece. Lengths of conduit can be cut with any saw, but the best way to cut PVC conduit is with a PVC tubing cutter, of the same type used to cut PVC plumbing pipe.

How do you connect PVC conduit to sub panel?

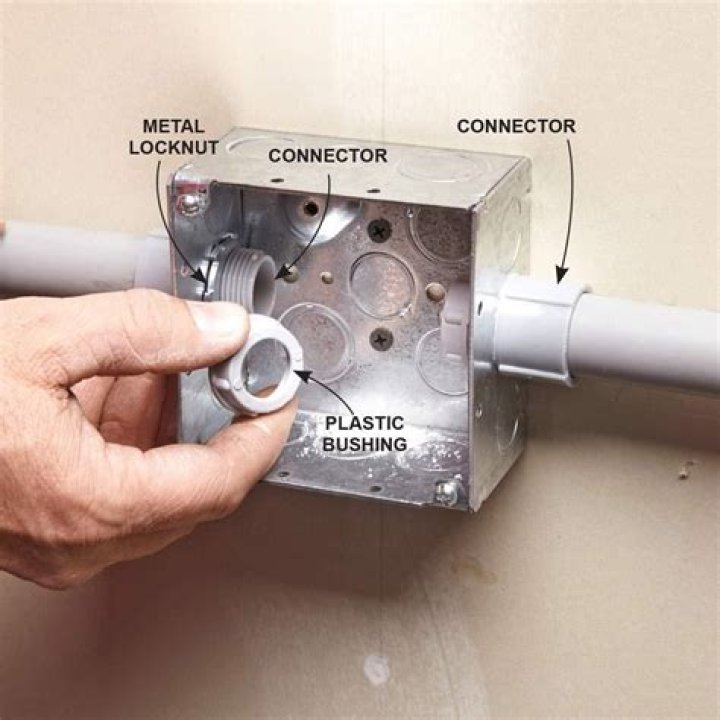

Insert the threaded PVC hub in the hole and screw on the hub’s lock nut with the raised side of the nut facing the side of the panel box. Tighten it securely using tongue and groove pliers. Screw the PVC end bushing on the hub and tighten with the pliers.

How often does PVC conduit need to be supported?

PVC must be supported every 3 ft. for trade sizes ½ inch through 1 inch. The support distance increases as the conduit size gets larger. For example, 2 inch PVC conduit can be supported every 5 ft; 6 inch PVC conduit can be supported every 8 ft.

Can Schedule 40 PVC be used outside?

1.2. 1 Schedule 40 rigid PVC conduit and fittings are for aboveground use indoors or outdoors exposed to sunlight and weather, and for underground use by direct burial or encasement in concrete.

Can Schedule 40 PVC be used above ground?

Schedule 40 PVC Conduit is used in walls, floors and ceilings in accordance with NEC 352. According to NEC 352 it can also be buried directly into the earth, encased in concrete, and used in areas exposed to direct sunlight. … It is not designed for use above ground or in walls, floors or ceilings.

Can I use PVC conduit in attic?

A cable into the back of the box should be fine. Unless subject to damage a sleeve should not be needed. You mentioned running more 12’s in the future,why not run the PVC from the meter into the attic into a “J” box and make your transitions up there,although an attic may not be the ideal place to work.

How long does PVC last in the sun?

As a general rule, PVC pipe will last 50 to 80 years in the sun. Interestingly, the sun does not affect PVC negatively in any way. The lifespan of PVC pipes is estimated at 50 to 80 years. So PVC pipe will last a long time in the sun.

Whats the difference between conduit and PVC?

PVC pipe and PVC conduit have different uses. PVC pipe is used primarily in plumbing and other pressurized systems. PVC conduit is used primarily in electrical systems. PVC pipe thus is used to carry water, while PVC conduit typically works as housing for wiring.

Do I need conduit in garage?

Many garages contain one or more walls made of concrete or already drywalled. Cable installed on these exposed surfaces has to be protected by conduit. We show EMT (electrical metallic tubing; Photo 7), but you can also use rigid PVC conduit.
